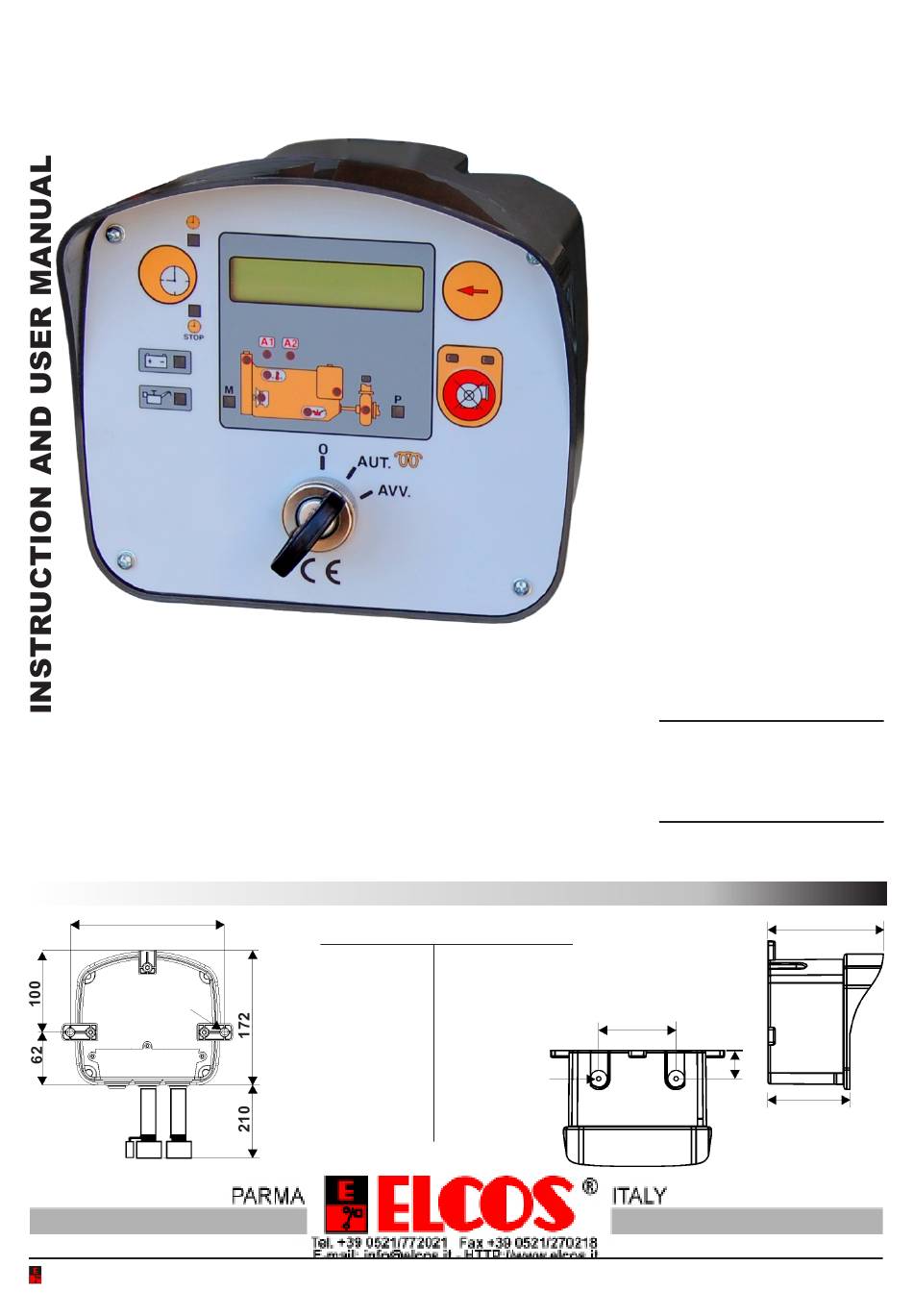

UNIT FOR CONTROL AND PROTECTION OF IRRIGATION
PROTECT THE MOTOR PUMP SETS BY STOPPING
THEM IN THE EVENT OF
• low oil pressure
• over-temperature
• belt breakage
• minimum fuel level
• available A1
• A2 (low diesel fuel pressure)
• low coolant level
• insufficient pump water pressure
182
Ø6,5
ELCOS SRL - Parma - EN - CEM-370 /1
MOTOR PUMPSET
TYPE CEM-370
DIMENSIONS
Fixing system
With two or
On request
three
with vibration
clamps
dampers fitted
on the top
part of the
control unit

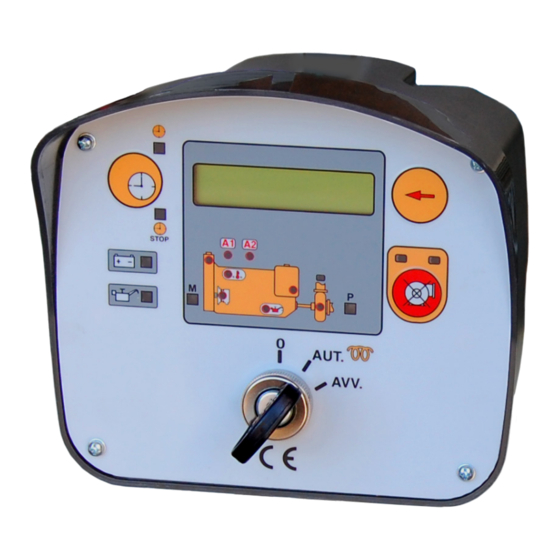

Complete with display for
displaying the following
functions:
- pump protection exclusion
- battery and oil lights
- protections intervention
- hour-meter
- timer
- fuel level indicator
- tachometer
- battery voltmeter
Assembly also on the
machine and in
the open air.
85,50
33
113,50
113,50
96
96
1
Advertisement
Table of Contents
Related Manuals for ELCOS CEM-370
Summary of Contents for ELCOS CEM-370
- Page 1 • insufficient pump water pressure DIMENSIONS 113,50 113,50 Fixing system With two or On request three with vibration Ø6,5 85,50 clamps dampers fitted on the top part of the control unit ELCOS SRL - Parma - EN - CEM-370 /1...
-
Page 2: Brief Instructions
• preheating (white/brown) • headlight (brown) • general alarm (red/green) Degree of protection: Box front IP54 Rear IP23 Connector IP20 Installation conditions for external use Temperature range -20 ÷ +60°C Weight 950 g ELCOS SRL - Parma - EN - CEM-370 /1... -
Page 3: Operation
- exclusion is obtained by keeping it pressed for at least 3 consecutive seconds; the function is indicated by the two intermittent lights - this exclusion is cancelled by pressing the push-button again or by turning the start key onto “ZERO”. ELCOS SRL - Parma - EN - CEM-370 /1... -
Page 4: General Alarm
Is activated with key in AUT the display shows the phrase PREHEATING The duration of the preheating action can be set. ENGINE Is indicated on the display when the action has ceased STARTING ELCOS SRL - Parma - EN - CEM-370 /1... -
Page 5: Wiring Diagram
The control unit has been designed to control the engine stop lever. stopping with an ELECTROMAGNET EXCITED IN DRIVE BLUE/BROWN To stop with SOLENOID VALVE cut and SOLENOID : to close the fuel. isolate the BLUE/BROWN lead. ELCOS SRL - Parma - EN - CEM-370 /1... - Page 6 TACHOMETER 700 RPM 1500 RPM via a portable tachometer. SETTING Press and wait for PROGRAMMED to be written. Press until you get the right indication on the display ELCOS SRL - Parma - EN - CEM-370 /1...
-
Page 7: Electromagnetic Compatibility
NOT SUITABLE FOR USE AS A CRITICAL COMPONENT IN EQUIPMENT OR PLANTS RESPONSIBLE FOR KEEPING PERSONS OR OTHER LIVING BEINGS ALIVE. YOUR ELECTRICAL TECHNICIAN CAN ASK US ANYTHING ABOUT THIS CONTROL UNIT BY TELEPHONING ONE OF OUR TECHNICIANS ELCOS SRL - Parma - EN - CEM-370 /1... -
Page 8: Ordering Data
SUPPORT FOR INSTALLATION ON BASE The support facilitates replacement of control units of type CEM-330 and CEM-350 type CRU-004 cod. 40493382 PA-100/00 (4-14 bar) code 00500226 PA-102/00 (2-5 bar) code 00500231 ELCOS SRL - Parma - EN - CEM-370 /1...
