ELCOS CIM250/10 Instruction And User's Manual

ELCOS CIM250/10 Instruction And User's Manual

Unit for control and protection of irrigation motor pumpset

Advertisement

Quick Links

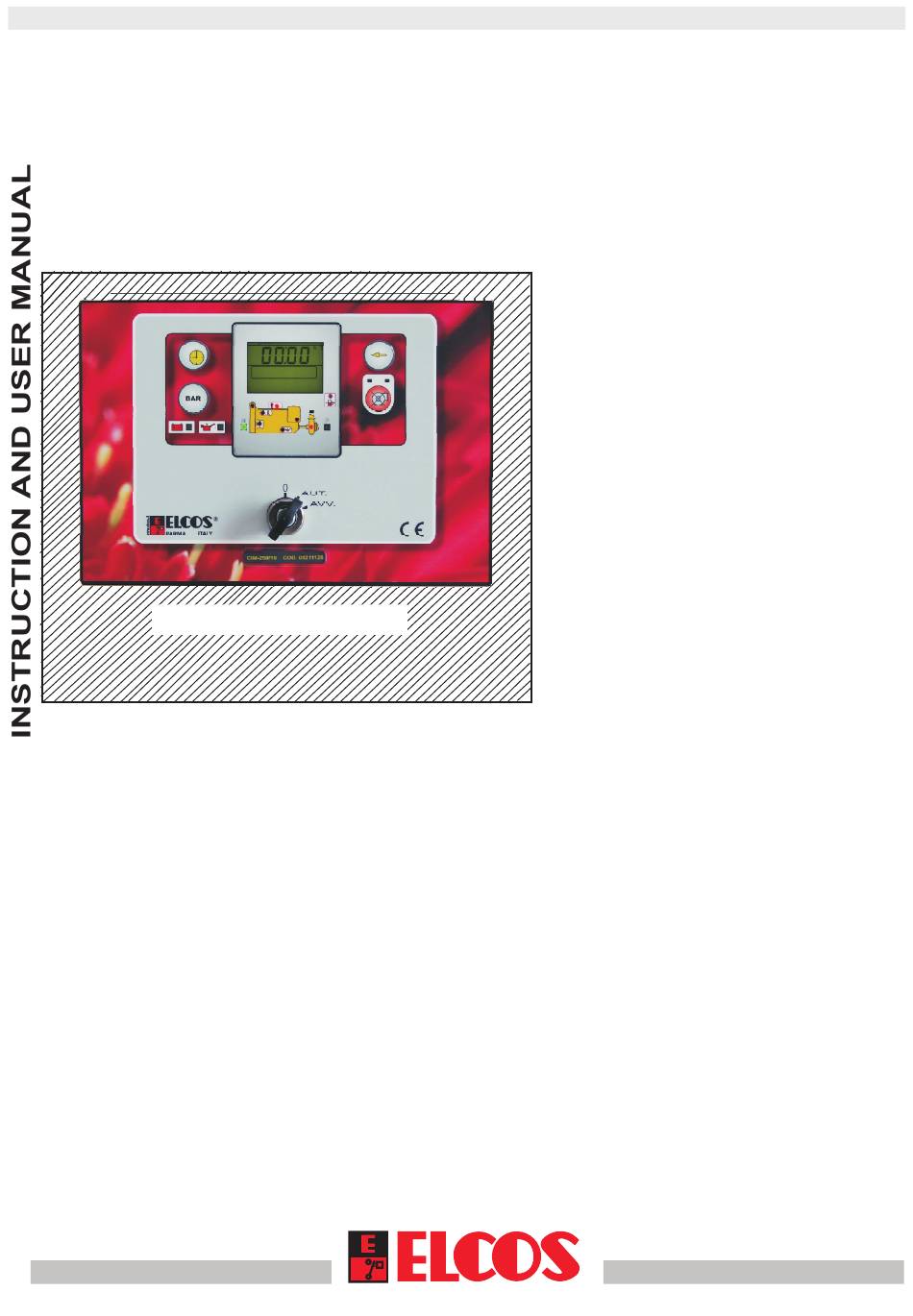

UNIT FOR CONTROL AND PROTECTION
OF IRRIGATION MOTOR PUMPSET
MOUNTING AT PANEL
PROTECT
motor pump sets by stopping them
in the event of:
• low oil pressure
• over-temperature
• belt breakage
• minimum fuel level
• low coolant level
• low pump water pressure
• pump water overpressure
• A1 available
• low fuel pressure
CIM-250/10 - EN
CIM-250/10
TYPE
MADE TO:
PARMA
Tel. +39 0521/772021
E-mail: info@elcos.it - HTTP://www.elcos.it
• By simply starting, it automatically
controls the motor pump
• Pump water electronic pressure switch
• Digital pump water pressure gauge
• Assembly also on the machine
and in the open air.
DISPLAY
on the panel the functions of:
• hour-meter
• oil pressure gauge
• water or oil thermometer
• tachometer
• pump water pressure gauge
• timer
• fuel level gauge
• pump protection exclusion
• battery and oil lights
• protections intervention
• emergency stop
®
ITALY
Fax +39 0521/270218
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CIM250/10 and is the answer not in the manual?

Questions and answers

Summary of Contents for ELCOS CIM250/10

  • Page 1 • pump water overpressure • pump protection exclusion • A1 available • battery and oil lights • low fuel pressure • protections intervention • emergency stop ® PARMA ITALY Tel. +39 0521/772021 Fax +39 0521/270218 E-mail: info@elcos.it - HTTP://www.elcos.it CIM-250/10 - EN...
  • Page 2: Brief Instructions

    BRIEF INSTRUCTIONS After starting, the motor pump protects itself automatically PUMP WATER PRESSURE IS DISPLAYED A1 AVAILABLE ENGINE OIL PRESSURE IS DISPLAYED PRESS TO SELECT THE DISPLAYED FUNCTION, ENGINE WATER OR OIL EACH TIME IT IS PRESSED, TEMPERATURE IS DISPLAYED THE INSTRUMENT INDICATED BY THE DISPLAY CHANGES.
  • Page 3 ADJUSTING THE PUMP WATER ELECTRONIC PRESSURE GAUGE (TRANSMITTER) It controls the pressure of the system, replacing the conventional pressure switch. PUMP PROTECTION No adjusting is required The protection of the pump is enabled when the PUMP PROTECTION ACTIVE information comes on, after the water pressure has been steady for 2 consecutive minutes and in any case after 10 minutes from starting of the engine.
  • Page 4: Installing The Control Unit

    INSTALLING THE CONTROL UNIT COOLANT LEVEL PROBE FOR RADIATORS WITH FOR RADIATORS WITH PLASTIC EXPANSION TANK METAL EXPANSION TANK WARNING IF THE FUNCTION - LOW COOLING LIQUID LEVEL IS NOT USED: CONNECT YELLOW/ ORANGE WIRE TO EARTH YELLOW/ SCREW ORANGE ELECTRODE ELECTRODES TO REPLACE THE FUSES,...
  • Page 5 INSTALLING THE CONTROL UNIT WIRING DIAGRAM TO CONNECT THE EMERGENCY BUTTON see page 4 (connector C) FROM 15/54 OF START KEY, 3A MAX USABLE FOR HEADLIGHT OR AUXILIARIES CONNECTOR CONNECTOR 3A MAX RED/GREEN YELLOW/ORANGE CONNECTOR ORANGE/ BLUE INDICATOR RESERVE INSULATE POSSIBLE CABLES NOT CONNECTED...
  • Page 6 OPERATION CONTROLLING THE CONNECTION OF THE PUMP WATER ELECTRONIC PRESSURE GAUGE (Transmitter) Turning the key to the AUT position stops the electronic pressure gauge. Control is activated 1 minute after the completion of the starting pulse. DISCONN'ED Intervention is highlighted by the relevant indicators flashing warning light and stops the motor pump after 2 seconds.
  • Page 7 S.r.l. Via Arandora Star, 28/a-43122 PARMA ITALIA OF IRRIGATION MOTOR PUMPSET Tel. +39 0521/772021 Fax +39 0521/270218 E-mail: info@elcos.it CIM-250/10 HTTP://www.elcos.it TYPE Only for starting and surveillance of the diesel motor pump and stops it if there are anomalies in the parts controlled by probes.
  • Page 8: Technical Data

    DIMENSIONS TECHNICAL DATA BATTERY VOLTAGE SUPPLY 12 Vdc 24 Vdc VOLTAGE SUPPLY ÷ 32V CIRCUIT LOADING WITH KEY AT ZERO 13 mA at 12 V 9 mA at 24 V MAX LOAD OF THE OUTPUT: STOPPING) YELLOW STARTING MOTOR) BLACK 40 A GENERALALARM) RED/GREEN AUXILIARY) BROWN...
