Installation & Use Manual

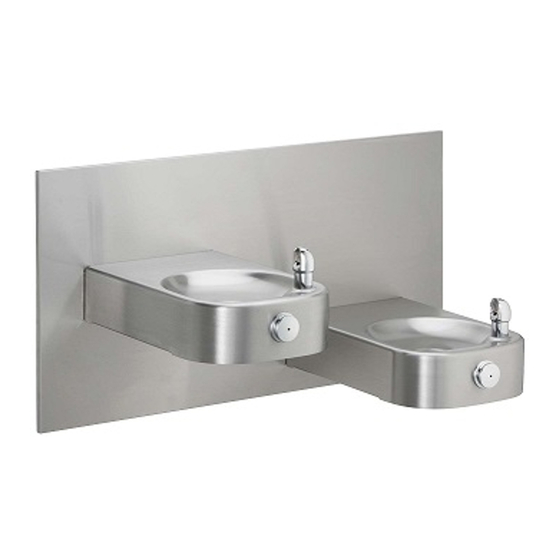

Heavy Duty 14 Gauge Barrier Free Slimline
EHWM14FP
INSTALLER
Halsey Taylor Fountains are among the easiest to install Fountains on the market today. To assure you install
these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING
THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL,
AND OTHER APPLICABLE CODES. After installation, leave these instructions with the Fountain for future
reference. This Freeze Resistant Fountain is shipped in two separate cartons. The second carton(s) contains
the Freeze Resistant Package(s) LKFRB1 that are installed on an interior heated wall. The interior space must
maintain a minimium temperature of 50° F (10° C). Refer to the Freeze Resistant Package for the rough-in
dimensions for installation.
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES
IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM
THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN
ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE
WATER. THIS CONDITION IS AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN
FITTINGS PROVIDED BY THE INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE
FOUNTAIN FROM THE BUILDING PLUMBING SYSTEM.
EHWM14FP*A
Freeze Resistant Fountains
IMPORTANT
IMPORTANT! INSTALLER PLEASE NOTE.
EHWM17FP*A
EHWM17FP
PAGE 1
®
98402C (Rev. C - 02/18)
Advertisement
Table of Contents
Related Manuals for Halsey Taylor EHWM14FP A Series
Summary of Contents for Halsey Taylor EHWM14FP A Series
- Page 1 EHWM17FP INSTALLER Halsey Taylor Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES.
- Page 2 EHWM14FP*A EHWM17FP*A 98402C (Rev. c - 02/18) PAGE 2...
- Page 3 EHWM14FP*A EHWM17FP*A PAGE 3 98402C (Rev. C - 02/18)
- Page 4 EHWM14FP*A EHWM17FP*A 98402C (Rev. c - 02/18) PAGE 4...
- Page 5 EHWM14FP*A EHWM17FP*A PAGE 5 98402C (Rev. C - 02/18)
- Page 6 EHWM14FP*A EHWM17FP*A CABLE SHEATH ADJUSTMENT To Increase Free Play To Reduce Free Play FIG. 5 FIG. 6 See Fig. 6 FIG. 7 See Fig. 5 FIG. 8 98402C (Rev. c - 02/18) PAGE 6...
- Page 7 EHWM14FP*A EHWM17FP*A The freeze resistant package must be mounted on an interior wall in a heated area. The room temperature of the interior heated area must be 50° F (10° C) or higher. The freeze resistant package may be surface or recessed mounted.
- Page 8 EHWM14FP*A EHWM17FP*A PARTS LIST ITEM NO. DESCRIPTION PART NO. 6, 7 75672C CAP SCREW-#6-32 0000001190 KIT - PINNED TORX SCREW/T-25 BIT 27945C BRACKET-BASIN 27946C BRACKET-BASIN PIVOT 28630C BOTTOM COVER PLATE 28798C MTG. PLATE ASSY. (HDF-EBPFR) SEE FIG. 11 28801C MTG. PLATE ASSY. (HDF-BLEBP-FR) 28800C BACK PANEL (HDF-EBPFR) 28802C...
