Please Contact Moen First
For Installation Help, Missing or
Replacement Parts
(USA)
1-800-BUY-MOEN (1-800-289-6636)
Mon - Fri 8:00 AM to 7:00 PM, Eastern
Sat. 9:00 AM to 3:00 PM Eastern
WWW.MOEN.COM
(Canada)
1-800-465-6130
Mon - Fri 7:30 AM to 7:00 PM, Eastern
WWW.MOEN.CA
Por favor, contáctese primero con
Moen
Para obtener ayuda de instalación, piezas
faltantes o de recambio
011 52 (800) 718-4345
Lunes a viernes de 8:00 a 20:00 hs.
(Costa Este)
Sáb. 8:00 a 18:30 hs. (Costa Este)
WWW.MOEN.COM.MX
Veuillez d'abord contacter Moen
En cas de problèmes avec l'installation, ou
pour obtenir toute pièce manquante ou de
rechange
1-800-465-6130
Du lundi au vendredi :
de 7 h 30 à 19 h, HE
WWW.MOEN.CA

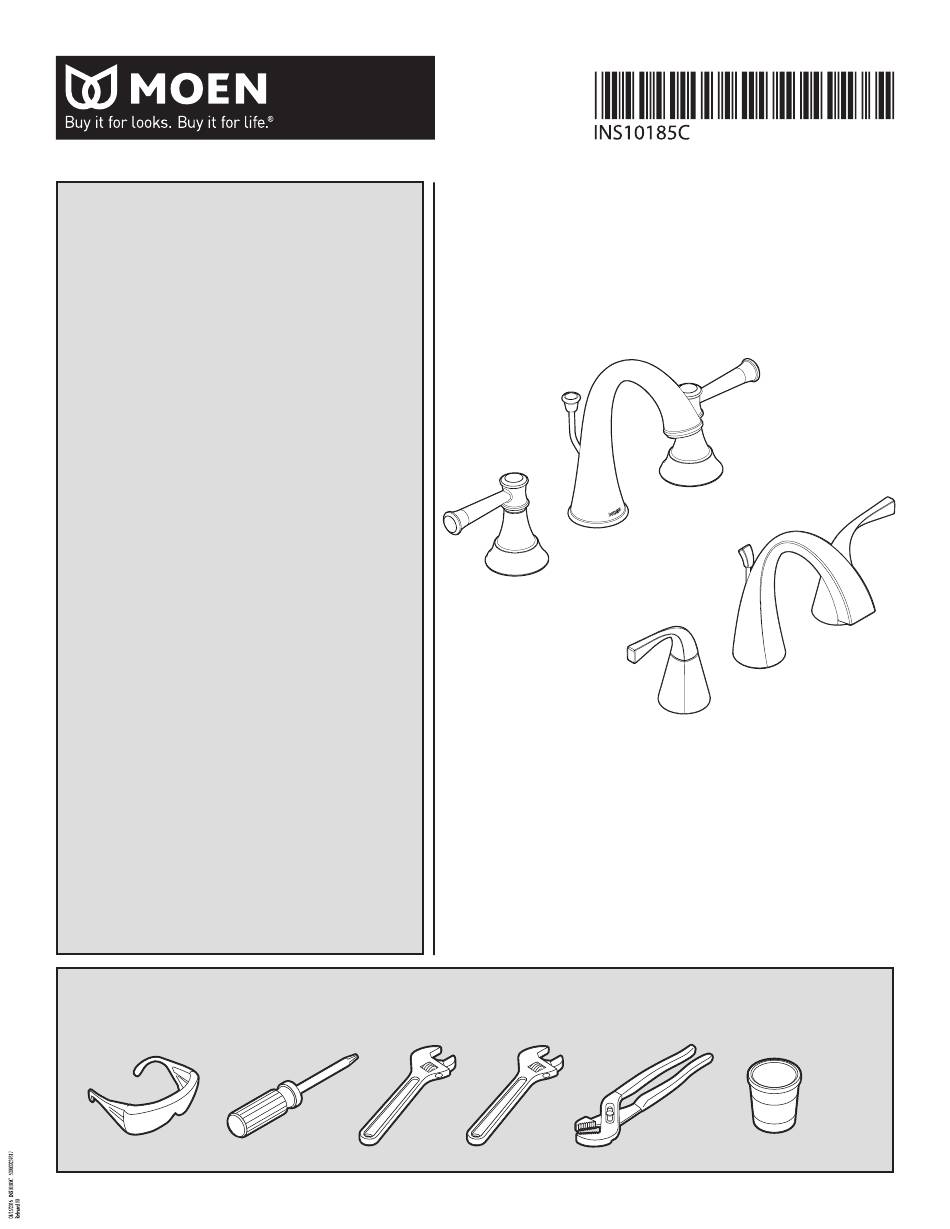

HELPFUL TOOLS
For safety and ease of faucet replacement, Moen recommends
the use of these helpful tools.
Installation Guide
Guía de Instalación
Guide d'installation
TWO HANDLE LAVATORY FAUCET
MEZCLADORA PARA LAVABO DE
DOS MANERALES
ROBINET DE LAVABO À DEUX POIGNÉES
Style varies by model.
El estilo varía por el modelo.
Le style varie selon le modèle.
HERRAMIENTAS ÚTILES
Para que el cambio de la llave sea fácil y seguro, Moen le
recomienda usar estas útiles herramientas.
INS10185C - 6/16
84778
84661SRN
OUTILS UTILES
Par mesure de sécurité et pour faciliter l'installation, Moen
suggère l'utilisation des outils suivants.
Sealant
Sellador
Mastic
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Moen WS84661SRN
Summary of Contents for Moen WS84661SRN
- Page 1 HERRAMIENTAS ÚTILES OUTILS UTILES For safety and ease of faucet replacement, Moen recommends Para que el cambio de la llave sea fácil y seguro, Moen le Par mesure de sécurité et pour faciliter l’installation, Moen the use of these helpful tools.
-
Page 2: Parts List
Parts List A. Handles (x2) J. Spout Mounting Nut B. Spout K. Hose C. Valve Clips (x2) L. Spout Shank D. Upper Mounting Washer (x2) M. Silicone Lubricant E. Lower Mounting Washer (x2) N. Hot Valve Body F. Mounting Nuts (x2) O. - Page 3 Spot Resist™: brossé Spot Resist™: Moen recommends cleaning the Spot Resist finish with Moen recomienda limpiar el acabado Spot Resist con un Moen recommande de nettoyer le fini Spot Resist avec a mild soap, rinsing thoroughly with warm water and jabón suave, enjuagarlo cuidadosamente con agua...
- Page 4 Sealant Sellador Mastic Apply a small amount of Silicone Lubricant (M) to the black rubber o-ring on the Spout Shank Apply a bead of plumbers putty or other sealant to the base of the Spout (B) as shown. Turn (L) as shown. Spout upright.
- Page 5 INS10185C - 6/16 Sealant Sellador Mastic Use Mounting Tool (O) to tighten the Mounting Nut (J) to the Spout Shank (L). Apply a generous bead of sealant to underside of the upper mounting washers (D). A sealant groove is provided for this purpose. Turn washers (D) over and position on sink as shown. Utilice la herramienta de montaje (O) para apretar la tuerca de montaje (J) a la tubo roscado del surtidor (L).
- Page 6 Slide Clip (C) into the groove on each valve body. Check to see that each valve body outlet Hold Hot Valve Body (N) with one wrench and tighten the Lower Mounting Nut (F) using a 2nd connection below the deck points towards the Spout Shank (L) as shown. wrench.
- Page 7 INS10185C - 6/16 Rotate the red stem extension on the Hot Valve Body (N) clockwise and the blue stem exten- Position (A) with handles pointing in the off direction as shown. Holding the handle stationary sion on the Cold Valve Body (G) counterclockwise until they stop. with one hand, thread the base of the Handle Assembly (A) onto the Valve Bodies (N &...
- Page 8 From the underside of the sink, thread the drain body (W) into the waste seat (U). Install lift rod (T) into opening on the top of the faucet. Slide the lift rod strap (V) onto lift rod and tighten the bolt finger tight. Final tightening will be completed during Step 23. Desde la parte inferior del fregadero, enrosque el cuerpo de desagüe (W) en el asiento del desagüe (U).
- Page 9 INS10185C - 6/16 The pivot rod (Z) can be installed in two ways. Illustration (21A) shows the pivot rod (Z) next to Push pivot rod (Z) down. Slide one side of clamp (AA) onto pivot rod. Insert pivot rod through hole in plug (S).
- Page 10 * Not included No incluidas Non incluses * Not included No incluidas Non incluses 1. Attach Supply Lines (CC)* to each valve body (N & G). 1. Attach Supply Lines (CC)* to shutoff valves. 2. Tighten by hand. 2. Tighten with wrench until secure. 3.
- Page 11 INS10185C - 6/16 For Model 84661SRN Para modelo 84661SRN Pour le modèle 84661SRN Sec. Sec. To flush debris from the plumbing system: Remove the aerator by unthreading by hand or by 1. Insert Hex Wrench (P) into aerator hole. using the included Aerator Tool (R) provided with select models. Run hot and cold water for 15 2.
- Page 12 Il suffit d’écrire area code and telephone number. estado a otro o de una provincia o nación a otra. Moen lo à Moen inc. à l’adresse indiquée ci-dessous, pour expli- asesorará en el procedimiento a seguir para hacer válida quer le défaut, d’inclure une preuve d’achat, d’inscrire...
