ERGO S
Quick Start Guide

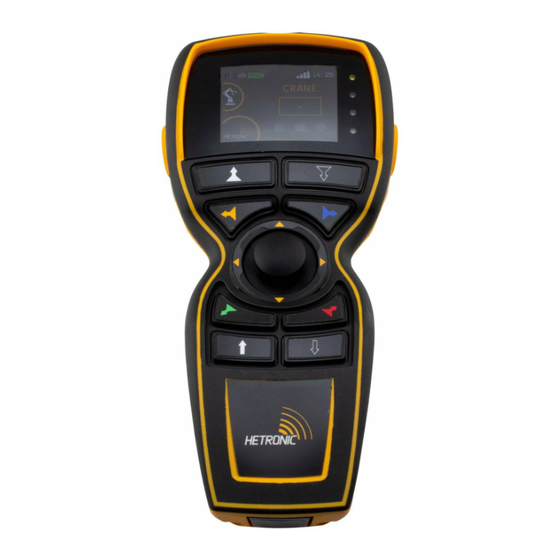

The ERGO S is an ergonomically designed, programmable wireless transmitter capable
of transmitting up to 32 on/off functions to remotely control a machine.
Your transmitter is encased in a rugged IP65 rated housing, is battery-powered, and
comes equipped with built-in low battery detection. Standard equipment includes two
3.45Ah Lithium-Ion batteries and battery charger.
QUICK START GUIDE |
Feature #
Description
1-8
Up to 2 Detent Momentary Pushbutton
9-11
Single Detent Momentary Pushbutton
12
Single Detent Power Pushbutton
13
Joystick (Selector switch)
14
Infra Red
15
STOP Pushbutton
16
USB Port
17
TFT Display
18
Status LED
19
LED Feedback bi-colour Red/Green
20
Customised Logo Area
21
Battery Compartment
22
Magnetic Belt Clip
ERGO S
www.hetronic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERGO S and is the answer not in the manual?

Questions and answers

Summary of Contents for HETRONIC ERGO S

  • Page 1 ERGO S Quick Start Guide The ERGO S is an ergonomically designed, programmable wireless transmitter capable of transmitting up to 32 on/off functions to remotely control a machine. Your transmitter is encased in a rugged IP65 rated housing, is battery-powered, and comes equipped with built-in low battery detection.
  • Page 2 2. Place the transmitter in the charger docking station OR remove battery pack 2. Place the transmitter in the charger docking station OR remove battery pack from ERGO S unit and place it in the charger and place it in the charger.
