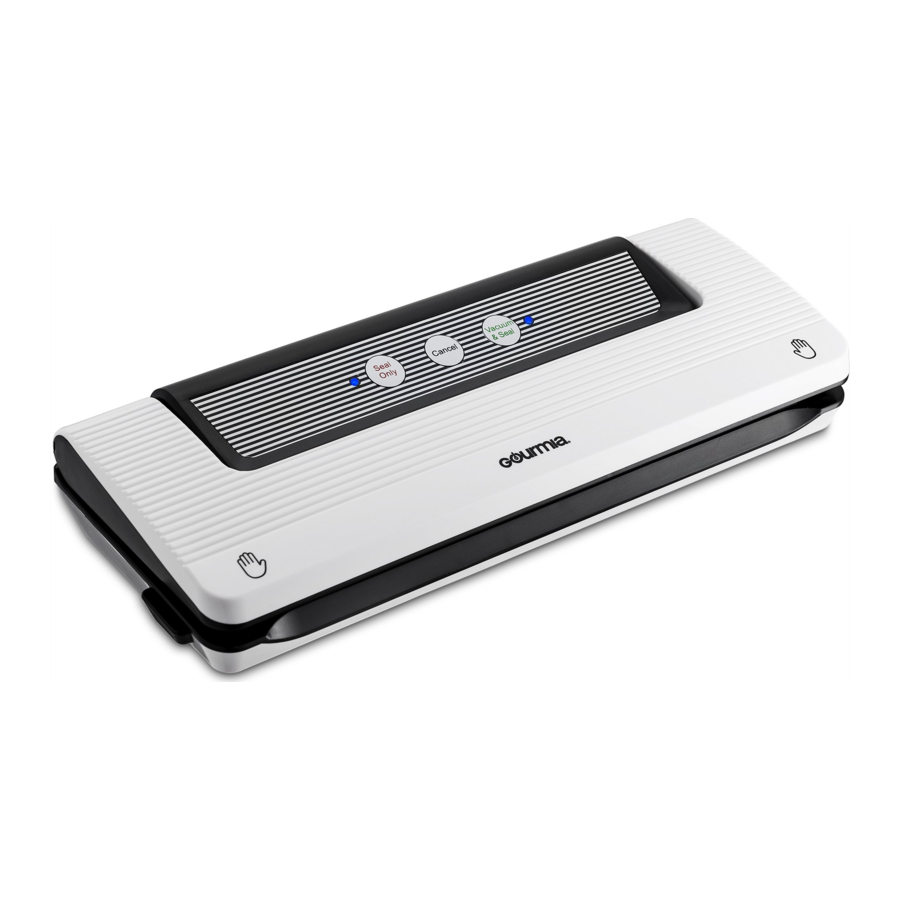

Gourmia GVS415 - Multi Function Vacuum Sealer Manual

Also See for GVS415:

Manual (10 pages)

Table of Contents

Contents

1 FEATURES & FUNCTIONS
2 PRODUCT SPECS
3 MAKING A BAG FROM THE BAG ROLL
4 VACUUM PACKAGING WITH A BAG
5 CLEANING AND MAINTENANCE
6 FOOD STORAGE GUIDELINES
7 TROUBLE SHOOTING
8 DISPOSAL OF THE DEVICE
9 IMPORTANT SAFEGUARDS
10 Documents / Resources
- 10.1 References
- 10.2 Download manual

Gourmia GVS415 - Multi Function Vacuum Sealer Manual

FEATURES & FUNCTIONS

Cover
Sealing indicator light
Sealing button
Stop button
Automatic vacuum and sealing key
Vacuum indicator light
Silicon non slip rubber feet
Left and right locks
Packer arm
Plastic bags limit line
Left and right locks
Sealing strip
Plastic bag stop line
Heat tape
Vacuum chamber air outlet
Plastic bag frame

Key operation

Press the green Flag key: starts vacuum function and bag sealing function.
Press the red Flag Key: starts the sealing function.
Press the gray Flag Key: ends all functions, enter the standby mode.

LED light

Green light for the vacuum function.
Red light for sealing bag function.

Power status

Press the red flag button, automatically starting the vacuum and sealing process. Sealing time is 5 seconds. At the same time, the red LED lights stay on. The machine automatically stops and the light goes into the standby mode.
Press the green flag key, vacuum function starts, the green LED lights up. Automatic vacuum function will stop when air pressure in the bag reaches required amount. When the sealing function begins, the red LED lights up and green LED lights off. When the seal is over (the length of the seal is complete), the appliance goes into standby mode.
Wait 15 seconds for the appliance to cool down, to start heating sealing function again
Use only recommended sealing bags. Fill two-thirds of the way up (size 280mm x 300mm). Vacuum sealing process takes less than 25 seconds.
Press the gray key to stop all the functions and enter the standby mode.

PRODUCT SPECS

Uses a small, electric pump for low noise and low vibration.

Maximum size of packed and sealed bag is 290mm, 280mm.

Rated voltage	120V-60HZ
Rated Power	110W

MAKING A BAG FROM THE BAG ROLL

With scissors, cut the length of the bag you need, leaving at least 6 cm for sealing.
Put one end of the bag on top of the sealing element, but do not put over the vacuum chamber.
Close the cover and press tightly until you hear it click in place on both sides.
Press the envelope button. The red light will come on and the automatic sealing will begin.
Press the left and right side of the cover buttons to open the cover. Take the bag out of the machine. The bag is now ready for the vacuum sealing process.

VACUUM PACKAGING WITH A BAG

Put the items inside the bag. Use only quality vacuum bags. Straighten out the open end of the bag and clean off any dust.
Position the open end of the bag within the vacuum chamber area. Make sure the bag is within the limit lines.
Push the cover down and click to lock the cover.
Press the green button. The red light will illuminate, and the unit will start the automatic vacuum sealing process. When the bag is sealed, the red light will turn off and the machine will stop. You can press the Stop button at any time to cancel.
After the vacuum sealing process, press down on the left and right sides to open and remove the sealed bags.

CLEANING AND MAINTENANCE

Always unplug the unit before cleaning.

Do not immerse in water or any other liquid.

Avoid using abrasive products or material to clean the unit, as it will scratch the surface. Use a mild dish washing soap and a warm, damp cloth to wipe away food residue on appliance or around components. Dry thoroughly before using again.

Note: The foam gaskets around the vacuum chambers should be dried thoroughly before re-assembling. When re-assembling, it is important to assemble components back to original position, to ensure proper operation.

Cleaning The Vacuum Bags

Wash bags in warm water with a mild dish washing soap

When washing bags in dishwasher, turn bags inside out and spread them over top rack of dishwasher, so entire surface is exposed to the water. Dry thoroughly before reusing.

To avoid possible illness, do not reuse bags after storing raw meats, raw fish or greasy foods. Do not reuse bags that have been microwaved or boiled.

Cleaning the Accessories

Wash all container accessories in warm water with a mild dish washing soap. DO NOT immerse cover in water. Container accessory bases (not lids) are top rack dishwasher safe. Lid covers should be wiped down with a damp cloth. Dry thoroughly before reusing.

Container accessories are NOT to be used in a microwave or freezer.

Storing Your Device

Keep the unit in a flat and safe place, out of the reach of children. Keep the lid of appliance unlocked when not in use to avoid distorting the foam gaskets. Damage or distortion cause leakage.

FOOD STORAGE GUIDELINES

CLASSIFICATION	FOOD ITEMS	TEMP.	NORMAL STORAGE	VACUUM STORAGE
REFRIGERATED	Fresh Raw Meat	5±3°C	2-3 days	8 9 days
	Fresh Fish/ Sea Food	5±3°C	1-3 days	4-5 days
	Cooked Meat	5±3°C	4-6 days	10-14 days
	Vegetables	5±3°C	3-5 days	7-10 days
	Fruit	5±3°C	5-7 days	14-20 days
	Eggs	5±3°C	10-15 days	30-50 days
FROZEN	Meat	-16~ – 20°C	3-5 months	>1 year
	Fish	-16~ – 20°C	3-5 months	>1 year
	Seafood	-16~ – 20°C	3-5 months	>1 year
ROOM TEMPERATURE	Bread	25±2°C	1-2 days	8-10 days
	Biscuit	25±2°C	4-6 months	>1 year
	Rice/ Flour	25±2°C	3-5 months	>1 year
	Peanut/Legume	25±2°C	3-6 months	>1 year
	Medical Material	25±2°C	3-6 months	>1 year
	Tea	25±2°C	5-6 months	>1 year

TROUBLE SHOOTING

In the unlikely event that you experience a problem with your device, please take a couple of minutes to check these possible causes prior to contacting customer support:

PROBLEM	POSSIBLE CAUSE	SOLUTION
Vacuuming but Is not sealing automatically	Lower gasket is deformed	Replace it and try again
	Edge of bag is covering the suction hole	Place the bag in the correct position
	Bag is over filled and may be preventing the cover from locking	Take out some food and clean the bag edges, try again
	The bag is broken or leaking	Use a new bag and try again
Sealing OK but not vacuuming	The bag is not placed correctly in the vacuum chamber	Place the edge of the bag into the vacuum chamber
	The bag is covering suction hole	Place the bags in the correct position
	The edge of the bag has dirt, dust or crumbs	Clean the edge of bag and try again
	Edge of bag has wrinkles	Smooth the bag and try again
	Contents have sharp edges	Use the food safety paper pack before putting into the vacuum bag
Bag is in inflating/expanding after vacuum sealing	The food is highly corrosive	Freeze or refrigerate after vacuuming to prolong it's shelf life
Bag is in inflating/expanding after vacuum sealing	The food packed is fresh vegetables, fruit or seeds	They are not suited to storage at room temperature. They have photosynthesis and respiration. Keep refrigerated

For Customer Service or Questions, Please call: 888-552-0033
www.gourmia.com

DISPOSAL OF THE DEVICE

PROTECTION OF THE ENVIRONMENT
At the end of the life of your product, it should go to a specially adapted waste-recycling center.

ENVIRONMENT PROTECTION FIRST

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be handed over to the applicable. Collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about the recycling of this product, Please contact your local council office or your household waste disposal service.

IMPORTANT SAFEGUARDS

When operating this electric appliance, basic safety instructions should always be followed. Refer to the following for these instructions

READ ALL SAFETY & USAGE INSTRUCTIONS BEFORE USING.
Do not use appliance on wet or hot surfaces, or near a heat source.
To protect against electric shock, do not immerse any part of appliance, power cord or plug in water or other liquid. Unplug from outlet when not in use and before cleaning.
To disconnect, unplug power cord from electrical outlet. Do not disconnect by pulling on cord.
Do not operate appliance with a damaged power cord or plug. Do not operate appliance if it malfunctions or is in any way damaged. For details, contact Consumer Services.
Use appliance only for its intended use.
Closely supervise children when using any electrical appliance. Do not allow appliance to be used as a toy.
The appliance has a polarized plug (one blade is wider than the other). To reduce risk of electrical shock, this plug is intended to t in a polarized outlet only one way. If plug does not t fully in the outlet, reverse plug. If it still does not t, contact a qualified electrician. Do not modify plug in any way.
A short power cord is provided to reduce risks from entanglement or tripping over a longer cord. An extension cord may be used when marked electrical rating is no less than electrical rating of this appliance. All cords should not drape over counter or tabletop where cords can be tripped over or pulled on unintentionally, especially by children.
Do not place on or near a hot gas or electric burner, or heated oven. Extreme caution must be used when moving products containing hot liquids.
Wait at least 20 seconds between seals to allow appliance to cool.
For Household Use Only.

SAVE THESE INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

Electrical 3-conductor Cord Set:
Appliance equipped with a 3-conductor cord set that has a 3 prong grounding-type plug. It should be properly connected to a grounding-type outlet. The plug is designed to fit ONLY a 3-grounding outlet unit, and as such, the grounding prong should never be removed. If needed, purchase a 2-prong adapter and ground it to the outlet. Consult a qualified electrician if in doubt. Do not use an adapter unless you are confident it is grounded. Do not modify this plug. If the plug does not fit the outlet securely, call a qualified electrician for assistance.
Using the Electrical 3-conductor Cord
