USB 2.0 High Speed
4-Port Hub
Making Your Mobile Life Easier.
USER'S GUIDE
Visit our Web site at: www.targus.com
Making Your Mobile Life Easier.
Features and specifications are subject to change without notice. © 2003 Targus Corp.
400-0109-001A
B
H
B
T
M
A
S
L
P
N
Y
L
A
T
H
K
S
RUSSELS
ANNOVER
ARCELONA
OKYO
ILANO
MSTERDAM
INGAPORE
ONDON
ARIS
EW
ORK
OS
NGELES
ORONTO
ONG
ONG
YDNEY
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Targus PAUH210U
Summary of Contents for Targus PAUH210U
-
Page 1: Port Hub

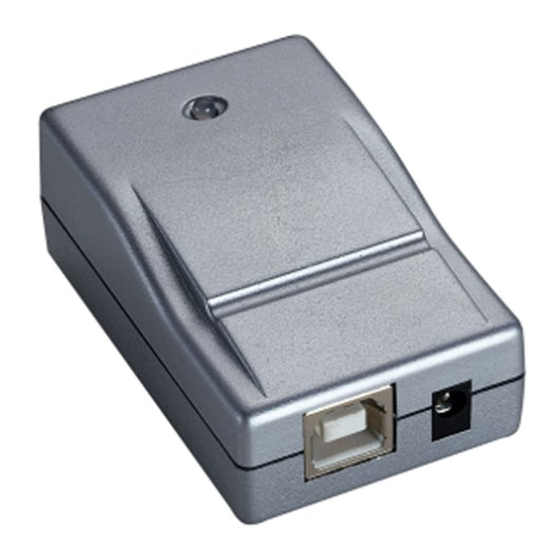

USB 2.0 High Speed 4-Port Hub Making Your Mobile Life Easier. USER’S GUIDE Visit our Web site at: www.targus.com Making Your Mobile Life Easier. Features and specifications are subject to change without notice. © 2003 Targus Corp. 400-0109-001A RUSSELS ANNOVER ARCELONA OKYO... - Page 3 USB 2.0 High Speed 4-Port Hub Introduction Congratulations on your purchase of a Targus USB 2.0 High Speed 4-Port Hub. This ultra portable hub is USB 2.0 compliant and connects to a Universal Serial Bus (USB) port on your desktop or notebook computer.
-
Page 4: System Requirements
USB 1.1 or 2.0 interface. When using the hub with a computer that has a version 1.1 USB interface, all of the devices attached to the hub will run at USB 1.1 speed (up to 12Mbps). Operating System ®... - Page 5 Connecting the Hub and Installing the Drivers To connect the hub to your computer and install the operating system’s default drivers, follow the steps listed below for the hub model that you purchased. Model PAUH200 The model PAUH200 hub comes with two high-speed A/B cables so that you can connect it to two host computers.
- Page 6 The black connector supports up- and downstream data flow between the hub and your computer and provides power to the hub and any device attached to the hub. The red connector only provides power; data flow is not supported. When the USB type A connectors are used together, the “Y”...
- Page 7 You can now connect USB devices to the hub or daisy-chain additional hubs. Connecting Devices to the USB Hub To connect a USB device, plug it into a USB port on the hub and follow any additional instructions provided with the device.
-
Page 8: Led Status Indicator Lights
• When connecting a new device to the hub, you must run the Setup or Install program for that device. • When connecting a device to the hub, to avoid possible damage, never force the cable connector into the port on the hub. -
Page 9: Specifications
USB Specification Revision 2.0 and 1.1 compatibility Data Speed USB v1.1: 12 Mbps USB v2.0: 480 Mbps Connector Ports PAUH200 Hub to computer: 2 (series B receptacle) Hub to devices: PAUH210 Hub to computer: 1 (series B receptacle) Hub to devices: 4 (series A receptacle) -
Page 10: Troubleshooting
Can I connect USB 1.1 compatible devices to the hub? Yes, the hub is backward compatible with USB 1.1 devices. Can I use the model PAUH210 hub if I have only one available USB port? Yes, the model PAUH210 hub works with one USB port if you connect it to your computer with the black USB connector. - Page 11 • Make sure that the device is firmly connected to the port on the hub. • Plug the device into a different port on the hub. If it still doesn’t work, test the device by connecting it directly to your computer.
- Page 12 USB Hub on USB 2.0 Bus device by opening Apple System Profiler and clicking Devices and Volumes. USB Hub Current Limit Exceeded Warning If a device exceeds the power available for its hub port, the following screen appears with the offending device highlighted.
-
Page 13: Technical Support
Technical Support In the unlikely event that you encounter a problem with your Targus accessory, please contact our technical support team at: Email: techsupport@targus.com Internet: http://www.targus.com/support.asp Our knowledgeable staff is also available to answer your questions through one of the following telephone numbers. -
Page 14: Product Registration
(if applicable). Warranty Targus warrants this product to be free from defects in materials and workmanship for one year. If your Targus accessory is found to be defective within that time, we will promptly repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. - Page 15 radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...
