König SAS-IPCAM300W - IP Camera Manual

Table of Contents

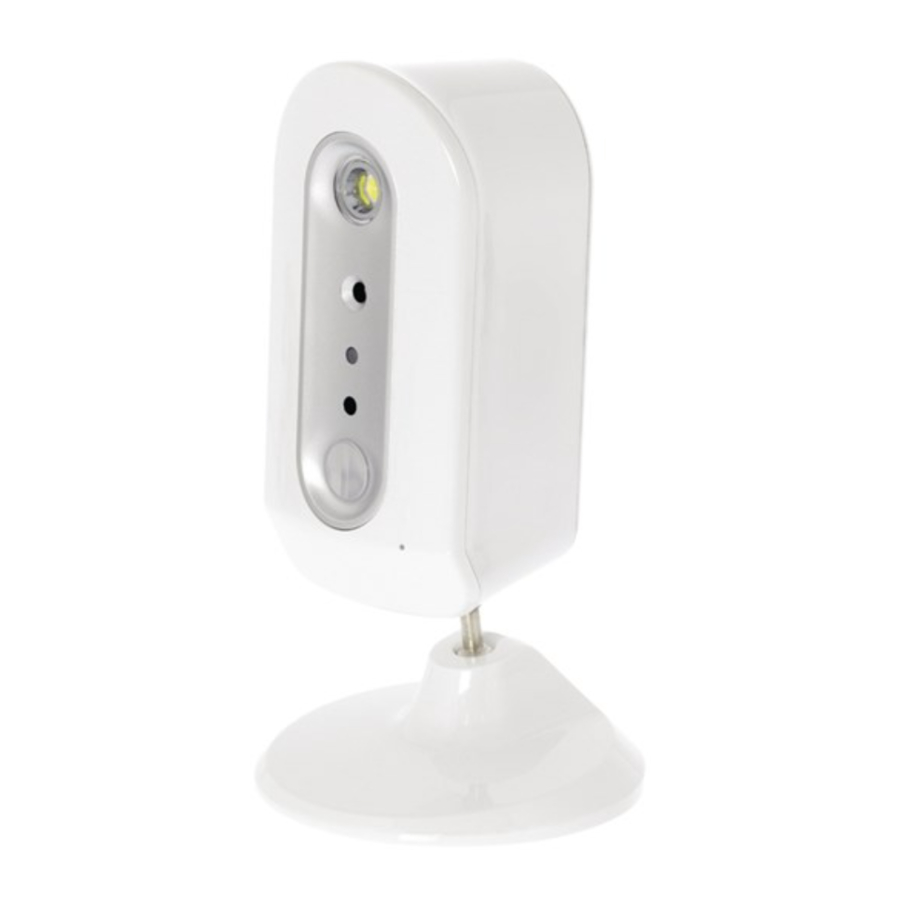

Description (fig. A)

Description

Camera
Standby button Motion alert on/off button	Press the button to set the device to standby mode. Press and hold the button for 5 seconds to activate the motion alert. Press and hold the button again for 5 seconds to deactivate the motion alert.
Reset button	Press and hold the button for 5 seconds to reset the device to the default settings.
LED light (white)
LED indicators (red and blue)	Reset successful: The red and blue LED indicators flash alternately. Motion alert activated: The red LED indicator flashes once. Motion alert deactivated: The blue LED indicator flashes once.
Light sensor
Motion sensor
Mounting point for camera stand	Fig. B: Mount the camera to the camera stand using the screw. Attach the camera stand on a stable surface.
Memory card slot (microSD / TransFlash)	Insert a memory card into the memory card slot (storage).
DC input (5V)	To charge or power the device, connect the power adapter to the DC input of the device and to the wall socket.
Battery compartment	Slide the rear cover down to open the battery compartment. Connect and insert the batteries (3.7 V / 5200 mAh) into the battery compartment. Note: The arrows must be up and pointing towards each other. Close the battery compartment.

Mounting point for camera stand

Download and install the app from Apple App Store (iOS) or Google Play Store (Android) on your mobile device by searching the keywords "OMGuard HD" or using the 2D barcode.

iOS

Android
Launch the "OMGuard HD" app and tap the button to add a camera.
Tap "Scan DID Label" to scan for the DID on the back of the camera or manually enter the DID information.
Enter a name for the camera.
Enter default security code: 123456.
Save the information and follow the in-app wizard to complete the setup process.
Default SSID: SensorCam-000000 (example)
Default SSID PW: 12345678

	Add camera: Register additional cameras
	Camera setting: Access point for different camera settings
	Refresh: Refresh all cameras
	Information: Access camera/app firmware version information and app PIN lock setup
	Camera information: Change camera name, reset the Wi-Fi router settings and access the advanced settings of the camera
	Delete camera: Remove the camera
	Event list: View and play the list of motion-triggered events

Select "Advanced setting" in "Camera setting" to access the following settings:

Admin password	The default security code required to enter "Advanced setting" is "123456".
Device security code	Set up/change the password of the camera required for remote access
Cloud setting	Set up cloud storage service Edit account password Manage device
Wi-Fi	Manage the Wi-Fi network setting (available for Android version app)
Notify enable	Activate/deactivate push notifications
Motion detect	Activate/deactivate motion detection
LED light	Activate/deactivate the white LED light (for night view)
SD card overwrite	Activate/deactivate data storage overwrite
Brightness	Adjust brightness level
Power saving timer	Adjust the power-saving timer settings
Device information	Camera and app firmware versions
Data format	Format (erase all data) the memory card
Video record time	Set up the length of the video recording when the camera detects motion
Record mode	Select photo/video mode when the camera detects motion
Video framerate	Set up the number of frames per second for the video recording
Video resolution	Set up the vide resolution

Disconnect the product from the mains and other equipment if a problem should occur.

Read the manual carefully before use. Keep the manual for future reference.
Only use the device for its intended purposes. Do not use the device for other purposes than described in the manual.
Do not use the device if any part is damaged or defective. If the device is damaged or defective, replace the device immediately.

Use only the batteries mentioned in the manual.
Do not use old and new batteries together.
Do not use batteries of different types or brands.
Do not install batteries in reverse polarity.
Do not short-circuit or disassemble the batteries.
Do not expose the batteries to water.
Do not expose the batteries to fire or excessive heat.
Batteries are prone to leakage when fully discharged. To avoid damage to the product, remove the batteries when leaving the product unattended for longer periods of time.
If liquid from the batteries comes into contact with skin or clothing, immediately rinse with fresh water.

Do not use cleaning solvents or abrasives.
Do not clean the inside of the device.
Do not attempt to repair the device. If the device does not operate correctly, replace it with a new device.
