Tristar KA-5084 - Plug heater Manual

Table of Contents

Contents

1 PARTS DESCRIPTION
2 BEFORE THE FIRST USE
3 USE
4 SETTING THE TIMER
5 CLEANING AND MAINTENANCE
6 DOUBLE-INSULATED APPLIANCES
7 ENVIRONMENT
8 Documents / Resources
- 8.1 References
- 8.2 Download manual

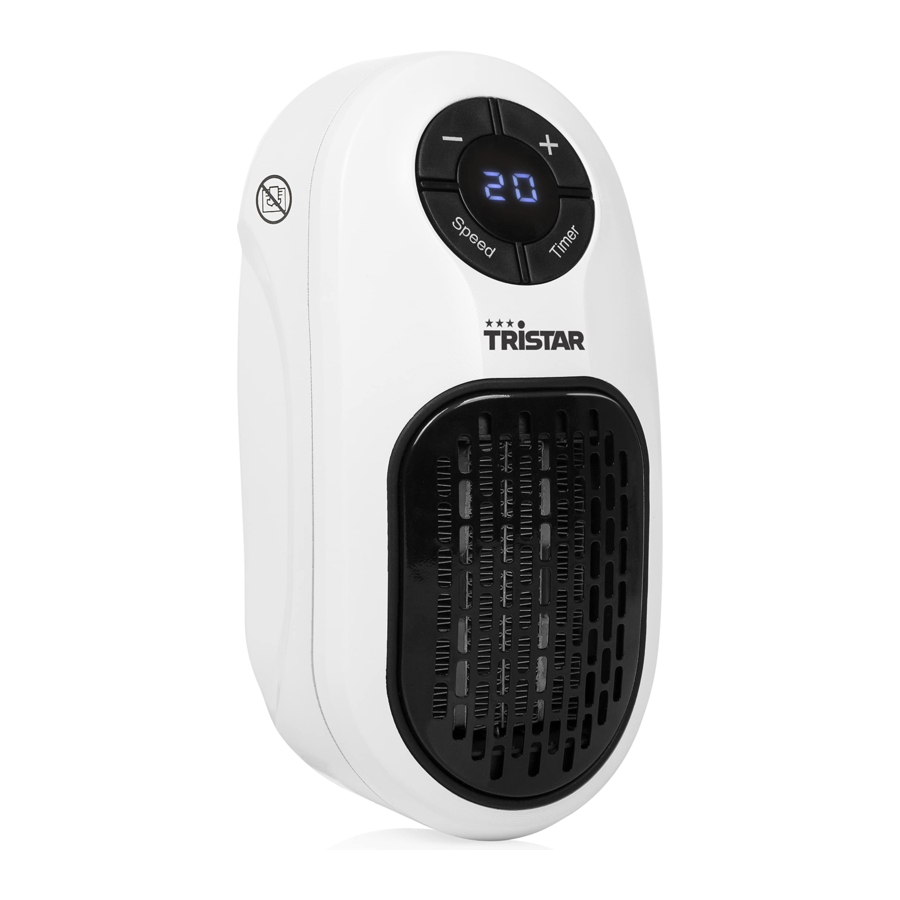

PARTS DESCRIPTION

Reduce temperature button
Increase temperature button
Fan speed button
Timer button
Digital display
On/Off button

BEFORE THE FIRST USE

Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon.

USE

Plug the device into a 220V-240V socket.
Switch the On/Off button to the on position to turn the heater on.
Use the + button to increase the temperature and the – button to reduce (it can be set between 15°C and 32°C).
Select the desired fan speed, press the fan speed button to choose either high speed (HH) or low speed(LL).
Switch the On/Off button to the Off position to turn the device off and unplug the heater from the power socket. Store the device in a cool, dry place until the next time you need it.
If the device stops working because it overheats, unplug it from the power socket and plug it in again.

SETTING THE TIMER

The heater has a built-in timer that automatically shuts off the device after a pre-set time period.
After plugging in and turning on the heater press the timer button to activate the timer.
Press the timer button repeatedly until the display shows the number of hours the heater has to stay on before shutting off. 1 to 12 hours can be selected.
Once the desired nember of hours is displayed, stop pressng the timer button.
To cancel the timer, turn off the heater.
Note: For safety reasons, the heater maximum default timer setting is 12 hours.

CLEANING AND MAINTENANCE

The appliance needs only an external regular cleaning.
Before cleaning, unplug the appliance and wait for the appliance to cool down.
Clean the grilles from dust.
Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.

DOUBLE-INSULATED APPLIANCES

In a double-insulated appliance, two insulation systems are provided instead of an earth wire. No earthing means is provided on a double-insulated appliance, nor should a means for earthing be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should only be done by qualified service personnel. The replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is labelled with the words 'CLASS II' or 'DOUBLE INSULATED". It can also be identified with the double insulation symbol.

ENVIRONMENT

[WEEE LOGO]

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.
