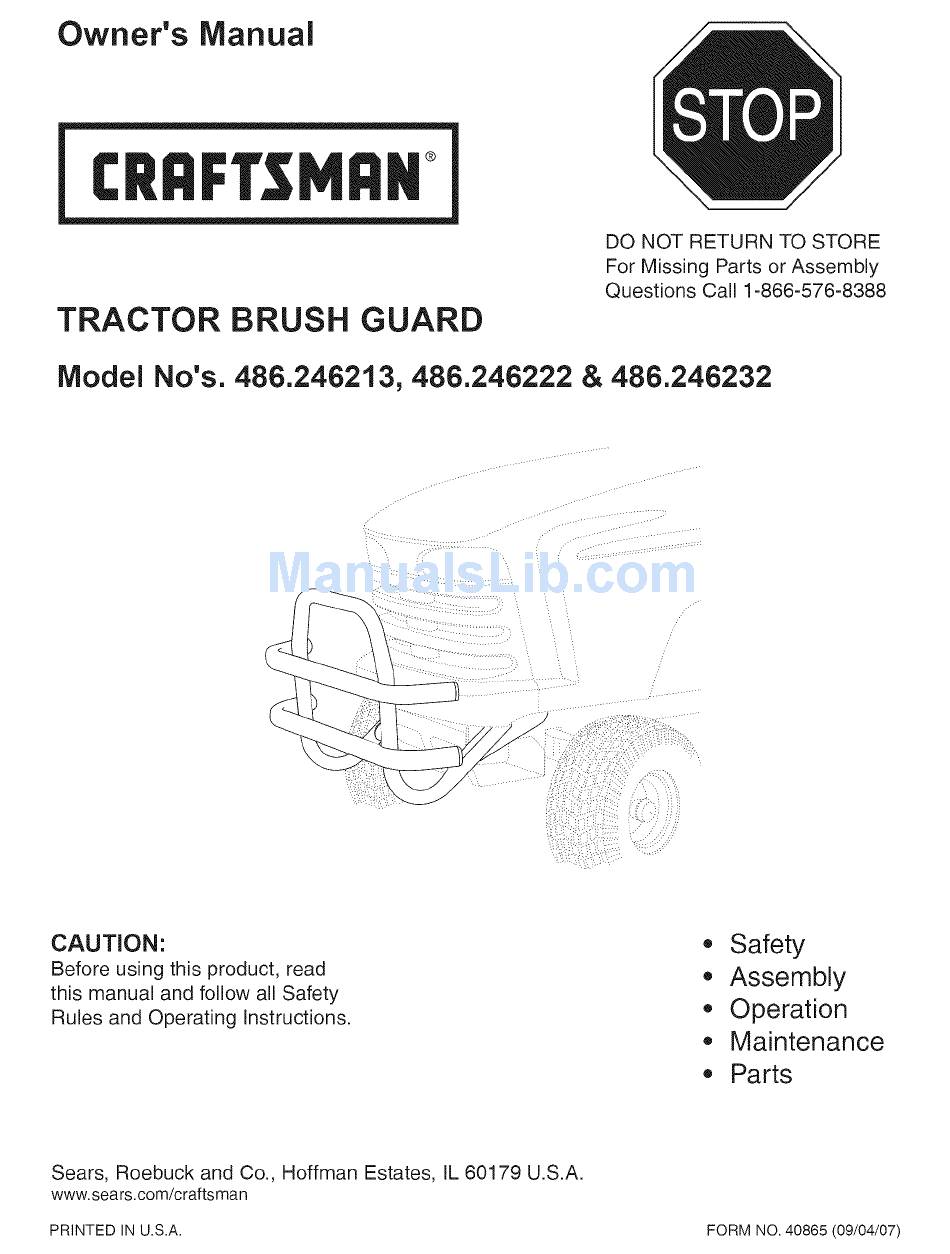

Owner's Manual
I:RRFrSMRH °
TRACTOR BRUSH GUARD
DO NOT RETURN
TO STORE
For Missing Parts or Assembly
Questions
Call 1-866-576-8388
Model No's. 486.246213, 486.246222 & 486.246232
CAUTION:
Before using this product,
read
this manual and follow all Safety
Rules and Operating
Instructions.
,, Safety
,, Assembly
,, Operation
,, Maintenance
,, Parts
Sears, Roebuck
and Co., Hoffman
Estates, IL 60179 U.S.A.
www.sears.com/craftsman
PRINTED
IN U.S.A.
FORM
NO. 40865
(09/04/07)
Advertisement
Related Manuals for Craftsman 486.246213
Summary of Contents for Craftsman 486.246213
- Page 1 Owner's Manual I:RRFrSMRH ° TRACTOR BRUSH GUARD Model No's. 486.246213, 486.246222 & 486.246232 CAUTION: Before using this product, read this manual and follow all Safety Rules and Operating Instructions. Sears, Roebuck and Co., Hoffman www.sears.com/craftsman PRINTED IN U.S.A. DO NOT RETURN...
-
Page 2: Warranty
WARRANTY ONE YEAR LIMITED WARRANTY When operated and maintained according to the instructions supplied with it, if this Tractor Brush Guard fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME®to arrange for free repair. If this product is used for commercial or rentaJ purposes, this warranty applies for only 90 days from the date of purchase. - Page 3 iNSTRUCTiONS FOR SINGLE STEP 1 : (SEE FIGURE 2) Open parts bag labelled "A" and verify that all parts are present. NOTE: Place cardboard or a mat on work surface to prevent scratching of parts removed from carton and tractor. CAUTION! Muffler is hot! Allow engine to cool down before proceeding with bumper...
- Page 4 STEP 3: (SEE FIGURE 4) • Place plug (D) on a work bench or solid table and push end of bumper down onto plug. Repeat for all four plugs. STEP 4: (SEE FIGURE 5) • Attach ]eft mounting bracket to hole shown in ]eft side of tractor frame using a carriage bolt (A) and whizlock nut (C).
- Page 5 INSTRUCTIONS STEP 1 : (SEE FIGURE 2) Open parts bags labelled "A" and "B" and verify that all parts are present. NOTE: Place cardboard or a mat on work surface to prevent scratching of parts removed from carton and tractor. CAUTION! Muffler is hot! Allow engine to cool down before proceeding with bumper...
- Page 6 STEP 3: (SEE FIGURE 4) • Place plug (H) on a work bench or solid table and push end of bumper down onto plug. Repeat for all four plugs. STEP 4: (SEE FIGURE 5) IMPORTANT: Do not remove any bolts from the tractor frame while the mower deck is raised.
- Page 7 STEP 5: (SEE FIGURE 6) • Attach left mounting bracket to hole shown in ]eft side of tractor frame using bolt (C), lock washer (F) and flat washer (G). Align middle hole in bracket with empty hole in tractor frame and tighten bolt (C) to hold bracket in place.
- Page 8 For repair - in your home - of all major brand appliances, lawn and garden equipment, no matter who made it, no matter who sold it ! For the replacement owner's manuals that you need to do-it-yourself. For Sears professional and items like garage door openers and water heaters.
