Klein Tools AEPJS3 - Bluetooth Speaker With Magnet And Hook Manual

CONTENTS

• AEPJS3 Bluetooth ® Speaker
• 39.4" (1000mm) USB-A to USB-C Cable
• 23.6" (600mm) 1/8" (3.5 mm) Auxiliary Cable
• Instruction Sheet

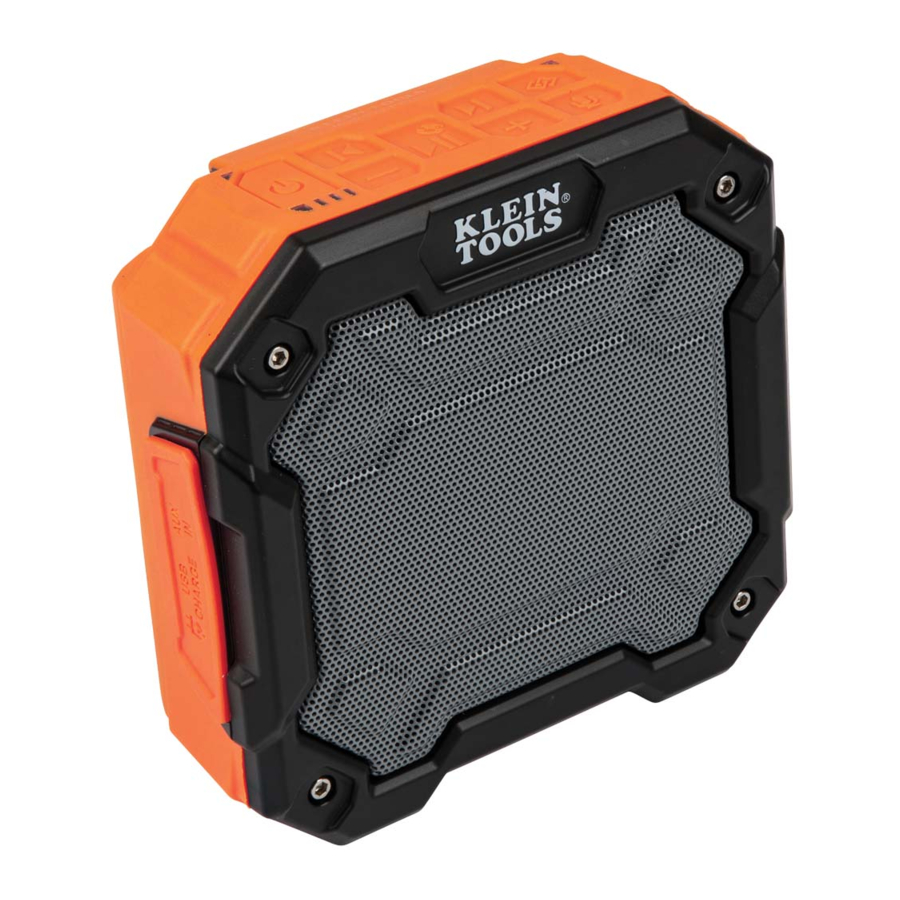

Klein Tools AEPJS3 is a powered speaker designed to provide high-quality sound for smartphones, tablets, computers, or other audio devices. The AEPJS3 will also charge common mobile devices like cell phones, tablets, headphones, and other smaller USB devices.

GENERAL SPECIFICATIONS

• Dimensions: 5.46" x 5.37" x 2.33" (139 x 136 x 59 mm)
• Weight: 1.14 lb. (517 g)
• Wireless Compatibility: Devices with Bluetooth
• Wireless Connection Range: 100 ft. (30 m) in open space
• Support Pro les: AD2P, AVRCP, HFP, SPP
• Battery Type: Internal, Li-Ion, 3.63V / 5200mAh
• Battery Life: 20+ hours at 70% volume
• Certi cations: CE, FCC, IC, BC, NOM
• Operating/Charging Temperature: 32° to 104°F (0° to 40°C)
• Storage Temperature: -22° to 140°F (-30° to 60°C)
• Relative Humidity: <85% non-condensing
• Drop Protection: 6.6' (2 m)
• Ingress Protection (IP) Rating: IP54

Specifications subject to change.

WARNINGS

Read, understand, and follow these instructions to ensure safe operation. Failure to observe these warnings can result in risk of fire or electric shock. Keep these instructions for future reference.

• No user-serviceable parts inside. Do not open enclosure or attempt to repair this speaker.
• Never lubricate any part of this speaker.
• Do not expose to direct sunlight, open flame, heat sources, equipment that produces heat, or extremes in environmental temperature.
• Never immerse in water or other liquids. Do not allow liquids, dust or debris to enter openings or vents on the speaker enclosure.
• Water-resistant cover must be properly sealed to achieve specified water & foreign object ingress protection. Keep seal free of dirt, oil, sand, or other material that interferes with proper sealing. Failure to do so can result in risk of fire or electric shock.
• Do not open water-resistant cover if wet or in a wet environment. Dry the speaker thoroughly and the seal around water-resistant cover completely before opening water-resistant cover.
• When speaker is in use or charging, make sure there is adequate space to allow ventilation of internally generated heat.
• Use safety-rated power supply or wall adapter. Never use power supply or wall adapter that exceeds the specified charging voltage and current.
• Route the power supply cable so that it will not to be stepped on or pinched by other objects.

SYMBOLS ON PRODUCT

	Warning or Caution
	Risk of Electrical Shock
	Conforms with particular Code of Federal regulations
	Meets CEC and DOE energy ef ciency requirements
	Canada Energy Ef ciency Veri ed
	This product has been independently tested by Intertek and meets applicable published standards
	NOM-NYCE – IFETEL
	Do not place equipment and its accessories in the trash
	Recycle
	Conformité Européenne: Conforms with European Economic Area directives
	Strong Magnetic Field
	Read Manual

FEATURE DETAILS

1. Power Button
2. Skip Backward Button
3. Play/Pause/Talk Button
4. Skip Forward Button
5. Daisy Chain Button
6. "-" Volume Down Button
7. "+" Volume Up Button
8. Voice Control Button
9. Bluetooth ® LED Indicator
10. Battery Status Indicator
11. Daisy Chain LED Indicator
12. Nail Hook
13. Magnets (×2)
14. Auxiliary "Aux In" Jack
15. USB A Charge Out Port
16. USB C Charge In/Out Port
17. Water/Dust-Resistant Cover

OPERATING INSTRUCTIONS

CHARGING BATTERY
NOTE: Fully charge before use. First-time charge should be at least 4 hours.
Connect the USB Type C cable connection to USB charging port ; plug the other end of cable to computer or USB AC adapter or other USB power supply (not included). Charge times will vary: 5V-2.4A Charger - Approx. 3 Hours, 5V-1.0A Charger: Approx. 5 Hours. The battery level indicator will illuminate to indicate charging status (see table below).

ON/OFF: Press & hold power button for 3 seconds, a tone will sound. Unit will automatically power off after 20 minutes of inactivity.
NOTE: Turn unit off when not in use to prolong battery life.

PAIRING: Wireless connection activates automatically and is ready to pair when unit is turned on. On your Bluetooth^® wireless compatible device, enable Bluetooth^® and search/ scan for devices that can be paired. Select "AEPJS3" when it appears (refer to the user manual of your device). If necessary, enter "0000" as pairing passcode. A tone sounds after a successful pairing.
NOTE: Unit automatically attempts to connect the last paired wireless device but is ready to pair with any compatible device if the last paired device is not detected within 5 seconds of powering on.

DISCONNECT PAIRING:

1. Turn unit off; -or
2. Double-press Power Button . Bluetooth^® LED Indicator will blink; -or
3. Plug a cable into Aux jack ; -or
4. turn off Bluetooth^® wireless connection in paired device.

RESET WIRELESS CONNECTION OR PAIRING WITH DIFFERENT DEVICES:
Double-press Power Button (tone sounds). Repeat Pairing procedure with different devices.

PLAYING AUDIO: Use your device to control the speaker or use the built-in control buttons on the speaker.

• Press the Play/Pause/Talk button to play or pause audio on your device.
• Press the "-" or "+" button to adjust the speaker volume. A tone will sound when maximum volume is reached. Volume may also be controlled from your audio device.
• Press the Skip Forward or Skip Backward buttons to skip backward or forward (respectively) during a song.

AUXILIARY AUDIO-IN: Connect one end of the auxiliary cable to the AUX jack of the speaker; plug the other end of cable to line-out or headphone jack of your device.

SPEAKERPHONE OPERATION:

• When an incoming call occurs, playing music is muted & ring tone sounds. Shortpress Play/Pause/Talk button to answer the call, or long-press to ignore.
• To disconnect the call, short press the Play/Pause/Talk button to hang up.

DAISY-CHAINING: Once you have your AEPJS3 Speaker connected to a Bluetooth^® device, you can connect a second AEPJS3 speaker to your already connected AEPJS3 speaker.

1. Ensure your primary AEPJS3 speaker is turned on.
2. Turn on your secondary AEPJS3 speaker.
3. Press the Daisy Chain button on both AEPJS3 speakers. Press the Daisy Chain button on both AEPJS3 speaker and the Daisy Chain LED will blink.
4. Upon successful connection, a tone will sound on both speakers and the Daisy Chain LED will remain lit. NOTE: If daisy-chain connection is not established 30 seconds after pressing the daisy chain button, the speaker will exit the daisy-chain mode.
5. To disable daisy-chaining, press the daisy-chain button on either of the two speakers.
   NOTE: The daisy chain connection between the two AEPJS3 speakers will NOT automatically reconnect after the speakers are turned off. To reconnect, follow the Daisy-chaining steps above.

VOICE CONTROL: Press the voice control button to activate the voice assistant on your device.
NOTE: Before using this function, the devices must be connected to the speaker via Bluetooth^®.

LOW BATTERY INDICATION: The Red LED on the Battery Status Indicator will flash on/off when battery level drops to approximately 5%. Speaker will automatically power off when the battery level is below 2%. Recharge speaker as soon as possibleThis equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5mm between the radiator and your body.

POSITIONING SPEAKER:

• Make sure that front of speaker is not obstructed.
• Stand speaker upright on a flat, level, stable surface.
• Attach speaker to a metal surface via the magnets on the back of the unit. DO NOT mount to electrical equipment.
• Hang from a nail (or like item) by opening the Nail Hook and placing the Nail Hook over the head of the nail.

CHARGING DEVICES:
NOTE: For best results, use cable provided with your device.

1. Connect the cable to your device.
2. Connect the charging cable to the USB A Charge Out Port or USB C Charge In/Out Port . Your device will automatically begin charging. The device being charged should provide indication that charging has begun.
   1. Press and hold the Power button for 3 seconds to turn on the speaker; your device will begin charging.
   2. Press and hold the Power button again for 3 seconds and all functions will power off; your device will stop charging.
   3. When AEPJS3 is in Charge-Out-Only mode, it will automatically shut down once charging is complete and current is no longer being drawn by the device.

Repeat these steps to charge another device.
