Klein Tools AEPJS-1 Manual

INTRODUCTION

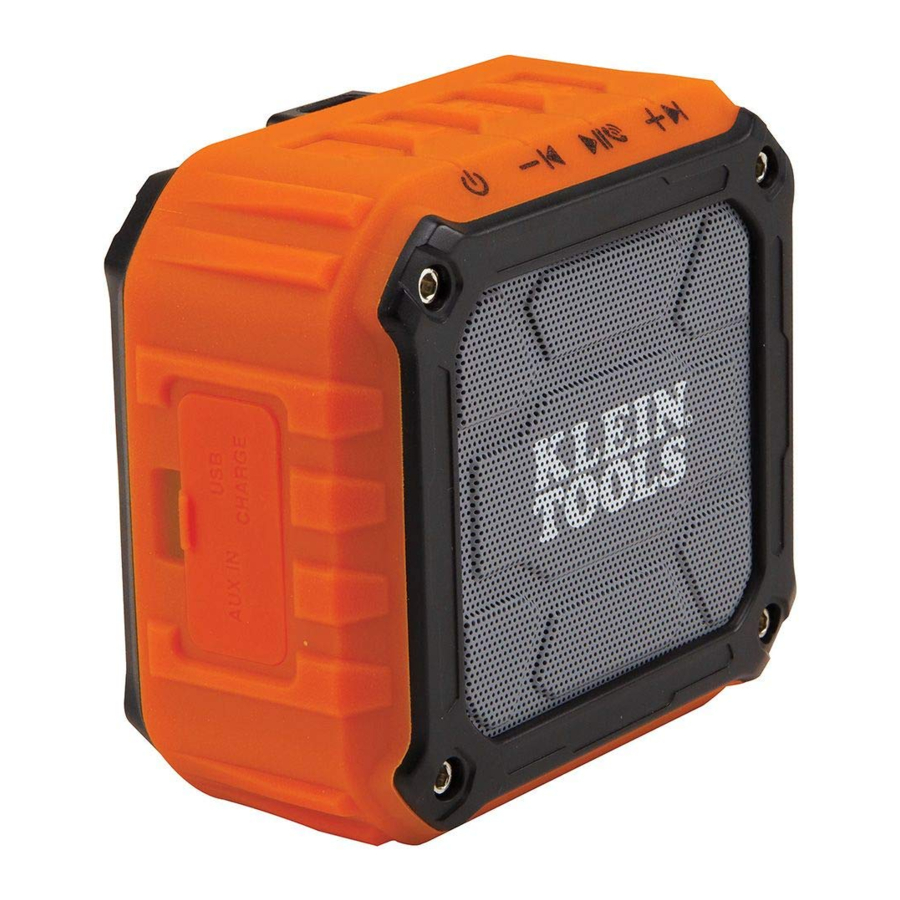

Klein Tools AEPJS-1 is a powered speaker designed to provide high-quality sound for smart phones, tablets, computers or other audio devices.

CONTENTS

• AEPJS-1 Wireless Speaker
• 24" (610 mm) Micro USB Cable
• 24" (610 mm) 1/8" (3.5 mm) Auxiliary Cable
• Instruction Sheet

GENERAL SPECIFICATIONS

• Dimensions: 3.88" x 3.5" x 2.13" (98.6 x 88.9 x 54.1 mm)
• Weight: 10 oz. (283 g)
• Wireless Compatibility: Devices with Bluetooth^® Version 4.2
• Wireless Connection Range: 32.8 ft. (10 m) in open space
• Support Profiles: A2DP, AVRCP, GAVDP, HFP
• Output Power: 5W
• Battery Type: Internal, Li-Ion, 3.7V / 2150mAh
• Battery Life: Approx. 10 to 13 hours at 70% volume
• Charging Requirements: Maximum 5V DC, Minimum 0.4A
• Certifications: CE, FCC, IC, & BC
• Operating/Charging Temperature: 32° to 104°F (0° to 40°C)
• Storage Temperature: -22° to 140°F (-30° to 60°C)
• Relative Humidity: <85% non-condensing
• Drop Protection: 6.6 ft. (2 m)
• Ingress Protection (IP) Rating: IP45

IP Rating 1st number (IP45): Protected against solid objects over 1 mm in diameter
IP Rating 2nd number (IP45): Protected against low-pressure jets of water from all directions Specifications subject to change.

Read, understand, and follow these instructions to ensure safe operation. Failure to observe these warnings can result in risk of fire or electric shock.

• Keep these instructions for future reference.
• No user-servicable parts inside. Do not open enclosure or attempt to repair this speaker.
• Never lubricate any part of this speaker.
• Never place this speaker on other electrical equipment.
• Do not expose to direct sunlight, open flame, heat sources, equipment that produces heat, or extremes in environmental temperature.
• Never immerse in water or other liquids. Avoid spilling liquids or falling foreign objects into openings or vents on the speaker enclosure.
• Water-resistant cover must be properly sealed to achieve specified water & foreigh object ingress protection. Keep seal free of dirt, oil, sand, or other material that interferes with proper sealing. Failure to do so can result in risk of fire or electric shock.
• Do not open water-resistant cover if wet or in a wet environment. Dry the speaker thoroughly and the seal around water-resistant cover completely before opening water-resistant cover .
• When speaker is in use or charging, make sure there is adequate space to allow ventilation of internally-generated heat.
• Use safety-rated power supply or wall adapter. Never use power supply or wall adapter that exceeds the specified charging voltage and current.
• Route the power supply cable so that it will not to be stepped on or pinched by other objects.

SYMBOLS ON PRODUCT

	Warning or Caution
	Risk of Electrical Shock
	Conformité Européenne. Conforms with European Economic Area directives.
	WEEE – battery disposal
	FCC. Conforms with particular Code of Federal regulations.
	Conforms with BCS regulations of California Energy Commission.

FEATURE DETAILS

1. Power button
2. "-" Volume down/skip backward button
3. Play/Pause/Talk button
4. "+" Volume up/skip forward button
5. USB charging port
6. Auxiliary "Aux In" jack
7. Water-resistant cover

8. LED indicator
9. Microphone
10. Lanyard tie point
11. 1/4-20 mount
12. Magnet
13. Tool bag mounting flange

MAINTENANCE

CLEANING: Be sure speaker is turned off and wipe with a clean, dry lint-free cloth. Do not use abrasive cleaners or solvents.
STORAGE: If the speaker is to be left unused for an extended period of time, charge before storing, and recharge periodically during storage, to maintain battery's charging capacity.
WARRANTY www.kleintools.com/warranty

CUSTOMER SERVICE

KLEIN TOOLS, INC.
450 Bond Street, Lincolnshire, IL 60069
1-877-775-5346
customerservice@kleintools.com
www.kleintools.com

OPERATING INSTRUCTIONS

CHARGING BATTERY
Fully charge speaker before use. First-time charge should be at least 4 hours.
Connect micro USB cable connection to USB charging port , plug the other end of cable to computer or USB AC adapter or other USB power supply (not included). USB adapter/power supply should not exceed the specified charging voltage and current (Max. 5V DC, min. 0.4A). Normal charging time is 4 - 6 hours.

NOTE: LED may appear purple or yellow if battery is low or is charging.
ON/OFF: Press & hold power button for 3 seconds, a tone will sound. Unit will automatically power off after 10 minutes of inactivity. NOTE: Turn unit off when not in use to prolong battery life.
PAIRING: Wireless connection activates automatically and is ready to pair when unit is turned on. On your Bluetooth^® wireless compatible device, enable Bluetooth^® and search/scan for devices that can be paired. Select "AEPJS1" when it appears (refer to the user manual of your device). If necessary, enter "0000" as pairing passcode. A tone sounds after a successful pairing.
NOTE: Unit automatically attempts to connect the last wireless device but is ready to pair with any compatible device if the last paired device is not detected within 5 seconds of powering on.

DISCONNECT PAIRING:

1. Turn unit off; -or-
2. Double-press Power Button (tone sounds); -or-
3. Plug a cable into Aux jack ; -or-
4. turn off Bluetooth^® wireless connection in paired device.

RESET WIRELESS CONNECTION OR PAIRING WITH DIFFERENT DEVICES: Double-press Power Button (tone sounds). Repeat Pairing procedure with different devices.

PLAYING AUDIO: Use your device to control the speaker or use the built-in control buttons on the speaker.

• Press Play/Pause/Talk button to play or pause audio on your device.
• Short-press the "-" or "+" button to adjust the speaker volume. A tone will sound when maximum volume is reached. Volume may also be controlled from your audio device.
• Long press the "-" or "+" button to skip backward or forward (respectively) during a song.

AUXILIARY AUDIO-IN: Connect one end of the auxiliary cable to the AUX jack of the speaker, plug the other end of cable to line-out or headphone jack of your device.

SPEAKERPHONE OPERATION:

• When an incoming call occurs, playing music is muted & ring tone sounds. Short-press Play/Pause/Talk button to answer the call, or long-press to ignore.
• To disconnect the call, short press the Play/Pause/Talk button to hang up.
• To redial last call, long press Play/Pause/Talk button when speaker is playing music.

LOW BATTERY INDICATION: A continuous double-beep tone will sound when battery level drops to approximately 10%. Speaker will automatically power off when the battery level is below 3%. Recharge speaker as soon as possible.

POSITIONING SPEAKER:

• Make sure that front of speaker is not obstructed.
• Stand speaker upright on a flat, level, stable surface.
• Attach speaker to a metal surface via the magnet on the back of the unit . DO NOT mount to electrical equipment.
• Mount speaker to any tripod or stand that uses a standard 1/4-20 threaded mounting screw, via the 1/4-20 mount on the bottom of the unit.
• Mount speaker to the Klein Tools Lighted Tool Bag, Cat. No. 55431. To attach speaker to tool bag, first remove worklight from bag by rotating counter-clockwise. Align tabs on mounting flange on the back of the speaker with mounting hole on bag and rotate clockwise to secure in place.
