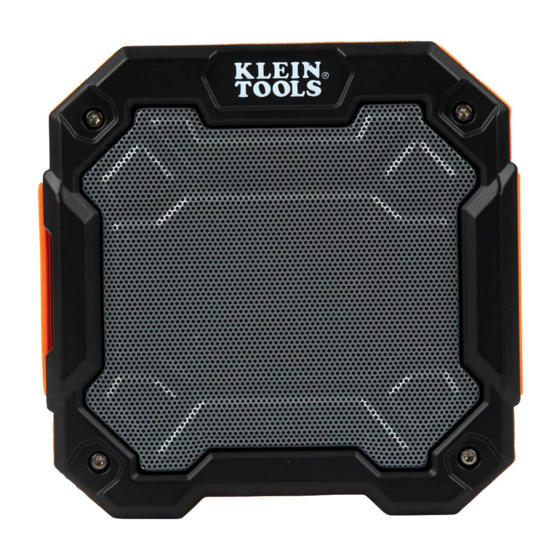

Klein Tools AEPJS3 Instructions

Klein Tools AEPJS3 is a powered speaker designed to provide high-quality
sound for smart phones, tablets, computers, or other audio devices. The
AEPJS3 will also charge common mobile devices like cell phones, tablets,
headphones, and other smaller USB devices.
• AEPJS3 Bluetooth Speaker
®
• 39.4" (1000mm) USB-A to USB-C Cable
• 23.6" (600mm) 1/8" (3.5 mm) Auxiliary Cable
• Instruction Sheet
GENERAL SPECIFICATIONS
• Dimensions: 5.46" x 5.37" x 2.33" (139 x 136 x 59 mm)
• Weight: 1.14 lb. (517 g)
• Wireless Compatibility: Devices with Bluetooth
• Wireless Connection Range: 100 ft. (30 m) in open space
• Support Pro les: AD2P, AVRCP, HFP, SPP
• Battery Type: Internal, Li-Ion, 3.63V / 5200mAh
• Battery Life: 20+ hours at 70% volume
• Certi cations: CE, FCC, IC, BC, NOM
• Operating/Charging Temperature: 32° to 104°F (0° to 40°C)
• Storage Temperature: -22° to 140°F (-30° to 60°C)
• Relative Humidity: <85% non-condensing
• Drop Protection: 6.6' (2 m)
• Ingress Protection (IP) Rating: IP54
Specifications subject to change.
Read, understand, and follow these instructions to ensure safe operation.
Failure to observe these warnings can result in risk of fire or electric
shock. Keep these instructions for future reference.
• No user-serviceable parts inside. Do not open enclosure or attempt to
repair this speaker.
• Never lubricate any part of this speaker.
• Do not expose to direct sunlight, open flame, heat sources, equipment
that produces heat, or extremes in environmental temperature.
• Never immerse in water or other liquids. Do not allow liquids, dust or
debris to enter openings or vents on the speaker enclosure.
• Water-resistant cover must be properly sealed to achieve specified
water & foreign object ingress protection. Keep seal free of dirt, oil,
sand, or other material that interferes with proper sealing. Failure to do
so can result in risk of fire or electric shock.
• Do not open water-resistant cover if wet or in a wet environment.
Dry the speaker thoroughly and the seal around water-resistant cover
completely before opening water-resistant cover.
• When speaker is in use or charging, make sure there is adequate space
to allow ventilation of internally generated heat.
• Use safety-rated power supply or wall adapter. Never use power supply
or wall adapter that exceeds the specified charging voltage and current.
• Route the power supply cable so that it will not to be stepped on or
pinched by other objects.
SYMBOLS ON PRODUCT
Warning or Caution
Risk of Electrical Shock
Conforms with particular Code of Federal regulations
Meets CEC and DOE energy ef ciency requirements
BC
Canada Energy Ef ciency Veri ed
This product has been independently tested by Intertek and
meets applicable published standards
NOM-NYCE – IFETEL
Do not place equipment and its accessories in the trash
Recycle
Conformité Européenne: Conforms with
European Economic Area directives
FEATURE DETAILS (FIG.A)
1 Power Button
2 Skip Backward Button
3
Play/Pause/Talk Button
4
Skip Forward Button
5
Daisy Chain Button
6
"-" Volume Down Button
7
"+" Volume Up Button
8 Voice Control Button
9 Bluetooth LED Indicator
®
1.800.561.8187
CONTENTS
Version 4.2
®
WARNINGS
Strong Magnetic Field
Read Manual
10 Battery Status Indicator
11 Daisy Chain LED Indicator
12
Nail Hook
13
Magnets (×2)
14
Auxiliary "Aux In" Jack
15
USB A Charge Out Port
16
USB C Charge In/Out Port
17 Water/Dust-Resistant Cover
www.
Bluetooth Speaker with Magnet and Hook – Instructions
®
FIG. A
TOP
9 1 2 3
10 6
BACK
13
13
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth
®
SIG, Inc. and any use of such marks by Klein Tools, Inc. is under license.
CLEANING: Be sure speaker is turned off and wipe with a clean, dry
lint-free cloth. Do not use abrasive cleaners or solvents.
STORAGE: If the speaker is to be left unused for an extended period of
time, charge before storing, and recharge periodically during storage, to
maintain battery's charging capacity.
DISPOSAL / RECYCLE
Do not place equipment and its accessories in the trash. Items must
be properly disposed of in accordance with local regulations. Please
see epa.gov/recycle for additional information.
information@itm.com
.com
AEPJS3
SIDE
4 5 11
15
7 8
14
16
12
17
BOTTOM
MAINTENANCE
®
