Klein Tools AEPJS3 Instructions

ENGLISH

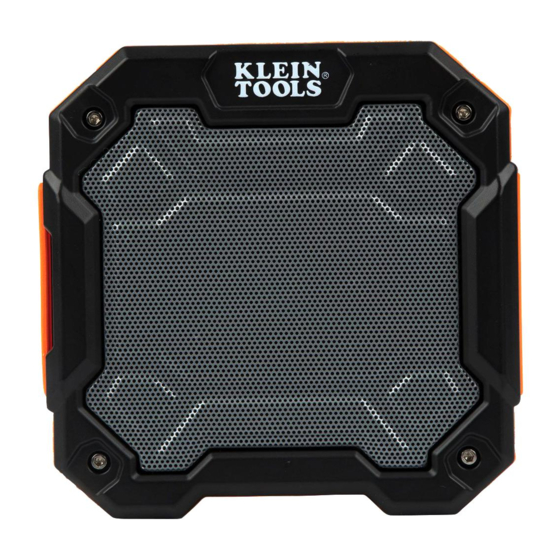

Klein Tools AEPJS3 is a powered speaker designed to provide high-quality
sound for smart phones, tablets, computers, or other audio devices. The
AEPJS3 will also charge common mobile devices like cell phones, tablets,
headphones, and other smaller USB devices.
CONTENTS
• AEPJS3 Bluetooth Speaker
®
• 39.4" (1 m) USB Type C
• 23.6" (600 mm) 1/8" (3.5 mm) Auxiliary Cable
• Instruction Sheet

GENERAL SPECIFICATIONS

• Dimensions: 5.46" x 5.37" x 2.33" (138.6 x 136.4 x 59.2 mm)
• Weight: 1.14 oz. (520 g)
• Wireless Compatibility: Devices with Bluetooth Version 4.2
®
• Wireless Connection Range:
100 ft. (30 m) in open space
• Support Profi les: AD2P, AVRCP, HFP, SPP
• Output Power:
15W
• Battery Type: 63
Internal, Li-Ion, 3. V / 5200mAh
• Battery Life:
Approx. 20 hours at 70% volume
• Charging Requirements:
Maximum 5V DC, Minimum 1A
• Certifi cations: CE, FCC, IC, & BC, NOM
• Operating/Charging Temperature: 32° to 104°F (0° to 40°C)
• Storage Temperature: -22° to 140°F (-30° to 60°C)
• Relative Humidity: <85% non-condensing
• Drop Protection: 6.6' (2 m)
• Ingress Protection (IP) Rating: IP54
Specifications subject to change.

WARNINGS

Read, understand, and follow these instructions to ensure safe operation.
Failure to observe these warnings can result in risk of fire or electric shock.
• Keep these instructions for future reference.
• No user-serviceable parts inside. Do not open enclosure or attempt to
repair this speaker.
• Never lubricate any part of this speaker.
• Never place this speaker on other electrical equipment.
• Do not expose to direct sunlight, open flame, heat sources, equipment that
produces heat, or extremes in environmental temperature.
• Never immerse in water or other liquids. Avoid spilling liquids or falling
foreign objects into openings or vents on the speaker enclosure.
• Water-resistant cover must be properly sealed to achieve specified water &
foreign object ingress protection. Keep seal free of dirt, oil, sand, or other
material that interferes with proper sealing. Failure to do so can result in
risk of fire or electric shock.
• Do not open water-resistant cover if wet or in a wet environment. Dry the
speaker thoroughly and the seal around water-resistant cover completely
before opening water-resistant cover.
• When speaker is in use or charging, make sure there is adequate space to
allow ventilation of internally generated heat.
• Use safety-rated power supply or wall adapter. Never use power supply or
wall adapter that exceeds the specified charging voltage and current.
• Route the power supply cable so that it will not to be stepped on or pinched
by other objects.
SYMBOLS ON PRODUCT
Warning or Caution
Strong Magnetic Field
Risk of Electrical Shock
Read Manual
Conforms with particular Code of Federal regulations
BC Meets CEC and DOE energy effi ciency requirements
Canada Energy Effi ciency Verifi ed
This product has been independently tested by Intertek and meets
applicable published standards
NOM-NYCE – IFETEL
WEEE – Battery disposal
Conformité Européenne: Conforms with
European Economic Area directives
FEATURE DETAILS (FIG.A)
1 10
Power Button Battery Status Indicator
2 Skip Backward Button 11 Daisy Chain LED Indicator
3 Play/Pause/Talk Button 12 Nail Hook
4 13
Skip Forward Button Magnets (×2)
5 14
Daisy Chain Button Auxiliary "Aux In" Jack
6 "-" Volume Down Button 15 USB A Charge Out Port
7 16
"+" Volume Up Button USB C Charge In/Out Port
8 Voice Control Button 17 Water/Dust-Resistant Cover
9 Bluetooth LED Indicator

MAINTENANCE

CLEANING:
Be sure speaker is turned off and wipe with a clean, dry lint-
Do not use abrasive cleaners or solvents.
free cloth.
STORAGE: If the speaker is to be left unused for an extended period of time,
charge before storing, and recharge periodically during storage, to maintain
battery's charging capacity.
OPERATING INSTRUCTIONS
CHARGING BATTERY
Fully charge speaker before use. First-time charge should be at least 4 hours.
Connect the USB Type C cable connection to USB charging port 6
other end of cable to computer or USB AC adapter or other USB power supply
(not included). USB adapter/power supply should not exceed the specified
charging voltage and current (Max. 5V DC, min. 1A). Normal charging time is 3.25
to 4.25 hours. The battery level indicator will illuminate to indicate charging status
(see tables below).
CHARGING STATUS LED INDICATORS
Not
Illuminated Solid Yellow Solid Green Solid Red Blinking
LED Status % Charged
Not illuminated
Not illuminated
0% to 24% charged
Not illuminated
Blinking red
Not illuminated
Not illuminated
25% to 49% charged
Cascading Yellow
Cascading red
Not illuminated
Cascading Green
50% to 74% charged
Cascading Yellow
Cascading red
Cascading Green
Cascading Green
75% to 99% charged
Cascading Yellow
Cascading red
Solid Green
Solid Green
100% charged
Solid Yellow
Solid red
ON/OFF: Press & hold power button 1 for 3 seconds, a tone will sound. Unit
will automatically power off after 20 minutes of inactivity.
NOTE: Turn unit off when not in use to prolong battery life.
PAIRING: Wireless connection activates automatically and is ready to pair when unit
is turned on. On your Bluetooth wireless compatible device, enable Bluetooth
®
search/scan for devices that can be paired. Select "AEPJS3" when it appears (refer to
the user manual of your device). If necessary, enter "0000" as pairing passcode. A tone
sounds after a successful pairing.
NOTE: Unit automatically attempts to connect the last paired wireless device
device but is ready to pair with any compatible device if the last paired device
is not detected within 5 seconds of powering on.
DISCONNECT PAIRING:
1) Turn unit off; -or
2) Double-press Power Button 1 . Bluetooth LED Indicator 9 will blink; -or
3) Plug a cable into Aux jack ; -or
14
4) turn off Bluetooth wireless connection in paired device.
®
RESET WIRELESS CONNECTION OR PAIRING WITH DIFFERENT DEVICES:
Double-press Power Button 1 (tone sounds). Repeat Pairing procedure with
different devices.
ESPAÑOL
; plug the
Cascading
and
®
FRANÇAIS
AEPJS3
Bluetooth ® Speaker with Magnet and Hook – Instructions
SPANISH - Bluetooth Speaker with Magnet and Hook – Instructions
®
FRENCH - Bluetooth Speaker with Magnet and Hook – Instructions
®
FIG. A
TOP / SPANISH / FRENCH
9 1 2 3 4 5 11
10 6 7 8
BOTTOM / SPANISH / FRENCH
15 14 16
BACK / PARTE POSTERIOR / ARRIÈRE
13
13
1390371 Rev 06/20 A
17
12
