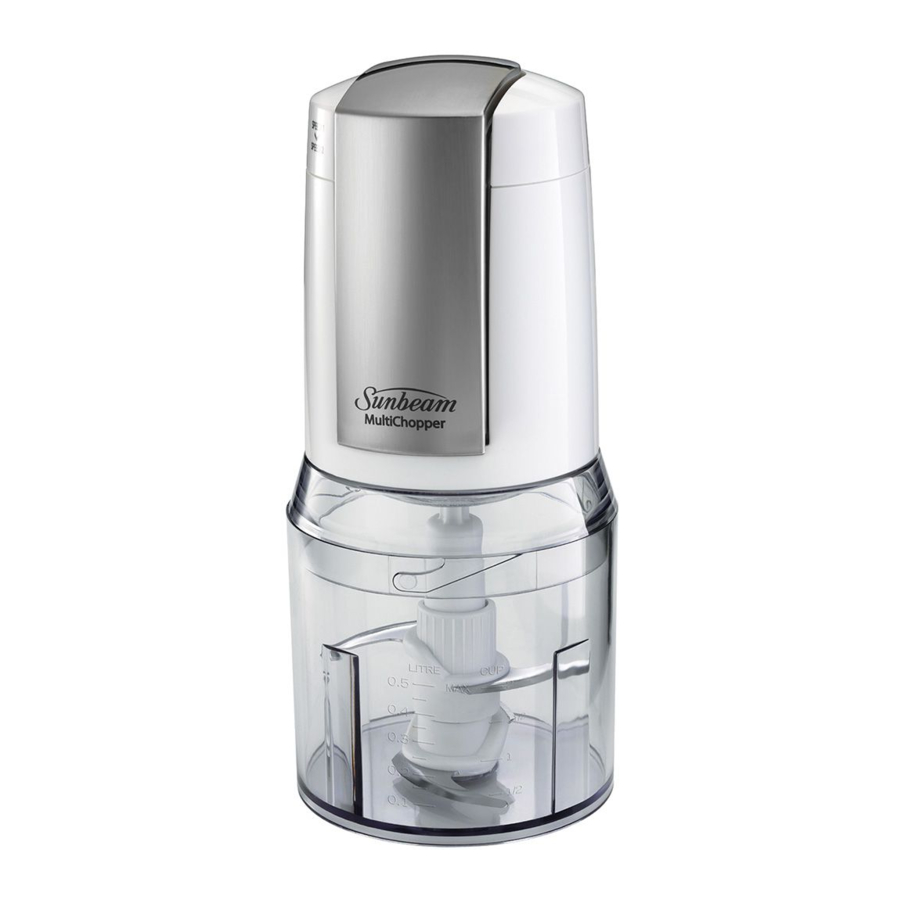

Sunbeam MultiChopper FC7500 - Food Chopper Manual

Sunbeam's Safety Precautions

SAFETY PRECAUTIONS FOR YOUR SUNBEAM MULTICHOPPER FOOD CHOPPER.

• Always operate on a flat surface.
• Do not operate the appliance without the cover in place.
• Do not remove the motor housing from the jug while the blades are still in motion.
• Do not use the appliance continuously for more than 30 seconds at a time with heavy loads.
• Use extreme care when handling blades as they are extremely sharp.
• Do not blend hot ingredients.
• Misuse can cause potential injury.

Sunbeam is very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

• Read carefully and save all the instructions provided with an appliance.
• Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord.
• Turn the power off and remove the plug when the appliance is not in use and before cleaning.
• Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
• Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The temperature of accessible surfaces may be high when the appliance is operating.
• Never leave an appliance unattended while in use.
• Do not use an appliance for any purpose other than its intended use.
• Do not place an appliance on or near a hot gas flame, electric element or on a heated oven.
• Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.
• Do not operate any electrical appliance with a damaged cord or after the appliance has been damaged in any manner. If damage is suspected, return the appliance to the nearest Sunbeam Appointed Service Centre for examination, repair or adjustment.
• For additional protection, Sunbeam recommend the use of a residual current device (RCD) with a tripping current not exceeding 30mA in the electrical circuit supplying power to your appliances.
• Do not immerse the appliance in water or any other liquid unless recommended.
• Appliances are not intended to be operated by means of an external timer or separate remote control system.
• This appliance is intended to be used in household or similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

If you have any concerns regarding the performance and use of your appliance, please visit www.sunbeam.com.au; or contact the Sunbeam Consumer Service Line.

Ensure the above safety precautions are understood.

Features of your MultiChopper^™

Using your MultiChopper^™

Food Chopper

Wash the processing bowl and blades in warm soapy water. Rinse well and dry thoroughly.

Using the double blade attachment

1. Place the non-slip pad on a flat level surface and position the processing bowl on top of it. Remove protective cover from blades.
2. Place the lower blade over the shroud in the centre of the processing bowl. See Figure 1.


3. Position the upper blade on top of the lower blade. See Figure 2.

   NOTE: Whether the upper blade is used will depend on the chopping task.

4. Place the food items to be chopped inside the processing bowl. Large portions should be cut into small pieces before chopping, approximately 3cm cubes.
   NOTE: Do not operate the appliance when the processing bowl is empty.
5. Place the processing bowl cover on top of the processing bowl and rotate clockwise until the two parts are interlocked.

Press the power button gently to process on speed 1.

Press the power button firmly to process on speed 2.

NOTE: If the ingredients stick to the sides of the processing bowl during chopping, scrape down the sides of the bowl with a spatula, then continue chopping.

Do not hold the power button down to process continuously for more than 30 seconds at any one time with heavy loads. When pulsing, the recommended pulse duration is 2 seconds on and 2 seconds or longer off.

8. When you have finished chopping, turn the power off at the power outlet. Remove the motor housing from the bowl. Remove the processing bowl cover. Carefully remove the blades.

Chopping Guide

The table below provides a guide to maximum quantities and chopping times for a variety of foods. The table is a guide only. Chopping times may vary according to the result you want to achieve.

• All maximum quantities have been tested with the quad blade on speed 2.
• Times, blade and speed may need to be adjusted for less quantities.
• Maximum liquid quantity is ½ cup (125mls).

Care and Cleaning

• Always turn the power off and remove the plug from power outlet after use and before cleaning.

  Use caution when handling blades as they are extremely sharp.
• Wipe the motor housing with a damp cloth.
• The centre spindle of the chopping blades may become stained over time, particularly if chopping coloured foods such as carrots. This discolouration is quite normal and will not affect the performance of your chopper. To reduce staining, clean the spindle with a paper towel moistened with vegetable oil.
• Wash the processing bowl and blades in warm soapy water. We do not recommend to place any parts in the dishwasher.
