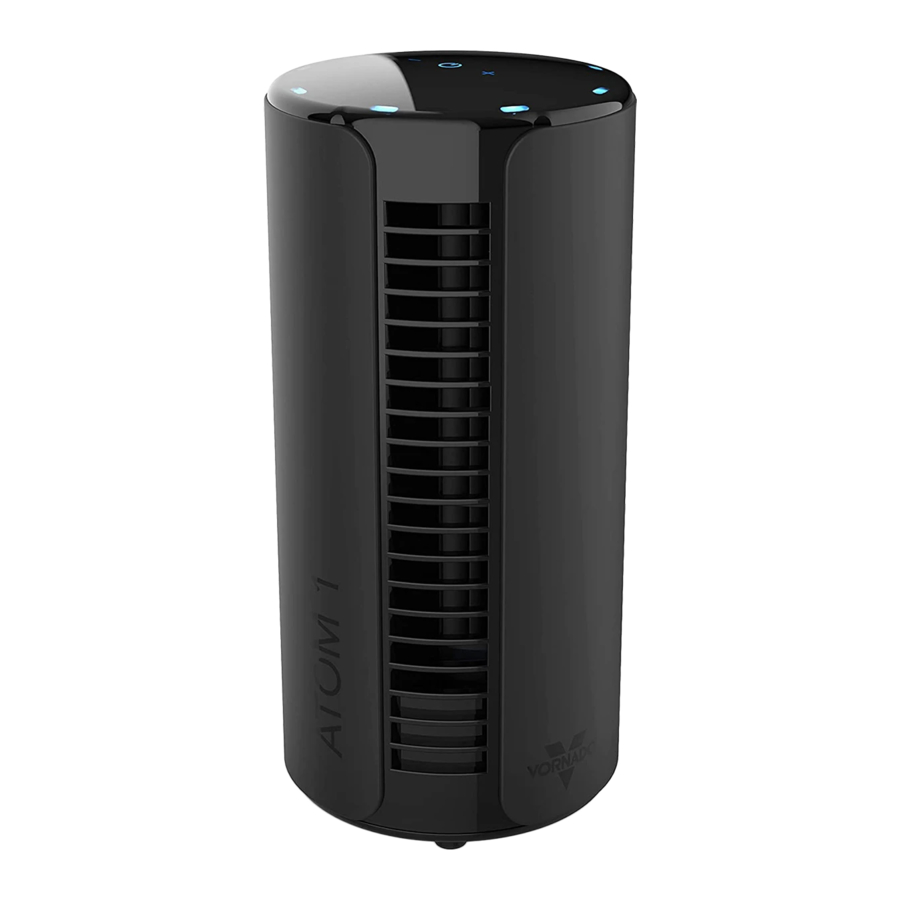

Vornado ATOM 1 - Compact Oscillating Tower Circulator Manual

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS
This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner.

INTENDED USE: This product is intended to circulate the air in indoor living spaces only in the United States and Canada. This product is not intended for commercial or industrial use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or product modification. Failure to follow these directions will void the product warranty.

Risk to Children and Impaired Persons

• Supervision is required during the installation, operation, cleaning and maintenance of this product by children age 12 and younger and anyone with reduced physical, sensory or mental capabilities. Children should be supervised to ensure that they do not play with the appliance, its parts and packaging material.

INSTALLATION WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

• Place this product away from curtains, draperies, tablecloths and other fabrics, since they may be drawn into the fan, damage the motor and/or cause a fire.
• No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, fireplaces, stoves or other high temperature heat sources. Do not use this product in a window, on an uneven or unstable surface, or near water.
• The appliance, power supply, power cord and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower or position product where it may fall into a bathtub, laundry, swimming pool or other water container. Do not use this product outdoors or expose it weather or elements.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. The cord should not hang over edges of counters or be placed where it can be crimped or closed in doors. Place appliance near an easily accessible outlet so the product can be unplugged quickly during an emergency.

SAFE USE WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

•
  To reduce likelihood of circuit overload, fire and electric shock, do not operate with a solid state speed device, such as a dimmer control switch.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. Do not operate unit if it has been dropped or if damage is apparent to any part of the unit. To avoid risk of electrical shock, do not attempt to repair or replace parts. Only original replacement parts may be used. Contact Vornado Consumer Service at 1-800-234-0604 (phone) or consumerservice@vornado.com (email) for further instructions about replacement and repair.
• Risk of fire. Your appliance is equipped with a detachable power supply. Use only the power supply unit provided with the appliance.
• Before plugging power cord into electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet's power supply.
• Never use the cord as a handle or otherwise yank, strain or stretch the power cord.
•
  While the product is plugged in, do not insert or allow foreign objects to enter any input or output opening as this may cause risk of electric shock or fire, or damage the product.
• A loose fit between wall outlet (receptacle) and plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet.
  Contact a qualified electrician to replace loose or worn outlets.
• Before moving, repositioning, servicing, cleaning and when not in use, use the product controls to turn off the power and then unplug. To disconnect from outlet, grasp and pull only the plug. Also, power off and unplug if the product will be left unattended for an extended period of time or during electrical storms.

SERVICING WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

• Clean your product regularly, only as is instructed in this manual. Prior to cleaning, turn off the power on your product and unplug. Do not use gasoline, thinners, solvents, ammonias or other chemicals for cleaning. Refer to the CLEANING instructions provided.
• Do not open appliance housing while product is plugged in. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center.
• Risk of fire. Do not replace attachment plug.

SAVE THESE INSTRUCTIONS

FEATURES

FINGER FRIENDLY DESIGN
Resists curious fingers.

GESTURAL TOUCH-SENSITIVE CONTROLS
Simple controls with a sleek aesthetic.

MULTIPLE SPEEDS
4 speed settings for every comfort level.

ADJUSTABLE OSCILLATION
90°/180°/270°/360° or infinite oscillating airflow.

DC MOTOR
Quiet and energy efficient.

AUTO DIMMING DISPLAY
Reduces light pollution.

SILICONE FEET
Non-marking feet added for stability.

HOW TO USE

1. Insert power cord plug into port that extends from the bottom of the product. Plug the power cord into a power outlet.
2. Touch ( ) to power ON or OFF. Your circulator returns to last saved memory setting.
3. Select desired speed by pressing -/+. Speed is indicated by number of white LEDS as shown on the display.

4. Swipe any area along the control panel perimeter to turn ON oscillation and select desired oscillation angle and direction of airflow. Select 90°/180°/270°/360° or infinite 360° oscillating airflow in either direction. The oscillation angle and direction of airflow is indicated by the blue LEDS as shown on the display.

5. Press and hold anywhere along the control panel perimeter for 2 seconds to turn OFF oscillation.

6. Double tap at any area along the control panel perimeter for targeted airflow. The airflow will then point where directed.
   Note: The display will dim after 3 seconds of inactivity and reawaken with any touch to the control panel.

CLEANING

Because your ATOM 1 moves a substantial amount of air, it will need regular cleaning.
The fan has no user serviceable parts inside and cannot be opened for cleaning.
Never clean the product in any manner other than instructed in this owner's guide.

To reduce the risk of electrical shock and injury to persons, unplug the unit before cleaning.

1. Power off and unplug the unit prior to cleaning.
2. Dust or wipe the circulator with a damp cloth.
3. Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust.

Note: The motor is permanently lubricated and requires no oiling.

STORAGE

During the off-season or after extended periods of non-use, you may choose to store your circulator. To ensure long life of the product, it is recommended to store your circulator by following these instructions:

Tip
Cleaning is recommended before storage.

1. Unplug power cord and bundle loosely.
2. Cover, or place back in retail carton if available. This prevents circulator from accumulating dust over time.
3. Store circulator in cool and dry location.

TROUBLESHOOTING

Supplier's FCC Declaration of Conformity

Unique Identifier: Vornado Model ATOM 1
Responsible Party: Vornado Air LLC
Mailing Address: 415 E. 13th St., Andover, KS 67002
Contact: www.vornado.com

vornado.com
800.234.0604
help@vornado.com
