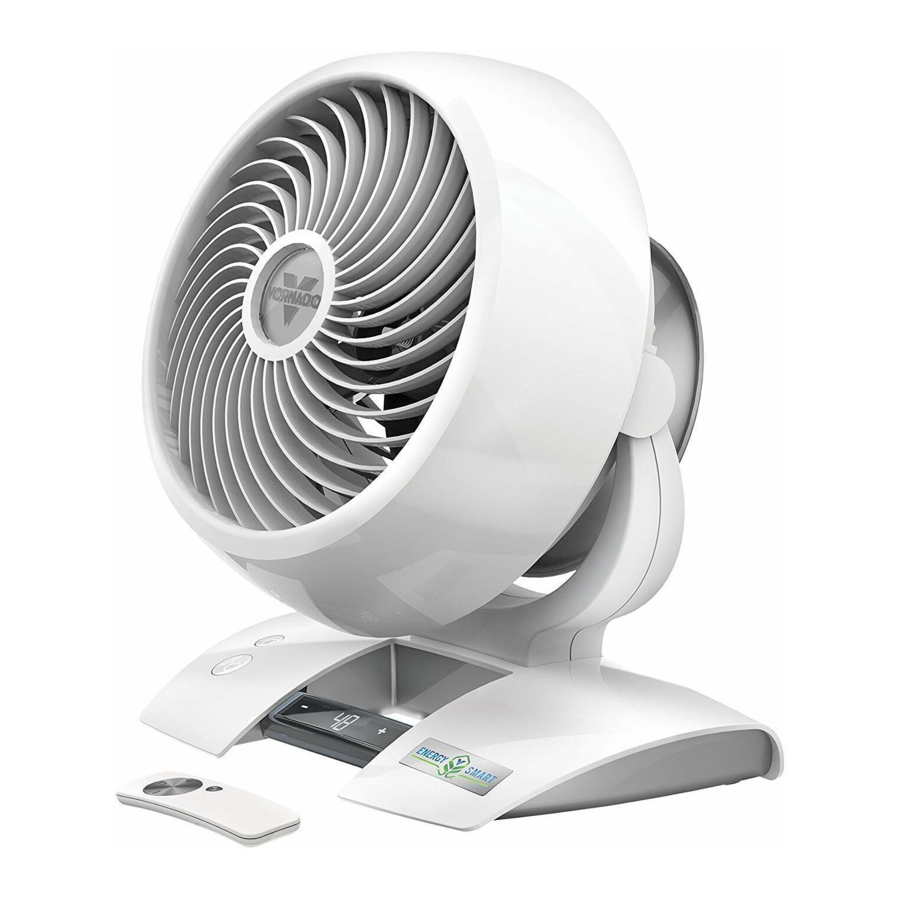

Vornado 5303DC, 6303DC, 6803DC - Air Circulator Manual

Vornado 5303DC, 6303DC, 6803DC - Air Circulator Manual

Also See for 5303DC:

Advertisement

Vornado 5303DC, 6303DC, 6803DC - Air Circulator Manual

SAFETY INSTRUCTIONS

INTENDED USE

This product is intended to circulate the air in indoor living spaces only in the United States and Canada. This product is not intended for commercial or industrial use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or product modification. Failure to follow these directions will void the product warranty.


Risk to Children and Impaired Persons
Supervision is required during the installation, operation, cleaning and maintenance of this product by children 12 years of age and younger and anyone with reduced physical, sensory or mental capabilities. Children should be supervised to ensure that they do not play with the appliance, its parts and packaging material.


Chemical burn hazard. Keep batteries away from children.

KEEP NEW AND USED BATTERIES AWAY FROM CHILDREN. This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. In the US call the National Poison Control Center at 1-800-222-1222 or 202625-3333. In Canada call 416-813-5900.

INSTALLATION WARNING


To reduce risk of fire, electrical shock and injury to persons, observe the following:

  • Place this product away from curtains, draperies, tablecloths and other fabrics, since they may be drawn into the product, damage the motor and/or cause a fire.
  • No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, fireplaces, stoves or other high temperature heat sources. Do not use this product in a window, on an uneven or unstable surface, or near water.
  • The appliance, power supply, power cord and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower or position product where it may fall into a bathtub, laundry, swimming pool or other water container. Do not use this product outdoors or expose it to weather or elements.
  • Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. The cord should not hang over edges of counters or be placed where it can be crimped or closed in doors. Place appliance near an easily accessible outlet so the product can be unplugged quickly during an emergency.

SAFE USE WARNING


To reduce risk of fire, electrical shock and injury to persons, observe the following:


  • To reduce likelihood of circuit overload, fire and electric shock, do not operate with a solid state speed device, such as a dimmer control switch.
  • Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
  • Do not operate unit if the unit has been dropped or damaged. Do not use this product if it has a damaged power cord or plug. To avoid risk of electrical shock, do not attempt to repair or replace parts. Only original replacement parts may be used. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Vornado Consumer Service at 1-800-234-0604 (phone) or consumerservice@vornado.com (email) for further instructions about replacement and repair.
  • Risk of fire. Your appliance may be equipped with a detachable power supply or a cord/plug with a safety device such as a fuse. Use only the power cord and plug provided. The detachable external power supply and cord have no user replaceable parts.
  • Before plugging power cord into electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet's power supply.
  • Do not sit or stand on product.
  • Never use the cord as a handle or otherwise yank, strain or stretch the power cord.
  • While the product is plugged in, do not insert or allow foreign objects to enter any input or output opening as this may cause risk of electric shock or fire, or damage the product.
  • A loose fit between wall outlet (receptacle) and plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact a qualified electrician to replace loose or worn outlets.
  • This appliance (models 5303DC, 6303DC only) has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
  • Before moving, repositioning, servicing, cleaning and when not in use, use the product controls to turn off the power and then unplug. To disconnect from outlet, grasp and pull only the plug. Also, power off and unplug if the product will be left unattended for an extended period of time or during electrical storms.

SERVICING WARNING


To reduce risk of fire, electrical shock and injury to persons, observe the following:

  • Clean your product regularly, only as is instructed in this manual. Prior to cleaning, turn off the power on your product and unplug. Do not use gasoline, thinners, solvents, ammonias or other chemicals for cleaning. Refer to the CLEANING instructions provided.
  • Do not open appliance housing while product is plugged in. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center.
  • This product (models 5303DC, 6303DC only) employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

User Servicing Instructions

  1. Using the product controls, turn off the appliance.
  2. Grasp the plug (not the cord) and disconnect from the outlet.
  3. Risk of Fire. Replace fuse only with 2.5 Amp, 125 Volt fuse as approved by Vornado Consumer Service. For an authorized replacement fuse, please contact Vornado Consumer Service.
  4. Once the replacement is received, use a small flat-head screwdriver to slide open the fuse cover (located on the plug) (See Fig. A).
  5. Remove fuse by using the screwdriver to gently lift each end of the fuse (See Fig. B).
  6. Install the replacement fuse by using the screwdriver to gently push each metal end of the fuse into the receptacle one at a time. Do not push on the center of the fuse—it is fragile and may break.
  7. Slide the fuse cover closed using the screwdriver. When closed, the cover should fit completely in the plug. No part of the cover should stick out (See Fig. C).
  8. Plug your appliance into the outlet and turn the power on.
  9. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

Risk of fire. Do not replace attachment plug. Contains a safety device (fuse, AFCI, LCDI) that should not be removed. Discard product if the attachment plug is damaged.

GETTING STARTED

Installing Circulator Head

(Model 6803DC Only)
No tools required!
Installing Circulator Head - Model 6803DC

  1. Gently place the circulator head face down on the ground on a soft cloth to avoid scratches or damages to the unit. Insert power cord into the top of pole (A) and pull through the bottom (B). Align the Lock Release Button (C) on circulator head with the hole (D) located on the pole. Push the pole onto the circulator head until the Lock Release Button snaps into place.

Stand Assembly

(Model 6803DC Only)
Stand Assembly - Model 6803DC

  1. The upper pole and lower pole are pre-assembled, with the fastening nut (E) secured on the underside of the base. Rotate fastening nut counter- clockwise to remove.
  2. The legs are designed to fit into the grooves (F) on the underside of the base cap. Assemble all the legs onto the pole, then replace fastening nut by rotating clockwise to secure all the legs in place.

Cord Management

(Models 5303DC, 6303DC Only)

  1. Wrap cord around Air Accelerator, located on back of unit. Secure cord with three clips (G) located at 2, 6 and 10 o'clock positions.

Adjusting Height

(Model 6803DC Only)

  1. Before adjusting the height of the circulator, support the circulator head with one hand. Use your other hand to loosen the height adjustment collar by gently rotating it counter-clockwise.
  2. Slowly raise or lower the pole to the desired height and secure into position by rotating the adjustment collar clockwise until tight.
    Adjusting Height - Model 6803DC

FEATURES

FEATURES
DIRECTABLE AIRFLOW
Direct the airflow where you want it.
ENERGY-SAVING TIMER
1–12 hour timer.
TOUCH-SENSITIVE CONTROLS (99 SPEEDS)
A speed setting for every comfort level.
REMOTE CONTROL
Convenience at your fingertips.
CORD MANAGEMENT
Integrated cord wrap.
FINGER FRIENDLY DESIGN
Resists curious fingers.
SILICON FEET
Non-marking feet added for stability.

CONTROLS

Models 5303DC, 6303DC Only
Controls - Models 5303DC, 6303DC

Model 6803DC Only

  1. Insert DC power cord plug into port that extends from the bottom of circulator.
  2. Connect the AC power cord to the power supply.
  3. Plug the power cord into a power outlet.
    Controls - Model 6803DC
    Note: The external power supply may become slightly warm to the touch during normal operation.

HOW TO USE

  1. Touch to power on.
    Your circulator returns to last saved memory setting.
  2. Select desired speed by pressing -/+ . Press and hold -/+ to adjust speed up or down in 5 speed increments. Speed is indicated by number shown on Speed/ Timer Indicator Display.
  3. Press to activate timer. The illuminates and Speed/Timer Indicator Display flashes 0 to indicate Timer Adjustment Mode. While in this mode, select amount of time in one-hour intervals by pressing -/+. After three seconds, flashing stops and display shows hours to indicate timer is set. The display returns to the last speed selected. Touch to quickly tell how many hours are remaining on the timer.
  4. To adjust timer, repeat Step Three.
  5. To cancel timer, repeat Step Three and set timer for 0.

CORD MANAGEMENT

  1. Wrap cord around Air Accelerator, located on back of unit. Secure cord with three clips located at 2, 6 and 10 o'clock positions.

REMOTE CONTROL

Screwdriver required.
Your circulator remote includes (1) coin style 3V CR2032 battery. Battery comes pre-installed. Remove battery pull tab before first use.
Remote Control Overview

  1. For battery replacement, the remote requires one coin style 3V CR2032 battery. Always use the correct size and grade of battery for this product.
  2. To replace battery, open battery door on the back side of the remote control (you will need to loosen the small screw on door using a #1 Phillips screwdriver). If necessary, clean the battery contacts and also those of the device prior to battery installation. Remove any plastic protection from the battery and place it in the remote with the + side facing out. Ensure the battery is installed correctly with regard to polarity. Replace the battery door and screw.

Note: Remove battery from the remote control when not in use for an extended period of time and always remove dead battery immediately and replace with fresh. Do not store dead battery in remote.
The remote control functions are the same as the control panel on the circulator.
The remote requires a line-of-sight path to allow for the signal to be received by the circulator. Point the remote control at the display panel for best reception.

This product contains a button battery. If swallowed, it could cause severe injury or death in just 2 hours. Seek medical attention immediately.

GRILLE & BLADE REMOVAL

Screwdriver required.

To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille or blade.

REMOVABLE GRILLE

  1. Using a phillips head screwdriver, remove grille by unscrewing the 4 screws located along the perimeter of the inlet grille at roughly 2, 5, 7, and 10 o'clock positions. This will release the grille. To reattach, position grille so the logo in the center of the grille is straight. Align the Locator Pin to reconnect grille. Once aligned replace screws.
    Removable Grille - Unscrewing the 4 screws
  2. Dust or wash with a mild dishwashing soap. Do not place grille in the dishwasher. The excessive heat can distort the plastic.

BLADE REMOVAL

  1. It is possible to remove the blade should something accidentally get wrapped around the motor shaft. First, remove the nut from the shaft. Turn the nut clockwise to loosen. Pull the blade straight out from the shaft. When replacing, the blade can only go on the shaft one way. Be certain the flat side of the shaft aligns directly with the corresponding flat side on the blade's socket. Push the blade all the way on the shaft until it bottoms out. Do not use a hammer as this could result in bearing damage. Reinstall nut.
  2. Wipe blade with a damp cloth. If your Air Circulator is used in a greasy environment, such as a kitchen, mild soap or a common household cleaner may be necessary. Do not use solvents.

CLEANING

Because your product moves a substantial amount of air, it will need regular cleaning to remove lint, dust and grime. Never clean the product in any manner other than instructed in this owner's guide.

Observe the following safety information to avoid risks and property damage.

  • Do unplug your product before cleaning.
  • Do Not use gasoline, thinners, solvents, ammonias or other chemicals for cleaning.
  • Do Not attempt to repair or replace parts.

The motor is permanently lubricated and requires no oiling.

  1. Dust or wipe the circulator with a damp cloth.
  2. Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE AND SOLUTION
The unit fails to power on. Unit is not plugged in. Plug Power Cord into electrical outlet. Model 6803DC Only - Ensure the AC power cord is plugged into the power supply and ensure DC power cord is plugged into the circulator.
Ensure unit fan speed setting is selected.
Plug fuse has blown (USA Models 5303DC, 6303DC Only). Replace fuse. See USER SERVICING INSTRUCTIONS.
Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.
The outlet is worn or damaged. Try another outlet or contact a qualified electrician.
Airflow is weak or slow. Unit set to a low speed setting. Adjust to a higher speed setting.
Airflow is blocked. Remove obstruction.
Adjust direction of airflow towards the user.
GFCI has tripped. Under certain conditions, it is possible for a reset GFCI (Ground Fault Circuit Interrupter) outlet to trip when the user is changing speeds on a Vornado circulator. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified electrician to check the GFCI outlet.
Remote control is not working. The battery is dead. Replace with (1) new 3 volt CR2032 battery. Refer to REMOTE CONTROL.
The remote requires a line-of-sight path to allow for the signal to be received by the unit. Position the unit so the receiver lens (located inside the display panel) is visible from the remote control.
