Coleman REVOLUTION G36324 Assembly Manual page 21

2 burner

Advertisement

ASSEMBL Y INSTRUCTIONS
16
CE3
-
CE1

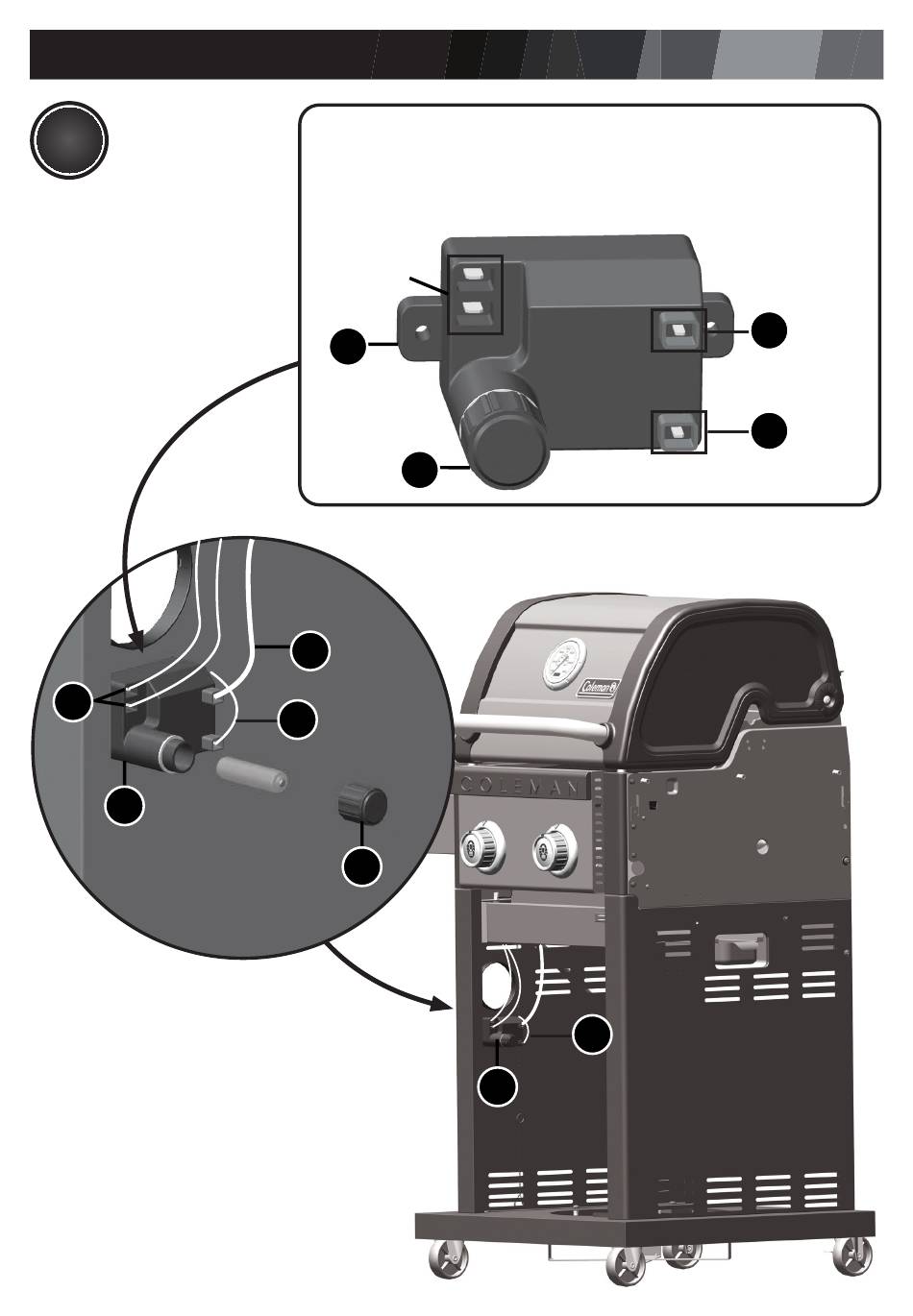

Electronic Ignition Wire Assembly
Locate the two instastart ignition wires(CE3) under the control panel (CG), attached to the
manifold (CA). Connect wires to the Electronic ignition box, labelled CE3 in the diagram
below. After, connect the main burner electrode wire to the Electronic ignition box, labelled
CC in the diagram below. Ensure that the ground wire (CE4) assembled in STEP 2 is firmly
in place. Lastly, Insert one "AA" battery into the compartment with the positive end facing
outward. Secure using the battery cover (CE2).
(CE3)
InstaStart
Button
CE1
CE2
CC
CE4
+
CE2
19
CE4
CE1
CC
CE4
