- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Coleman 85-3046-2/g35301 Owner's Manual Shop genuine replacement parts for Coleman 85-3046-2/g35301 Find Your Coleman Grill Parts - Select From 255 Models -------- Manual continues below --------...
-
Page 2: Assembly Manual

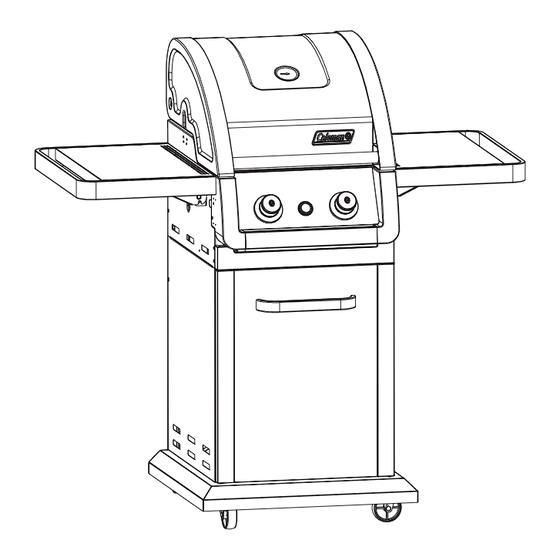

DURABILITY • POWER • PERFORMANCE EV EN HEA T™ BA rB E cUE wiTH BUrNErS ASSEMBLY MANUAL 85-3046-2 (G35301) Propane 85-3047-0 (G35302) Natural Gas LIMITED 5-YEAR WARRANTY Read and save manual for future reference. Assemble your grill immediately. Missing or damaged parts should be claimed within 30 days of purchase. - Page 3 H E A V Y A R T I C L E N E E D S 2 T O L I F T THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES To ORDER non-warranty replacement parts or accessories, or to register your warranty, please visit us on the web at www.colemanbbqs.com CAUTION...
- Page 4 Door assembly G353-7000-01 Carryover assembly G353-0005-01 Door handle G415-0001-02 Even Heat™ heat distribution G522-0072-01 Bottom shelf-LP G353-0500-01 plate Locking castor G350-0023-01 Coleman® signature cooking G522-0023-01 Castor G350-0024-01 grate Door magnet assembly G501-00F2-02 Warming rack G350-0009-01 Match holder G608-0019-01 Hardware pack G353-B001-01...
- Page 5 Even Heat™ burners G522-4900-01 Right side panel G353-0400-01 Carryover assembly G353-0005-01 Door assembly G353-7000-01 Even Heat™ heat distribution G522-0072-01 plate Door handle G415-0001-02 Coleman® signature cooking G522-0023-01 Bottom shelf-NG G353-0800-01 grate Locking castor G350-0023-01 Warming rack G350-0009-01 Castor G350-0024-01 Match holder G608-0019-01...
- Page 6 ASSEMBLY iNSTrUcTiONS Separate the 2 different types of castors: 2 locking castors (EF) and 2 regular castors (EG). Insert the U Pin (#11) into one of the regular castors (EG), as shown in image B. Attach the regular castor (EG) to the front of the bottom shelf (EE), and use the Pin (#11) to secure and tighten.
- Page 7 ASSEMBLY iNSTrUcTiONS THIS STEP REQUIRES 3 PEOPLE. DO NOT ATTEMPT ALONE. EXTREMELY HEAVY! a. Position the top lid assembly and burner box assembly (A & B) onto the cart assembly (C), as shown. Front view Attach the upper back panel (CJ) to both the left and right side panels (EA &...
- Page 8 ASSEMBLY iNSTrUcTiONS Assemble the door support rail (CN) to the left and right upper side panels (EA and EB), as shown. WARNING: This part may have sharp edges. Wear protective gloves when assembling. YOU WILL NEED: Front view...
- Page 9 ASSEMBLY iNSTrUcTiONS Electronic Ignition Assembly a. Remove the ignition battery cover (CC2) and the plastic nut from the electronic ignition box (CC1) b. Position the electronic ignition box (CC1) through the opening in the right side panel (EB) and secure using the nut. Right side panel, inside view c.
- Page 10 ASSEMBLY iNSTrUcTiONS a. Position the Quick Clean™ grease tray (CH) onto the right and left tracks (CL and CM), as shown. b. Position the QUICK CLEAN™ grease cup (CI) in position under the under the QUICK CLEAN™ grease tray (CH). Back view a.
-
Page 11: Additional Warnings
ADDiTiONAL wArNiNGS You have now completed the Assembly of your COLEMAN® EVEN HEAT™ BARBECUE. NEXT STEPS: Position your BARBECUE Read SAFE USE CARE MANUAL Perform Grill Safety Check-list WARNING HOT SURFACES: WARNING: FOR YOUR FAMILIES SAFETY, DO NOT ATTEMPT TO LIGHT...
