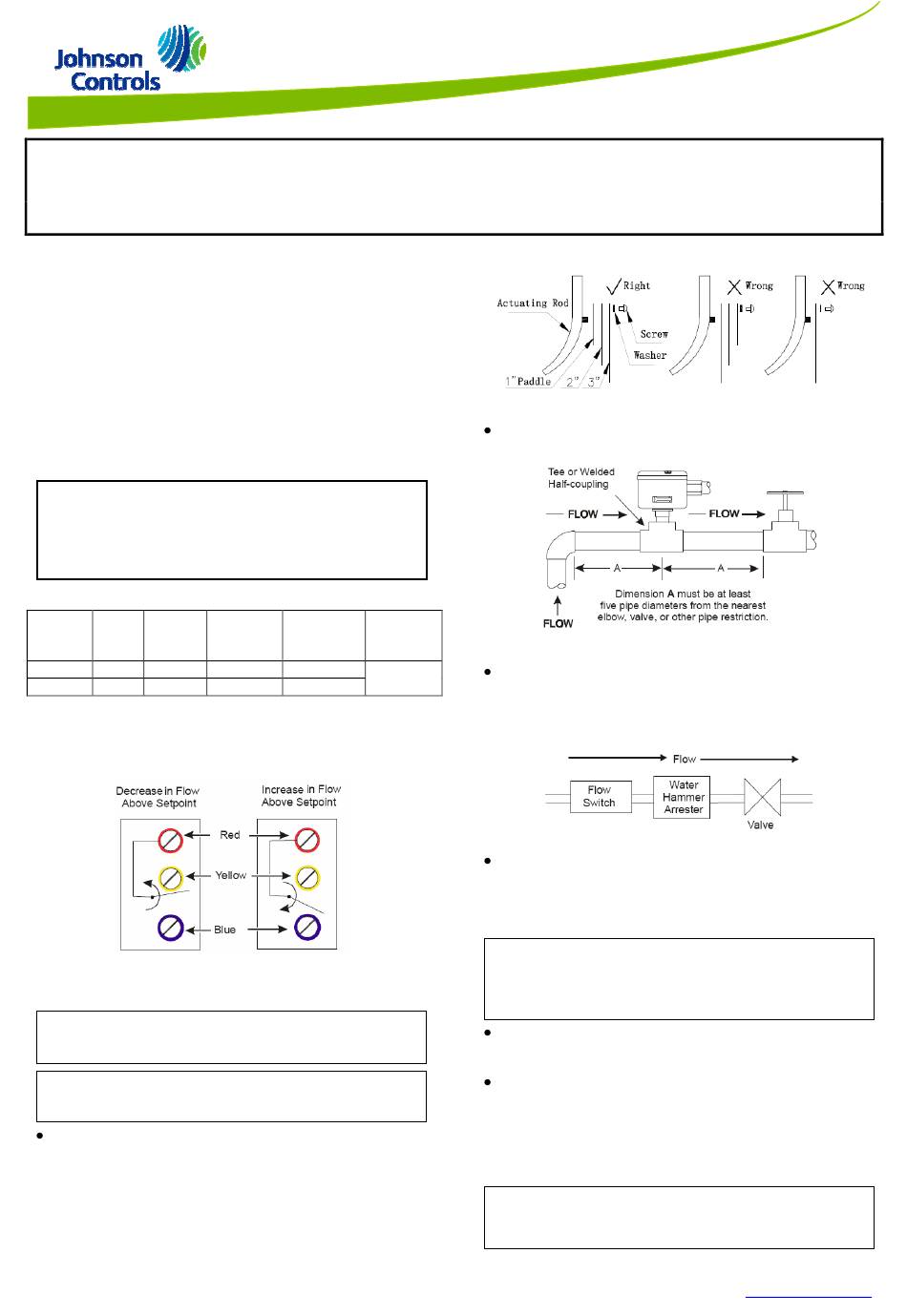

Johnson Controls FS80-C Installation Instructions

Application

1) FS80-C Flow Switch responds to fluid flow in lines carrying water, ethylene
glycol, or other non-hazardous fluids.
2) FS80-C Flow Switch use a variety of paddle sizes to respond to fluid flow
rates in applications with pipe sizes greater than 1-inch trade size.
3) Single-Pole, Double-Throw (SPDT) flow switch that can be wired to energize
one device and de-energize another device powered from the same source
when liquid flow either exceeds or drop below the set flow rates.
4) FS80-C use with fluid pressures up to 1.5MPa.
5) Maximum Velocity: 3m/sec.
6) Fluid temperature range: -25 ℃
ambient dew point; Ambient temperature range: -20
7) FS80-C Flow Switch with IP55 enclosure.
IMPORTANT ： ： ： ： F S80-C Flow Switch is designed for use only as operating
controls. Where an operating control failure would result in personal
injury and/or loss of property, it is the responsibility of the installer to
add devices (safety, limit controls) that protect against, or systems
(alarm. Supervisory systems) that warn of, control failure.

ELECTRICAL RATINGS

Electrical Horse Full Load
rating power Amperes
(HP) (A)
110VAC 1 16
220VAC 1 8

OPERATION

The SPDT switch on the FS80-C has color-coded terminals. Red is common,
and closed to Blue upon flow increase and to Yellow upon flow decrease. See
Figure 1 and Table 1 for switch action and flow rates.
Fig.1 Switch Action

INSTALLATION AND WIRING

Adjusting the Flow Switch Paddle

IMPORTANT:To allow the switch to detect changes in the flow condition,
the paddle must not touch the pipe or any restrictions in the pipe.
:
IMPORTANT Do not use FS80-C on systems with flow velocity greater
than 3m/sec.
FS80-C Flow Switch comes with 4-piece paddle (1 in., 2 in,. 3 in., and 6 in.
segments). Adjust the paddle to the size of the pipe in which it will be
installed. If needed, use the template (see Figure 5), and trim the large
paddle at the arc corresponding to pipe size and install.
Example, if 3" pipe is used, Install 1" , 2" and 3" segments (see Figure 2), if
1-1/2 pipe is used, trim the 2" paddle to the pipe size or use the 1" paddle
segment.
The performance specifications conform to acceptable industry standard. For application to conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls,
Inc., shall not be liable for damages resulting from misapplication or misuse of its products.
FS80-C Flow Switch
to 110 ℃ , fluid temperatures need above
℃ to 60 ℃
Locked Non- Pilot Duty
Rotor inductive
Amperes(A) Amperes(A)
96 16 125VA at 24
48 16 ～
Mount the FS80-C in a section of pipe where there is a straight run of at least
five pipe diameters on each side of the Flow Switch. See Figure 3.
The switch should be mounted so the terminals or wire leads are easily
2 77VAC
accessible for wiring.
Note ： T hese flow switch must not be subjected to water hammer. If a fast-closing
valve is located downstream of the flow switch, a suitable water hammer arrester
must be used. See figure 4.
Mount the flow switch in a standard 1 in.x 1 in.x 1 in. tee for 1 in. pipe
installation. Use a reducing tee for larger sizes of pipe to keep the flow switch
close to the pipe and provide adequate paddle length in th flow stream.
Example: Use a 2 in.x 2 in.x 1 in. tee for a 2 in. pipe. If a standard 2 in.x 2 in.x 2 in.
tee is used, install a face or hex bushing in the top opening to reduce it to 1 in.
CAUTION: Equipment damage hazard.
To avoid damaging the switch, do not tighten the switch to the tee by
grasping the switch enclosure. Use only the wrench flats provided (see
Figure 6).
Screw the flow switch in position so the flat of the paddle is at a right angle to
the flow. The arrow on the side of the case must point in the direction of the
flow.
FS80-C flow switch may be mounted in a horizontal pipe line or a vertical
pipe line with upward liquid flow. It is not recommended for installations
where flow is downward. When mounted in a vertical pipe with upward flow,
the switch will trip at a slightly higher flow than shown in table 1 Typical Flow
Rates, due to the effect of gravity on the switch mechanism.
Wiring
WARNING: Shock hazard
Disconnect the power supply before the wiring connections are made
to avoid possible electrical shock or damage to the equipment.
©2009 Johnson Controls, Inc.
1
Installation Instruction
Issue Date
Figure 2 Paddle Installation Example
Figure 3 Typical Installation
Figure 4 Arrester Location Schematic
