Summary of Contents for Denver DFT-1932DVBT

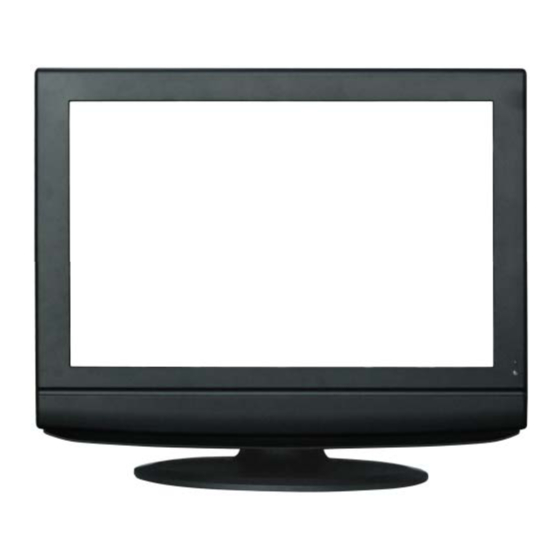

- Page 1 19” Wide Screen LCD TV with DVB-T DFT-1932DVBT USER’S MANUAL...
-
Page 3: Table Of Contents
Contents TV operation Caution ........................5 Safety Information ....................6 Electrical safety ....................6 Physical safety ....................6 In the box....................... 7 Connecting your TV ....................8 Getting Started....................... 9 The Remote Control .................... 10 The Menus......................13 Using the menus....................13 The Video menu .................... - Page 4 DVB Operation Basic operation....................20 Channel List......................20 Favorite List………………………………………………………………..…………..22 System Settings……………………………………………………….…….…….…..22 Channel Setting…………………………………………………….………………….27 EPG……………………………………………………………………………………..28 Teletext Operation……………………………………………………………………..28 General Information User Help Guide ....................30 Features ......................31 Specifications....................... 31 -4 -...
-
Page 5: Caution
Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 6: Safety Information
Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical safety The TV set should only be connected to a mains supply which matches that stated on the label on the mains adaptor To prevent overload, don't share the same mains supply socket with too many other items of equipment. -
Page 7: In The Box
In the box TV set Remote control This User Guide Mains adaptor Mains cable If any of the accessories are missing, then contact your dealer as soon as possible. Keep all the original packaging in case you need to return the set to the dealer. -7 -... -
Page 8: Connecting Your Tv
Connecting your TV Rear connection panel Power HDMI PC-IN Name Function Description Power Connect to Adapter HDMI Connect to HDMI of DVD or other equipment VGA signal of computer input SCART Connect to the composite terminal of your DVD/VCR S-Video S-Video signal input Video Video signal input... -
Page 9: Getting Started
Getting Started 1 Connect the aerial or input source to the appropriate input socket at the rear of the set. (see page 8). 2 Connect the small round plug on the power adaptor cable to the power input socket at the rear of the set. -
Page 10: The Remote Control
The Remote Control Using the remote control for normal TV functions 1. Fit two AA batteries, making sure that they are the correct way round, as marked on the case. 2. Aim the remote control at the window to the right side of the screen, and keep the window clear at all times. - Page 11 Remote Control Function description 1. POWER: Turn on or off the TV. 2. TV/AV: Input source select. 3. 0-9,-/--: choose channel directly. 4. TIMER: shutdown timer. 5. PICTURE: select the picture mode: User, Normal, Soft or Vivid. 6. SOUND: select the sound mode: User, Normal,News and Movie. 7.
- Page 12 21 Buttons for DVB function PROG+/-: DVB program up/down DVB-MENU: To display the main menu on the screen or return to the screen from a menu screen. TV FORMAT: To change the picture mode. EXIT: To return to the previous menu and screen INFO: Means information, to display brief information concerning the current channel you...
-
Page 13: The Menus
The Menus Using the menus • For all the buttons mentioned below, you can use those on the front panel, or you can use those on the remote control. • To see the menus, press the SYS MENU button. The first press will show either: - the VIDEO menu, if the set is switched to TV, SCART, AV, S-VIDEO, HDMI, DVB. -
Page 14: The Video Menu
The Video menu The first press of the SYS MENU button will show either: - the VIDEO menu, if the set is switched to TV, SCART, AV, S-VIDEO, DVB, HDMI. - the PC menu, if the set is switched to PC-RGB. (see next page) Brightness Use the buttons to adjust the brightness of the picture. -
Page 15: The Pc Menu
The PC menu The first press of the SYS MENU button will show either: - the VIDEO menu, if the set is switched to TV, SCART, AV, S-VIDEO, DVB, HDMI. (see previous page) - the PC menu, if the set is switched to PC-RGB. Brightness Use the buttons to adjust the brightness of the picture. -
Page 16: The Audio Menu
The Audio menu Press the SYS MENU button again to see the AUDIO menu. Volume Use the buttons to adjust the volume of the sound. Balance Use the buttons to adjust the left/right balance of the sound. Audio Preset Use the buttons to select from PERSONAL, VOICE, MUSIC or THEATRE. -
Page 17: The Tv Menu
The TV menu Press the SYS MENU button again, to see the TV menu, (only if switched to TV). To select an item in the Menu use the CH + / CH- buttons Channel Use the buttons to select a channel. System Use the buttons to select a sound system. - Page 18 Manual Search This may be used to add another station or accessory such as a VCR or Game console. Use the CH + / CH - button to select Channel. Use the buttons to select an unused location. Press the CH button to select MANUAL SEARCH and press button once.
-
Page 19: The General Menu
The General menu Press the SYS MENU button again to see the GENERAL menu. Language Use the buttons to select from a number of European languages. Blue Screen Use the buttons to turn the blue screen: ON - the screen will turn blue when the signal strength is very poor OFF - the picture and sound will be noisy when the signal is very poor (use this if reception cannot be improved, to stop the screen from turning blue) Noise Reduce... -
Page 20: Dvb Operation
DVB Operation Basic operation NOTE: -In this manual, the OSD (On Screen Display) maybe different from your TV's because it is just example to help the TV operation. -Be sure to select the DVB source before operation. ENTER MAIN MENU Press the DVB-MENU on the remote control to bring up the main menu on the screen and press it again to return to the previous menu or return to TV viewing. - Page 21 3.There is a channel list of DVB in this menu, also you can refer to the Band Width/ Quality/ Frequency and Strength of channel. 4.Using the CH+/- to select channel which you like, and press that allow you to delete/ move/ Lock &...
-
Page 22: Favorite List
-Press the number buttons directly to input the pin code that made up six number, and the initial is: 888888. You can change it in System Setting. -If Lock is already set, enter the pin code as requested. Move This function allows you to change the order of channel in the list. Favorite List 1. - Page 23 Time Settings - Use the CH+/- to select Time Setting item and then press OK to confirm it Time Zone Press CH+/- to select Time Zone, then press OK to confirm it, you can select the option of GMT+0---8. Banner Time Setting This function allows you to set the time of banner display, you can Press CH+/- to select banner time options: 1 secs/ 3 secs / 5secs/ 7 secs/ 9 secs.
- Page 24 Parental Control -Use the CH+/- to select Parental Setting item and then press OK to confirm it -If the lock is already set, enter code 888888. Chang Password This function allows you to change the pin code, you should to input a new pin code twice and press OK to confirm it Level You can Press CH+/- to select an age bracket options: Off/ 6/ 10/ 14/ 18.
- Page 25 TV Shape This function allows you to select the proper picture proportion to match the source's image, you can select one of 4 : 3 and 16: 9. Conversion This function allows you to select the wide screen mode options: Full / Vert. Cut/ Pillarbox / LetterBox / Pan&Scan.
- Page 26 Press the to select the move cursor and input the number directly to set the begin date of channel which you have booked Duration Input the number directly to set the last time of the channel which you have booked. Status Press and then use CH+/- to select options: ON/ OFF.
-
Page 27: Channel Setting
Channel Setting 1. Press the DVB-MENU on the remote control or on the front panel to bring up the main menu on the screen and use CH+/- to select the Channel Setting menu. 2. Press the OK to confirm your selection and there have a Channel Setting menu on screen. -
Page 28: Epg
Press OK to sort the channel list by encrypting. Logical Channel Number Press OK to sort the channel list by logical channel number. 1. Press the DVB-MENU on the remote control or on the front panel to bring up the main menu on the screen and use CH+/- to select the EPG menu. - Page 29 PAGE SELECTION. Press CH+/- buttons to select the preceding or following page. You also can enter page number(three digital) directly using the number buttons to select the page, and if you press a wrong number during input, you must complete the three digital number and re-enter the correct page number.
-
Page 30: User Help Guide
User Help Guide Should you experience problems, please consult the guide below before calling the Customer Help line. SYMPTOM POSSIBLE CAUSE REMEDY GENERAL Check all connections to the TV including Dead. No LED Lit No power to the TV. the DC jack, Mains lead and Mains socket Press either the Power button or the Standby Dead. -
Page 31: Features
Features • High quality display • VGA, RF Video, DVB, S-Video, SCART, HDMI. • Stereo audio inputs • Automatic or manual channel search • Auto-shutdown to save power when no signal input Specifications TV System PAL BG/DK/I SECAM BG/DK, L Screen size 19 "(diagonal) 300cd/m2... - Page 32 The power cable/disconnect device shall remain easy to operate/disconnect.
