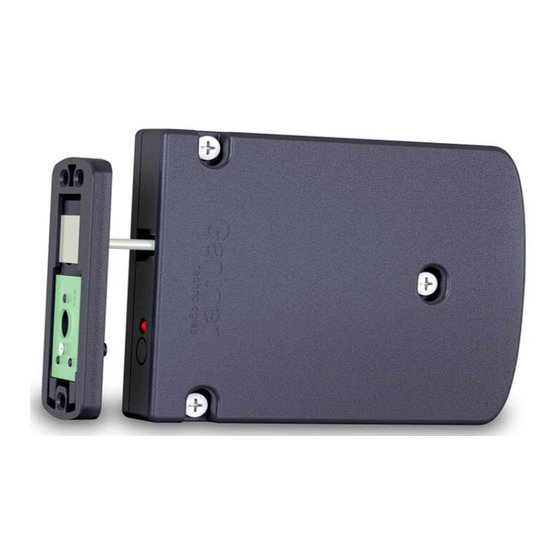

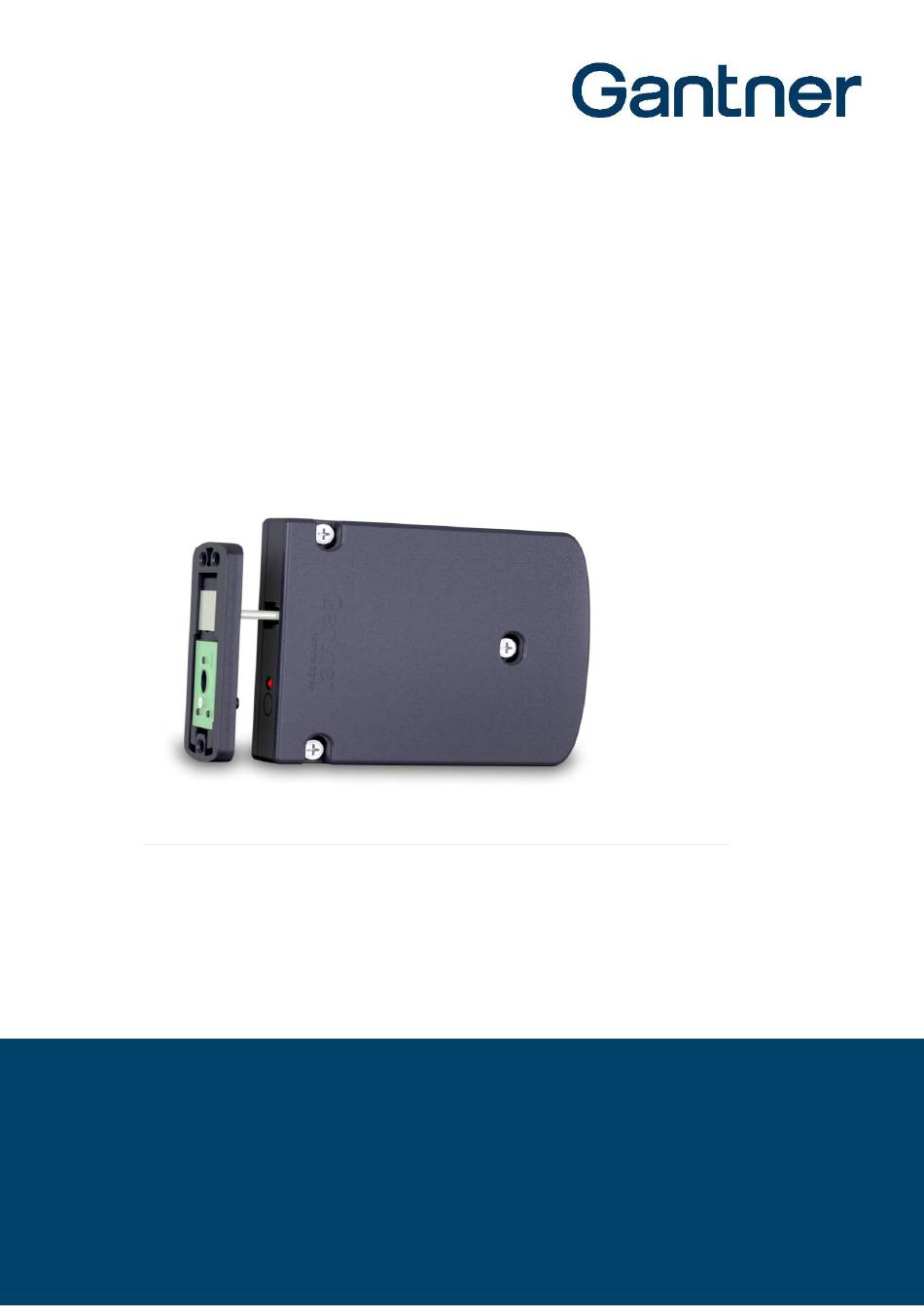

- Page 1 GAT ECO.Side Lock 7010 (NW) F/ISO Battery-Powered Multi-Technology Electronic Lock Installation, Configuration, Operation Document Version 1.1 www.gantner.com HB_GAT-ECOSide-Lock7010-FISO--EN_11...
- Page 2 Contact For general inquiries of further information on the GAT ECO.Side Lock 7010 F/ISO and GAT ECO.Side Lock 7010 NW F/ISO, see the contact information below. Contact address of manufacturer...
- Page 3 - Do not touch the electrical connections while power is being supplied. Format of safety messages that are embedded in text and apply to a specific point: CAUTION! Electrical shock. Never remove safety protection and covers. Do not touch the electrical connections while power is being supplied. www.gantner.com HB_GAT-ECOSide-Lock7010-FISO--EN_11...
- Page 4 This symbol indicates general information that must be read and followed before proceeding with the accompanying instructions. Mandatory Action: Read Instructions This symbol indicates information referring to an important description in the manual, or other documentation, which must be read and followed. www.gantner.com HB_GAT-ECOSide-Lock7010-FISO--EN_11...
- Page 5 Do not attempt to repair a product after a defect, failure, or damage is detected. In addition, do not put the product back into operation. In such cases, it is essential to contact your GANTNER representative or the GANTNER support hotline.
- Page 6 GAT ECO.Side Lock 7010 (NW) F/ISO The GAT ECO.Side Lock 7010 F/ISO and GAT ECO.Side Lock 7010 NW F/ISO are developed and fabricated under the quality management standard ISO 9001 and GANTNER Electronic GmbH is also certified according to standard ISO 14001.
-
Page 7: Table Of Contents
Measurement Diagrams for Installation ....................20 3.9.1 Door Width ............................20 3.9.2 Dimensions of the GAT ECO.Side Lock 7010 F/ISO and GAT NET.Lock Bolt Sets ......20 3.10 Installation in Lockers with Non-Metallic Doors (except glass) .............. 22 3.10.1 Installation Requirements for the GAT ECO.Side Lock 7010 F/ISO and Bolt Set ....... 23 3.10.2 Installation Instructions for the GAT ECO.Side Lock 7010 F/ISO and Non-Metallic Doors .... - Page 8 Configuration with GAT Config Manager ....................39 5.2.1 Setup for Configuration in GAT Config Manager ................39 5.2.2 View and Edit the GAT ECO.Side Lock 7010 F/ISO Configuration Settings ........41 5.2.3 Upload Configuration Settings to the GAT ECO.Side Lock 7010 F/ISO ..........42 5.2.4 Updating the GAT ECO.Side Lock 7010 F/ISO Firmware ..............
-
Page 9: Introduction
The name “GAT ECO.Side Lock 7010 F/ISO” is henceforth used in this manual to refer to both the GAT ECO.Side Lock 7010 F/ISO and the GAT ECO.Side Lock 7010 NW F/ISO. Functionality that is specific to one type of lock will be noted. -
Page 10: Target Groups
- Installation technicians (installation, operation, configuration). - Service technicians and cleaning personnel (service and maintenance). - End users of the GAT ECO.Side Lock 7010 F/ISO (user manual). Where not explicitly stated, the information in this manual is intended for all target groups in general. -
Page 11: General Information
GAT ECO.Side Lock 7010 F/ISO is possible. The GAT ECO.Side Lock 7010 F/ISO is installed on the inner side of the locker body. A bolt set is mounted on the inside of the locker door. -
Page 12: Terminology
General term for the GAT ECO.Side Lock 7010 F/ISO and GAT ECO.Side Lock 7010 NW F/ISO. Locker The term "locker" is used to describe all possible locker applications that can be fitted with a GANTNER electronic lock. Typical applications include a changing room locker, a deposit box, or a private box. -
Page 13: Rfid Technology
ISO 15693 The GAT ECO.Side Lock 7010 F/ISO has a multi-technology RFID reader that allows it to operate with a range of RFID technologies. The information in this manual is applicable for the following technologies that can be used with the GAT ECO.Side Lock 7010 F/ISO. -
Page 14: System Components
GAT ECO.Side Lock 7010 (NW) F/ISO General Information 2.5 System Components The GAT ECO.Side Lock 7010 F/ISO system consists of the following system parts. 1. GAT ECO.Side Lock 7010 (NW) F/ISO For lockers with non-metallic For lockers with glass doors doors 4. - Page 15 Optional data carrier. Not included in the GAT ECO.Basic Set F/ISO. Can be used instead of another MASTER data carrier in order to unlock a locked GAT ECO.Side Lock 7010 F/ISO. Unlike the MASTER data carriers the OPEN MASTER data carrier can only open but not lock a locker.
- Page 16 GAT ECO.Side Lock 7010 (NW) F/ISO General Information www.gantner.com HB_GAT-ECOSide-Lock7010-FISO--EN_11...
-
Page 17: Installation
Installation INSTALLATION This chapter describes the process and what must be considered to install the GAT ECO.Side Lock 7010 F/ISO and GAT ECO.Side Lock 7010 NW F/ISO into lockers with metallic, non-metallic, and glass doors. Since the mounting process is identical for both lock variants, the general term GAT ECO.Side Lock 7010 F/ISO is used. -
Page 18: Test Installation
(ensure retaining hardware such as springs are correctly calibrated). Also test the GAT ECO.Side Lock 7010 F/ISO using a data carrier, ideally of the same type to be used with the locker system, to ensure the data carrier functions as required. Once the test installation is successfully completed, the remaining locks can be installed in the same way. -
Page 19: Door Status Contact
3.6 Door Status Contact The GAT ECO.Side Lock 7010 F/ISO has a feedback function that is activated by the door contact (2 in Figure 3.3) on the bolt set when the locker door is closed. To ensure the correct functionality of the GAT ECO.Side Lock 7010 F/ISO it is important that this contact remains clean and undamaged. -
Page 20: Measurement Diagrams For Installation
Figure 3.4 - Minimum door width 3.9.2 Dimensions of the GAT ECO.Side Lock 7010 F/ISO and GAT NET.Lock Bolt Sets Figure 3.5 - Dimensions of the GAT ECO.Side Lock 7010 F/ISO (dimensions in mm – inches shown in brackets) www.gantner.com HB_GAT-ECOSide-Lock7010-FISO--EN_11... - Page 21 Figure 3.7 - Dimensions of the GAT NET.Lock BoltSet 7200 (dimensions in mm – inches in brackets) Figure 3.8 - Dimensions of the GAT NET.Lock BoltSet 7300 (dimensions in mm – inches in brackets) 1. GAT ECO.Side Lock 7010 F/ISO 4. Status LED 2.
-
Page 22: Installation In Lockers With Non-Metallic Doors (Except Glass)
3.10 Installation in Lockers with Non-Metallic Doors (except glass) For lockers with non-metallic doors, the GAT ECO.Side Lock 7010 F/ISO is mounted on the left or right inner locker wall depending on whether it is a right or left-hinged locker door. The GAT NET.Lock Bolt Set 7100 is mounted on the inside of the locker door. -
Page 23: Installation Requirements For The Gat Eco.side Lock 7010 F/Iso And Bolt Set
Lock 7010 F/ISO. Ideally the bolt set should touch the front of the lock (see Figure 3.9). The locker door, the bolt set, and the front side of the GAT ECO.Side Lock 7010 F/ISO must be perpendicular and parallel to each other. If not, the door contact in the GAT ECO.Side Lock 7010 F/ISO can potentially not function correctly. -
Page 24: Installation Instructions For The Gat Eco.side Lock 7010 F/Iso And Non-Metallic Doors
Complete the following steps to install the GAT ECO.Side Lock 7010 F/ISO into lockers with non-metallic doors. ► Drill 3 holes (3 in Figure 3.9) for the GAT ECO.Side Lock 7010 F/ISO into the locker wall inner side according to the information in "3.10.1. Installation Requirements for the GAT ECO.Side Lock 7010 F/ISO and Bolt Set"... -
Page 25: Installation In Lockers With Metallic Doors
3.11 Installation in Lockers with Metallic Doors For lockers with metallic doors, the GAT ECO.Side Lock 7010 F/ISO is mounted on the left or right inner locker wall depending on whether it is a right or left-hinged locker door. Two cutouts must be made in the locker door - one in the inner door sheet and one in the outer door sheet. -
Page 26: Cutouts In The Locker Door
The following cutouts must be made on the inner and outer walls of the locker door in order to mount the GAT NET.Lock BoltSet 7200 and label carrier. The measurements for the cutouts are as follows. Figure 3.12 - Cutouts for metallic locker doors (dimensions in mm – inches shown in brackets) www.gantner.com HB_GAT-ECOSide-Lock7010-FISO--EN_11... -
Page 27: Installation Requirements For The Gat Eco.side Lock 7010 F/Iso And Bolt Set
Lock 7010 F/ISO. Ideally the bolt set should touch the front of the lock (see measurement in Figure 3.11). - The locker door, the bolt set, and the front side of the GAT ECO.Side Lock 7010 F/ISO must be perpendicular and parallel to each other. -
Page 28: Installation Instructions For The Gat Eco.side Lock 7010 F/Iso And Metallic Doors
Complete the following steps to install the GAT ECO.Side Lock 7010 F/ISO into lockers with metallic doors. ► Drill 3 holes (3 in Figure 3.11) for the GAT ECO.Side Lock 7010 F/ISO into the locker wall. NOTE! Position the 3 holes according to the information in section "3.11.2 Installation Requirements for the GAT ECO.Side Lock 7010 F/ISO and Bolt Set"... -
Page 29: Installation In Lockers With Glass Doors
3.12 Installation in Lockers with Glass Doors For lockers with glass doors, the GAT ECO.Side Lock 7010 F/ISO is mounted on the left or right inner locker wall depending on whether it is a right or left-hinged locker door. The GAT NET.Lock Bolt Set 7300 (with metal support attached) are glued to the inner side of the locker door. -
Page 30: Installation Requirements For The Gat Eco.side Lock 7010 F/Iso And Bolt Set
Lock 7010 F/ISO. Ideally the bolt set should touch the front of the lock (see Figure 3.15). The locker door, the bolt set, and the front side of the GAT ECO.Side Lock 7010 F/ISO must be perpendicular and parallel to each other. If not, the door contact in the GAT ECO.Side Lock 7010 F/ISO can potentially not function correctly. -
Page 31: Installation Instructions For The Gat Eco.side Lock 7010 F/Iso And Glass Doors
Complete the following steps to install the GAT ECO.Side Lock 7010 F/ISO into lockers with glass doors. ► Drill 3 holes (3 in Figure 3.15) for the GAT ECO.Side Lock 7010 F/ISO into the locker wall. NOTE! Position the 3 holes according to the information in section "3.12.1. Installation Requirements for the GAT ECO.Side Lock 7010 F/ISO and Bolt Set"... - Page 32 GAT ECO.Side Lock 7010 (NW) F/ISO Installation www.gantner.com HB_GAT-ECOSide-Lock7010-FISO--EN_11...
-
Page 33: Commissioning
If the battery becomes too weak, the locker can no longer be locked. The GAT ECO.Side Lock 7010 F/ISO indicates a weak battery state with five red flashes of the LED and five acoustic signals during a locking attempt. -
Page 34: Replacing The Battery
Replacing the Battery The battery of the GAT ECO.Side Lock 7010 F/ISO must be replaced when the LED flashes red 5 times and 5 acoustic signals are emitted during a locking attempt. In this state, the GAT ECO.Side Lock 7010 F/ISO can no longer be locked until the battery is replaced. -
Page 35: Usb Connection
“6.5.5. BATTERY Data Carrier”). In addition, the time and date must be set again using a PC and GAT Config Manager (see section "“5 CONFIGURATION"). ► Unscrew the 3 screws that hold the GAT ECO.Side Lock 7010 F/ISO to the locker wall and remove the lock from the locker. - Page 36 Commissioning ► Plug the Micro-B connector of the USB cable into the USB port on the GAT ECO.Side Lock 7010 F/ISO. o After connecting the GAT ECO.Side Lock 7010 F/ISO to the PC/laptop for the first time, the lock drivers are installed, and the lock is automatically recognized.
-
Page 37: Automatic Antenna Adjustment
4.4 Automatic Antenna Adjustment The antenna of the GAT ECO.Side Lock 7010 F/ISO must be calibrated to ensure the optimal reading range for the RFID data carriers. To complete this calibration, the lock is equipped with an automatic antenna adjustment function that is activated using the SERVICE data carrier or via GAT Config Manager. - Page 38 GAT ECO.Side Lock 7010 (NW) F/ISO Commissioning www.gantner.com HB_GAT-ECOSide-Lock7010-FISO--EN_11...
-
Page 39: Configuration
The GAT ECO.Side Lock 7010 F/ISO is configured using a PC/laptop and GAT Config Manager software or with the MoLA app on a mobile device. The configuration file must only be uploaded to the GAT ECO.Side Lock 7010 F/ISO once. The configuration file of the first lock in the system is saved in GAT Config Manager after which the file is uploaded to each lock that requires the same configuration. - Page 40 (2 in Figure 5.2) by clicking on the “Add location” button (1 in Figure 5.2). Figure 5.2 – GAT Config Manager – Add location ► To add a GAT ECO.Side Lock 7010 F/ISO to a location, right-click on the location and select “Add ECO.Side Lock 7000” from the “Add Device” menu (Figure 5.3).
-
Page 41: View And Edit The Gat Eco.side Lock 7010 F/Iso Configuration Settings
View and Edit the GAT ECO.Side Lock 7010 F/ISO Configuration Settings Once the connected GAT ECO.Side Lock 7010 F/ISO has been added to the “Devices” directory, you can now view and adjust the configuration settings of the lock. Complete the following steps to view the configuration settings. -
Page 42: Upload Configuration Settings To The Gat Eco.side Lock 7010 F/Iso
Upload Configuration Settings to the GAT ECO.Side Lock 7010 F/ISO When you are finished configuring the GAT ECO.Side Lock 7010 F/ISO settings in GAT Config Manager, it is important to finalize the configuration by uploading the file to the lock. Complete the following steps to finalize the configuration. -
Page 43: Updating The Gat Eco.side Lock 7010 F/Iso Firmware
GANTNER periodically releases firmware updates for the GAT ECO.Side Lock 7010 F/ISO. In order to take advantage of the latest features, it is recommended to update the GAT ECO.Side Lock 7010 F/ISO to the latest firmware during configuration or at regular intervals. -
Page 44: Configuration With The Mola App
ECO.Side Lock 7010 F/ISO or to make a new configuration of a lock that has already been configured once. When a GAT ECO.Side Lock 7010 F/ISO is in factory mode (delivery state with no configuration done yet) the APP KEY is not needed. -
Page 45: Configuration Settings Of The Gat Eco.side Lock 7010 F/Iso
- “Free locker unique number” 5.4.2 Locker Number The number of the locker where the GAT ECO.Side Lock 7010 F/ISO is installed can be defined. The locker number setting is found here: Configuration > Operating mode > General > Locker number ►... -
Page 46: Auto-Unlock
5.4.5 Auto-Unlock The auto-unlock function automatically unlocks the GAT ECO.Side Lock 7010 F/ISO at a defined point in time. The time must be set correctly once via software. NOTE! When this function is activated, the lock will always unlock at the defined point of time regardless of the operating mode (see “6.3 Operating Modes”). -
Page 47: Master Data Carriers
MASTER Data Carriers Up to 10 MASTER data carriers (usually in card format) can be assigned to the GAT ECO.Side Lock 7010 F/ISO to allow the locker to be opened in special circumstances, e.g., when a user has lost their data carrier. For this functionality, the MASTER data carriers must be first assigned to the GAT ECO.Side Lock 7010 F/ISO, which is done here:... - Page 48 The segment where certificate data is stored Integer Locker Block Num The segment where locker data is stored Integer Gantner.Connect Field ID number for Gantner.Connect. Integer Application Master cards Master Card 1 - 10 Fields to enter number for master card 1 to 10 Integer...
-
Page 49: Operation
6.1 General The GAT ECO.Side Lock 7010 F/ISO can operate in "free locker" mode or "personal locker" mode. In free locker mode, guests are allowed to choose any unoccupied locker they want to use. In personal locker mode, guests are assigned a specific locker and only they have access to use the assigned locker. -
Page 50: Free Locker Mode (With Or Without Duration Of Use Function)
For data carriers that are configured with an expiry date, the date is checked by the GAT ECO.Side Lock 7010 F/ISO. If the date has passed, the locker cannot be used. -
Page 51: Free Locker Universal Mode
Invalid data carriers: The LED flashes red briefly and the GAT ECO.Side Lock 7010 F/ISO does not complete the locking action. Possible reasons for this include: - Another locker has already been locked using the data carrier. -
Page 52: Free Locker Unique Number Mode
► a) Valid data carriers: The LED flashes green briefly and the locking action is carried out. b) Invalid data carriers: The LED flashes red briefly and the GAT ECO.Side Lock 7010 F/ISO does not complete the locking action. ► Release the locker door. -
Page 53: Personal Locker Expiry Date Mode
► Within 5 seconds, hold the PROGRAM data carrier next to the reading field again. ► If the action is successful, the LED flashes red 3 times and the GAT ECO.Side Lock 7010 F/ISO switches off. o All data carriers are now deleted from the lock and cannot use the locker any more. - Page 54 Valid data carriers: The information on the data carrier is saved in the lock. The locker state will switch, i.e., the locker will open when it was locked or will lock when it was open. b) Invalid data carriers: The LED flashes red briefly and the GAT ECO.Side Lock 7010 F/ISO switches off without carrying out an action.
-
Page 55: Gat Eco.basic Set F/Iso
MASTER Data Carriers MASTER data carriers can lock and unlock any GAT ECO.Side Lock 7010 F/ISO in a system. If a user’s data carrier is lost, an emergency opening of the corresponding locker can be carried out using a MASTER data carrier. Three MASTER data carriers are included in the Basic Set and they are only valid for the respective system. -
Page 56: Open Master Data Carrier
OPEN MASTER Data Carrier The OPEN MASTER data carriers can unlock any GAT ECO.Side Lock 7010 F/ISO in a system. If a user’s data carrier is lost, an emergency opening of the corresponding locker can be carried out using an OPEN MASTER data carrier. -
Page 57: Battery Data Carrier
APP KEY Data Carrier The APP KEY data carrier is required if you want to configure a GAT ECO.Side Lock 7010 F/ISO with the MoLA app. This app is installed on a mobile device. When the device is in factory mode and configured for the first time, the APP KEY is not needed, but for later configuration changes you need the APP KEY data carrier (see also "5.3 Configuration... -
Page 58: Alarm And Handling
6.7 Summary of LED Signals The electronics in the GAT ECO.Side Lock 7010 F/ISO are activated by pushing the locker door shut, i.e., when the door shackle is fully inserted into the opening of the lock. The activation is signaled by the LED flashing orange once. -
Page 59: Cleaning And Maintenance
This chapter provides information for the technicians and cleaning personnel who are responsible for the periodical cleaning and maintenance of the GAT ECO.Side Lock 7010 F/ISO and GAT ECO.Side Lock 7010 NW F/ISO (the general term GAT ECO.Side Lock 7010 F/ISO is used for both locks in the following description). -
Page 60: Cleaning
7.4 Maintenance The GAT ECO.Side Lock 7010 F/ISO system components are maintenance-free, i.e., regular maintenance of the mechanical parts is not required. Should a malfunction be detected during functional testing that cannot be remedied, the corresponding faulty part(s) must be replaced. -
Page 61: Technical Data
TECHNICAL DATA 8.1 Power Supply Power supply: 1 x 3.6 V lithium battery, size AA, capacity 2.4 Ah GANTNER approved battery: EU: Tadiran SL-860/S (Part No. 914430) US: Tadiran TL-4903/S Battery lifetime: Up to 10 years* at +20 °C (68 °F) depending on usage, configuration, and environmental conditions 8.2 Reading Field... -
Page 62: Control And Display Elements
Display element: LED (red / green) to indicate the different operating states 8.6 Interface Interface types: - GAT ECO.Side Lock 7010 F/ISO: USB 2.0 - GAT ECO.Side Lock 7010 NW F/ISO: USB 2.0 and wireless USB interface connection: USB type Micro-B 8.7 Housing... - Page 64 GANTNER's distribution partner network actively supports customers in over 60 countries. Please visit www.gantner.com Schruns, Austria Houten, Netherlands Sydney, Australia T +43 5556 73784-0 T+31 33 43 284 16 T +61 29011 8114 info@gantner.com info@gantner.nl info-aus@gantner.com London, GB Bochum, Germany...
