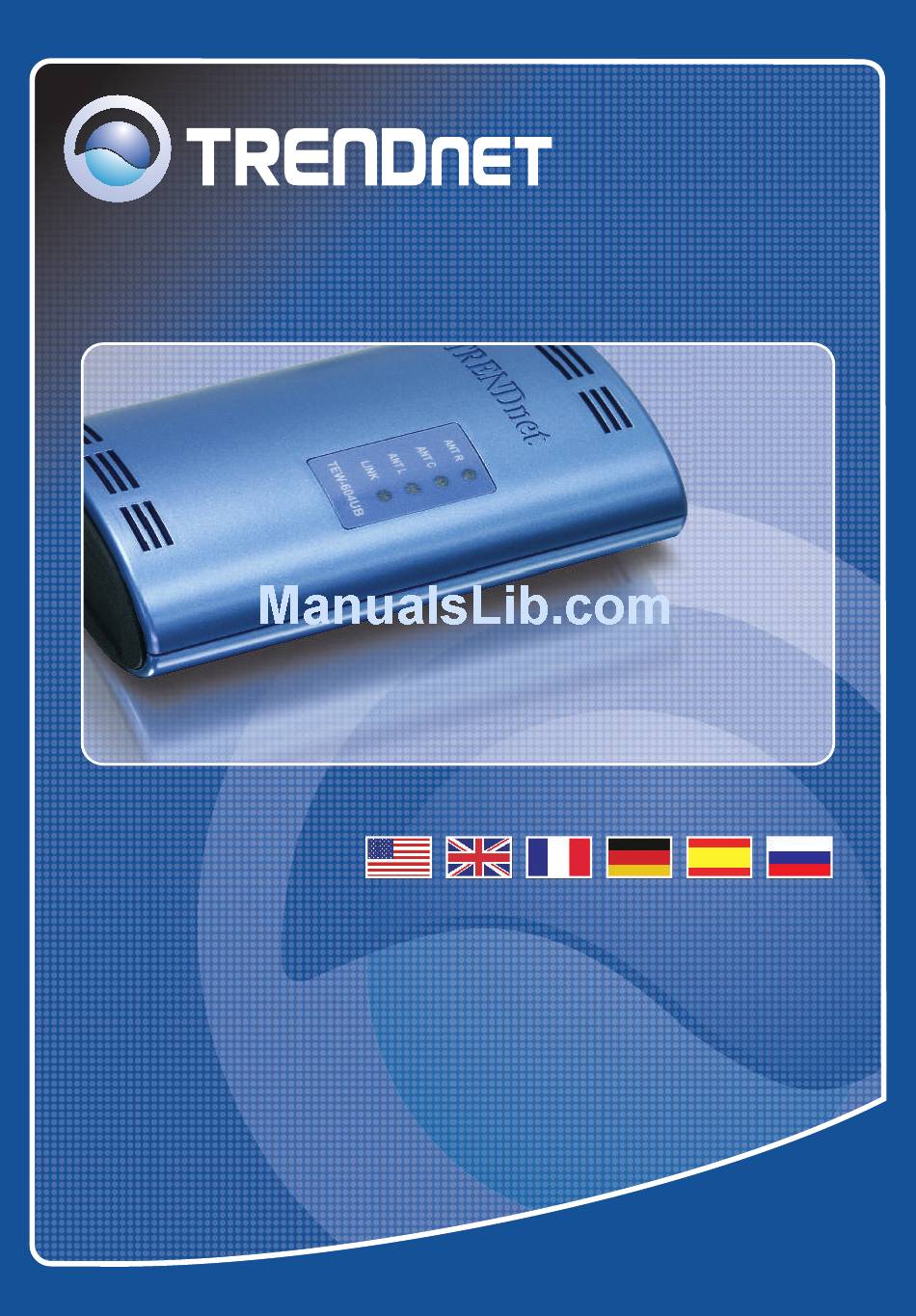

- Page 1 Quick Installation Guide TEW-604UB...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start 2. How to Install ... 3. Wireless Configuration ... Troubleshooting ... Version 03.28.2006... -
Page 3: English
1. Before You Start System Requirements CD-ROM Drive Computer with an available USB port Windows 98SE/ME/2000/XP Application Workstation with 108Mbps Smart Wireless USB 2.0 Adapter (TEW-604UB) Workstation with 108Mbps Wireless PCI Adapter (TEW-603PI) TEW-604UB Utility & Driver CD-ROM Quick Installation Guide USB Cable... -
Page 4: How To Install
2. How to Install Important! DO NOT connect the Wireless USB Adapter to your computer until instructed to do so. For Windows Users 1. Insert the Utility & Driver CD- ROM into your computer's CD- ROM Drive and then click Install Utility. - Page 5 Note: The TEW-604UB is hot-pluggable, you can connect or disconnect the TEW-604UB while the computer is on. After inserting the TEW-604UB into one of your USB ports, the Found New Hardware Wizard 3. Connect the TEW-604UB into your computer's USB port.
- Page 6 Note: After installation is complete, the wireless icon will appear in your system tray (next to the clock on the bottom right corner of your screen). If it does not appear, restart your computer. Go to Section 3 Wireless Configuration to configure the TEW-604UB. English...
-
Page 7: Wireless Configuration
3. Wireless Configuration Note: Wireless configuration requires a 802.11g or 802.11b Access Point (for Infrastructure Mode) or another 802.11g wireless adapter (for Ad-Hoc/Peer-to- Peer networking mode). 1. Double-click the Wireless icon in your System Tray. 2. Click Profile and then click Add. 3. - Page 8 5. Click Next. 6. Select Security corresponding to the wireless network and then click Next. Note: If your wireless network has wireless security, then the Wireless Client Utility will instruct you to enter wireless security settings before continuing to the steps below. Refer to the User's Guide regarding Wireless Secuity. 7.
- Page 9 9. Verify that the Link Status is Connected. Your installation is now complete. For detailed information regarding the TEW-604UB configuration and advanced settings, please refer to the User's Guide included on the Utility & Driver CD- ROM or TRENDnet's website at www.trendnet.com...
-
Page 10: Troubleshooting
Properties, click the Hardware tab, and then click Device Manager. If you still encounter problems or have any questions regarding the TEW-604UB, please refer to the User's Guide included on the Utility & Driver CD-ROM or contact Trendnet's Technical Support Department. - Page 11 Email: support@trendnet.com Tech Support Hours 24/7 Toll Free Tech Support Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 3135 Kashiwa Street Torrance, CA 90505 Copyright ©2006. All Rights Reserved. TRENDnet. Contact...
