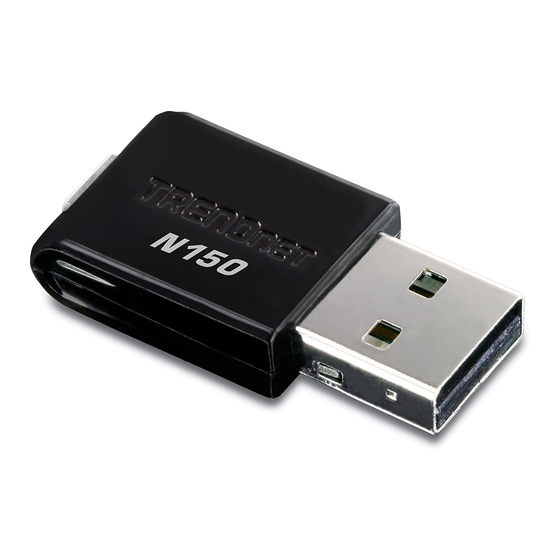

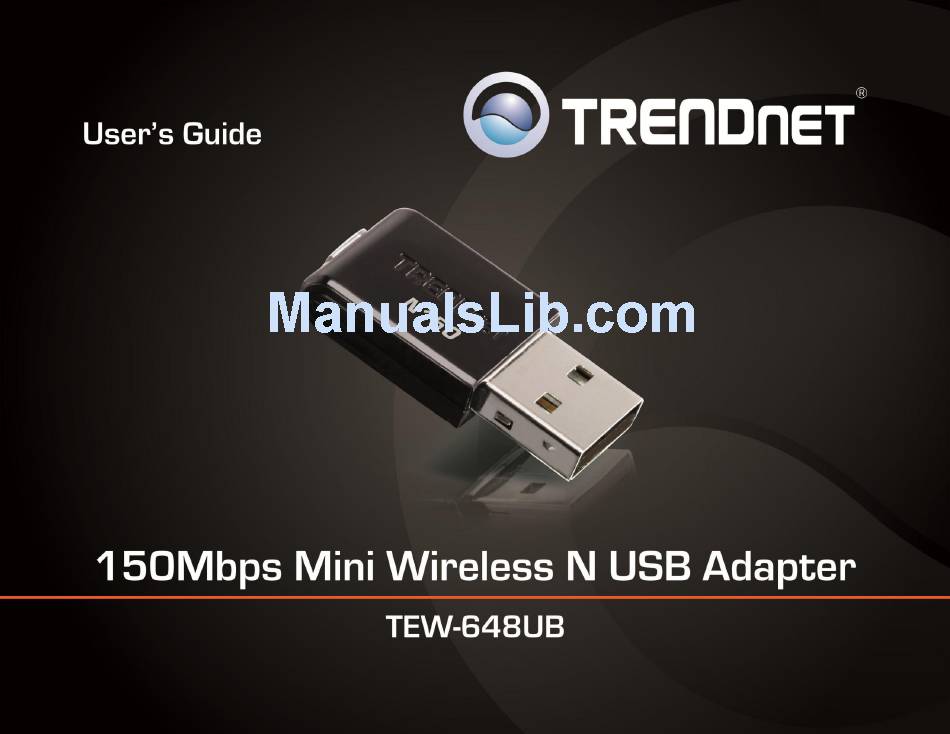

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Profile ........................5 Available Networks ....................7 Status......................... 7 Statistics ........................8 WPS ........................... 8 Mac Utility Installation ....................12 Mac Utility Configuration .................... 14 Mac OS 10.8 Utility Configuration ................16 Technical Specifications..............19 © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 3: Product Overview

     Quick Installation Guide  CD-ROM (Utility, Drivers and User’s Guide) If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor that the item was purchased. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 4: Product Hardware Features

    After 5 seconds, the LED will turn off to indicate that the AP is ready for a new WPS connection and the adapter is associated with the AP. User inserts the card into the NB without driver installed, and without connection. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 5: Application Diagram

    If you are still experiencing low or no signal consider repositioning the wireless devices or installing additional access points. The use of higher gain antennas may also provide the necessary coverage depending on the environment. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 6: Software Installation And Configurations

    3. Click Finish to restart the computer. 2. Follow the InstallShield Wizard Instructions. 4. After the computer is rebooted, plug the Wireless N USB Adapter into an available USB slot on your computer. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 7: Windows Utility Configurations

    SSID, channel, and encryption as saved by that particular profile. Status: Shows connection status. Speed: Shows the transmission and the reception data rate. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 8 If using the WPA/WPA2 EAP-TLS authentication method, please select the Encryption Set Default: Set the selected Profile as default connection. type for TKIP or AES then select the WPA/WPA2 Certificate from drop down list. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 9: Available Networks

    Display the information of the adapter including manufacturer, driver version, utility version, encryption, encryption type, region, adapter’s MAC address, current connection data rate, channel, connection status, the associated router or Access Point’s SSID, network type, associated device’s MAC address, and Up time. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 10: Statistics

    3) Click the Next button start the WPS configuration. Using the WPS configuration with the Push Button method, the configuration steps as 4) If the WPS configuration was successful, the follow window will show on. below: © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 11 2) Enter the PIN code into the WPS “Client PIN number” of you wireless access point or router (in example, TRENDnet TEW-652BRP Wireless N Router) then click the Start PIN button, the wireless access point or router will start the WPS configuration process.
  • Page 12 3) Choose to select the specific AP/Router or a WPS enabled device with client PIN entered. 4) Select a wireless access point or router then click the Select button start the WPS configuration. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 13 5) If the WPS configuration was successful, the follow window will show on. 6) If the WPS configuration was failed, the follow window will show on. Try to repeat the steps again if this screen appears. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 14: Mac Utility Installation

    5. Click Continue and follow the screen to install the driver. Note: Do not install the TEW-648UB / TEW-649UB until instructed to do so. 1. Go to the Mac folder on the Utility and Driver CD-ROM, For Mac OS 10.7, go to Mac OS 10.7 folder and skip to step 4.
  • Page 15 For OS X 10.7, select Install for all users of this computer and then click Continue. 8. When the Authenticate screen appears, enter the Name and Password for your computer and then click OK; then click on Continue Installation. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 16: Mac Utility Configuration

    1. Click OK when prompted this message 2. Double click on the System Preferences icon on the Dock Mac 10.8 window, click Restart. 3. Double click on the Network icon 4. Click OK © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 17 5. Select the adapter from the dropdown list and click Apply Now 7. Click Available Network, select the SSID (Wireless Network Name) and then click Add to Profile 6. Double click on the Wireless Utility icon on the Dock © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 18: Mac Os 10.8 Utility Configuration

    Network Authentication and Data Encryption, enter the network encryption, confirm the network key and then click OK 1. Click OK when prompted this message 2. System Preferences window will appear automatically 9. Configuration is complete © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 19 5. Select 11n USB Adapter from the dropdown list and click Create. The adapter name will appear on the left panel. Select the adapter and click the Apply 3. Double click on the Network icon button. 4. Click the plus sign to add the adapter © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 20 7. If encryption is enabled on your wireless network (e.g. access point or wireless click Add to Profile router), select the type of Network Authentication and Data Encryption, enter the network encryption, confirm the network key and then click OK 8. Configuration is complete © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 21: Technical Specifications

    OFDM, DSSS Antenna Built-in on board antenna 802.11b: up to 11Mbps Data Rate 802.11g: up to 54Mbps 802.11n: up to 150Mbps Output Power 802.11b: 16dBm (typical) @ 11Mbps 802.11g: 13dBm (typical) @ 54Mbps © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 22 End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 23 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 24 TEW-648UB TRENDnet User’s Guide noteikumiem. Česky TRENDnet tímto prohlašuje, že tento TEW-648UB je ve shodě se [Czech] základními požadavky a dalšími příslušnými ustanoveními Lietuvių Šiuo TRENDnet deklaruoja, kad šis TEW-648UB atitinka esminius směrnice 1999/5/ES. [Lithuanian] reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
  • Page 25 Download section limited to, duty, tax, and other fees. and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS the developers.
