ATOMSTACK A6 PRO User Manual page 8

6. Autofocus
6.2.3 Offline mode:

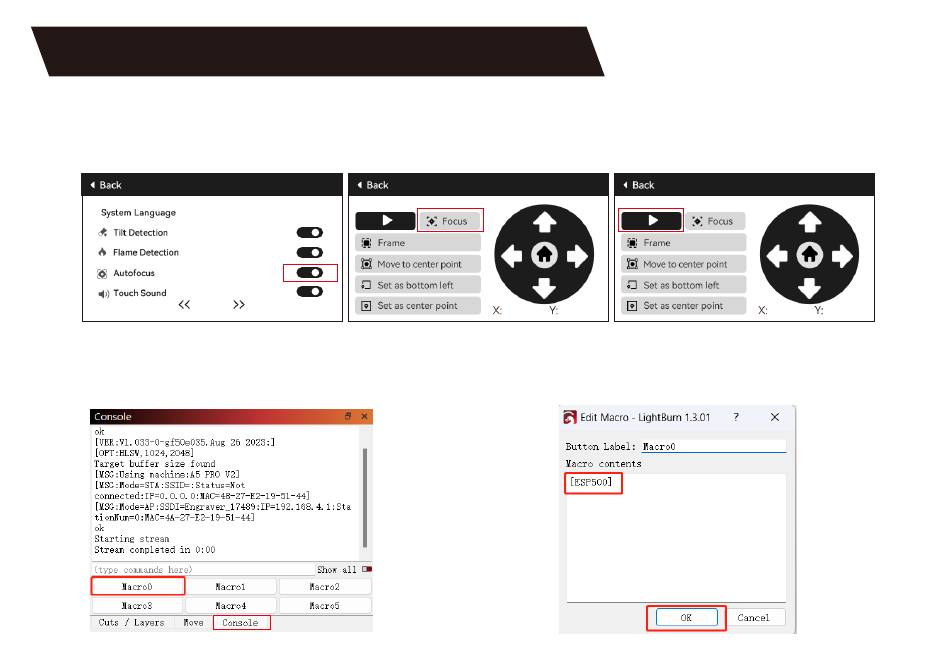

Open the "Autofocus" function on the display screen, then select the program to be engraved, click "Focus" to perform automatic focus.After finding the upper
limit and the lower limit at the current position, the laser automatically lifts to the fixed focal distance.Then click "Start" to start engraving.
6.2.4 Lightburn Automatic Focus Control:
a) Open Lightburn and locate the console, right-click on "Macro 0"
to open a window.
2
12345.gc
1
b) Enter [ESP500] in "Macro Contents" and click OK to
complete the setup.
1
2
6
