2.Offline Basic Function Introduction

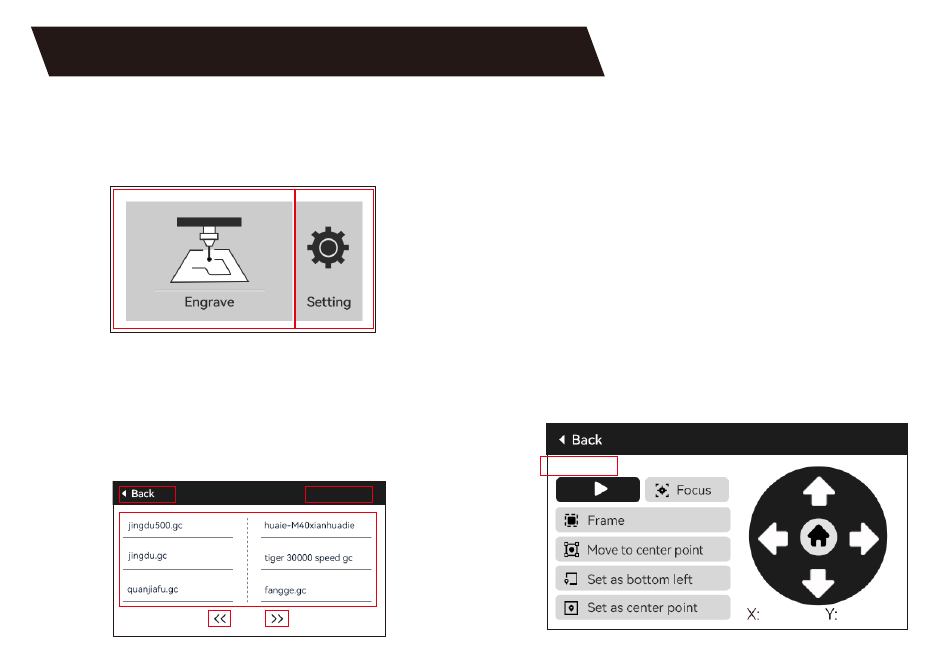

2.1 Home page introduction
The home page is mainly divided into two modules, the Engraving module
(1) and Set up module (2).
1
2.2 Engraving
2.2.1 Clicking on the Engraver button on the home page will take you to
the file selection page
2.2.2 Return to the Home page/Back button
2.2.3 WiFi Name
2.2.4 Previous Page
2.2.5 Next Page
2
1
4
2
3
Engraver 12345
5
2
2.3 Select any file and click to enter the
pre-engraving page
1) Engraving file name
2) Engraving button
3) Autofocus button
4) Frame: After clicking this button, the laser will perform edge detec-
tion based on the size of the engraving pattern.
5) Move to center point: Click this button to make the laser move to the
center point of the engraving pattern.
6) Set as bottom left: Click this button to set the current location as the
bottom-left point of the pattern.
7) Set as center point: Click this button to set the current location as the
center point of the pattern.
8.9.10.11) Move up, down, left and right respectively.
12) Home: Regardless of the laser's current position, the laser will return
to the machine's original position.
1
12345.gc
2
3
8
4
12
11 9
5
6
10
7
