USE AND CARE GUIDE

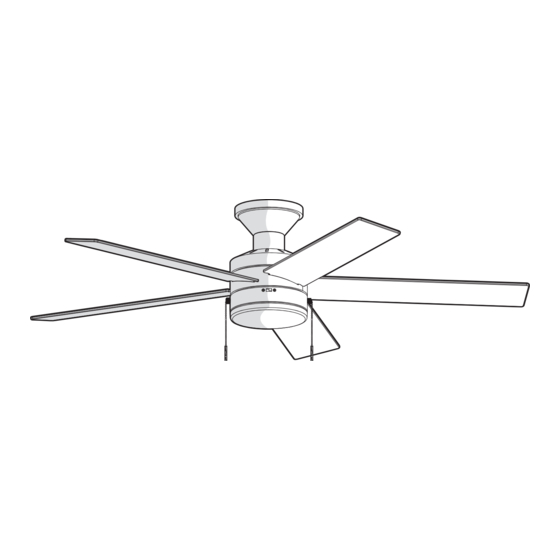

INDOOR/COVERED OUTDOOR CEILING FAN
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!
52 IN. CALTRIS
call Hampton Bay Customer Service
1-855-HD-HAMPTON
HAMPTONBAY.COM
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
THANK YOU
Item #1008 755 944
1008 759 526
Model #AK382HG-MBK AK382HG-BN
AK382HG-MWH
1008 759 795
Advertisement
Related Manuals for HAMPTON BAY CALTRIS AK382HG-MBK
Summary of Contents for HAMPTON BAY CALTRIS AK382HG-MBK
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........Assembly . -
Page 3: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut Blade attachment screw with lock washer (additional) Pull chain and fob...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting plate Blade support plate (with screws and lock washers) Canopy ring Switch housing Fan motor assembly 20W LED Light kit Blade Glass shade HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
-
Page 6: Installation
Installation MOUNTING OPTIONS Hanger Bar WARNING: To reduce the risk of re, electric shock, or personal injury, mount the fan to an outlet box marked acceptable for fan support using the screws provided with the outlet box. An outlet box commonly used for the support of lighting xtures may not be acceptable for fan support and may need to be replaced. -
Page 7: Assembly
Assembly — Hanging the Fan Installing the mounting plate to the Hanging the fan to the mounting plate electrical box WARNING: To reduce the risk of re, electric shock or WARNING: The hook is only to hold the fan while attaching other personal injury, mount the fan only to an outlet box or wiring. - Page 8 Assembly — Hanging the Fan (continued) Installing the mounting plate to the electrical box Ground WARNING: To avoid possible electrical shock, be sure Neutral conductor electricity is turned off at the main fuse box before wiring. Black White WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
- Page 9 Assembly — Hanging the Fan (optional) Single Switch Connections Dual Switch Connections On a single switch the fan and light can be turned on or off On a dual switch the fan and light can be turned on or off separately.
- Page 10 Assembly — Hanging the Fan (continued) Attaching the fan motor assembly to the mounting plate Remove two of the four motor mounting screws with lock washers (EE) from the mounting plate (A) and loosen the other two screws with lock washers (EE). (Do not remove) Remove the fan motor assembly (C) from the mounting plate hook (DD), and engage the key holes on the fan housing to the two motor mounting screws with lock washers (EE)
- Page 11 Assembly — Installing the Light Kit Attaching the switch housing to the Attaching the LED light kit and glass mounting ring shade CAUTION: Before starting installation, disconnect the power CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at the by turning off the circuit breaker or removing the fuse at the fuse box.
-
Page 12: Operation
Installation Operation PULL CHAIN OPERATING INSTRUCTIONS Install the pull chains and fobs (CC) onto the pull chains located in the switch housing (F). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off. -
Page 13: Care And Cleaning
Care and Cleaning Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling. Clean your fan periodically. - Page 14 - Consult the dealer or an experienced radio/TV technician for help. Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM...
