- Page 1 ES 2070 TV Electronic controller for water softening units Instruction Manual Software version 1.03...
-
Page 2: Table Of Contents
CONTENTS System Description......................Illustration…………......................Status and Regeneration messages......................LED - display....................... LED - control lamps..................... LCD - display....................... Service status................... Regeneration status.................. Changing and indication of program values............…….. Hardness of the water supply................Current Time....................... Information DISPLAYS..................Software version..................Flush period..................... Regeneration time.................. - Page 3 Special functions.......................…. 17 Duty changeover without regeneration..............17 Regeneration of the standby unit................. 17 Regeneration stop....................17 Fast program facility.................... 18 Flush ON/OFF..................... 18 Regeneration without counter reset..............18 Setting and changing of initial values................19 Installation ..................Pre service regeneration................20 Prohibited regeneration period..............
-
Page 4: System Description
System Description System Description The ES 2070 TV controller is designed for the monitoring and control of simplex (single exchange column), duplex (twin exchange columns) and triplex water softener installations. Whilst a simplex installation can not provide softened water to service when the exchange column is in regeneration, a duplex or triplex installation is capable of providing treated water from one ore two columns whilst the other is being regenerated. -
Page 5: Illustration

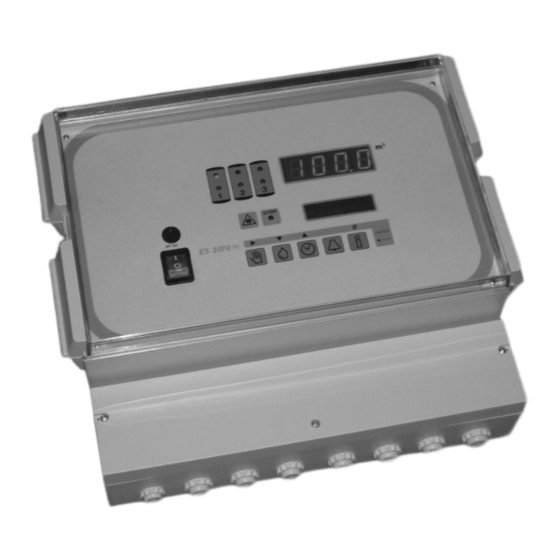

ES 2070 TV Illustration Illustration Wall mounted type ES2070 TV STOP MT 4A Enter Service Filter 3 Warning Real Time Clock 19 previous program step Service Filter 2 Alarm Reset 20 Numerical input Service Filter 1 Main fuse Information 21 LCD -display... -
Page 6: Status And Regeneration
ES 2070 TV Status and regeneration messages Status and Regeneration messages LED - display m³ Whilst a unit is in service the LED - display indicates the remaining volume of water which can be softened before the next regeneration will be required. -
Page 7: Regeneration Status
ES 2070 TV Status and regeneration messages However some operating regimes will produce alternative messages :- Service unit 1 Mo 17:00 If the control has been set to initiate a regeneration after a fixed time interval the second line of the display will show the number of hours remaining until regeneration will take place and the current time. -
Page 8: Changing And Indication Of Program Values
ES 2070 TV Changing and indication of program values Changing and indication of program values. The most important program values can be recalled and, changed if required, by pressing a key. Hardness of the water supply. Press the "Hardness" key, indicated by the symbol , to display the supply water hardness. -
Page 9: Current Time
ES 2070 TV Changing and indication of program values Current Time. Press the "Time" key indicated by the symbol , to display the current time. Current Time Mo 16:48 Should it be necessary to change the programmed value; the arrow key "8" may be used to move the flashing cursor to the digit to be changed, and the Number key "#"... -
Page 10: Additional Programs
ES 2070 TV Changing and indication of program values IntRg 72 if the control has been set to initiate regeneration after a programmed time interval (section 4 of the programming instructions), this part of the display shows programmed time interval in hours. -
Page 11: Unit Capacity
ES 2070 TV Changing and indication of program values Unit capacity. Unit capacity 150 m3 The calculated capacity between regeneration’s is displayed. Treated water produced. Treated water 45367 m3 The total volume of water which has been treated by the plant. -
Page 12: Outputs
ES 2070 TV Changing and indication of program values Outputs. 123456789ABCDEF -----|--------| Indicates the current status of each output, " l " below an output number indicates an active output," - " an inactive one. Service - Telephone number. Service 123 124711 To change the telephone number. -
Page 13: Alarms / Warnings
ES 2070 TV Alarms / warnings Alarms / warnings. When the equipment is operating, various messages may appear in the display, this facility can be used to drive relay outputs or to give alarms or warnings. The relay positions are indicated by red control lamps bearing symbols for "Attention"... -
Page 14: Electrical Supply Failure
ES 2070 TV Alarms / warnings Electrical supply failure. Signal Power supply If there is a failure of the power supply no status information will be lost. The control panel "remembers" the condition it was in when the supply is interrupted. -
Page 15: Await Regeneration
ES 2070 TV Alarms / warnings Wait regeneration. Signal Wait This message appears during the regeneration cycle only if there is a "Wait" contact, for example a water pressure switch intended to prevent regeneration when there is insufficient water pressure, connected. -
Page 16: Minimum Inter Regeneration Time Limit
ES 2070 TV Alarms / warnings Minimum inter regeneration time limit. Minimum regene- ration period This message will only appear if a minimum interval between regeneration’s has been programmed (section 5 of the programming instructions). Possible causes when the plant is controlled by a water meter: Wrongly programmed capacity. -
Page 17: Manual Regeneration Initiation
ES 2070 TV Manual regeneration initiation Manual regeneration initiation. A regeneration may be manually initiated at any time. Press the "REGENERATION INITIATION" key , after 5 seconds regeneration of the on line unit is initiated. indicated by the symbol With duplex or triplex installations operating in standby mode the stand by unit is brought ... -
Page 18: Remote Control
ES 2070 TV Remote control Remote control. The following functions may be remotely controlled by switch contacts connected to the terminal strip of the controller :- "Watermeter1", "Watermeter2" and "Watermeter3" inputs (WM1,WM2,WM3). "Contact head"/"reed" water meters give a pulse each time a fixed volume of water has registered e.g. of every 100 litres. -
Page 19: Start" Signal Input
ES 2070 TV Remote control , is pressed, the "WAIT" signal will When "REGENERATION INITIATION" indicated by the symbol be suspended for the duration of the regeneration cycle. When using the fast program key facility, (see special functions page 17) it is possible to step forward to the next regeneration step. -
Page 20: Special Functions
ES 2070 TV Special functions Special functions. These functions should only be used by a trained specialist, ill considered use of these functions will cause operating problems. Duty changeover without regeneration. Press the "UNLOCK" key and the "INFORMATION" key simultaneously. On a duplex or triplex plant duty changeover takes place after 2 seconds delay. -
Page 21: Fast Program Facility
ES 2070 TV Special functions Fast program facility. Press the "REGENERATION INITIATION" key and the "INFORMATION" key simultaneously, after 2 seconds delay the internal timer switches from minutes to seconds for the remainder of the current program step, at the end of the current step the timer returns to normal, the next regeneration step proceeds normally. -
Page 22: Setting And Changing Of Initial Values
ES 2070 TV Setting and changing of initial values Setting and changing of initial values. During the commissioning of a water softener the basic parameters for the installation must be programmed into the controller. These values can be modified later but they will not be corrupted or lost by an electrical supply failure. -
Page 23: Installation
ES 2070 TV Setting and changing of initial values 1. Installation Step no: Filter: 1| 2- 3- Select the number of the connected filtercolumn(s). Step no: Number in serv 1 On duplex or triplex installations program how many columns should be in service position. -
Page 24: Prohibited Regeneration Period
ES 2070 TV Setting and changing of initial values 3. Prohibited regeneration period. Step nr: Time delay B A N A regeneration may be started at any time of the day but, for operational reasons, there may be times when regeneration would be undesirable e.g. the water pressure may be too low or demand may be high. -
Page 25: Start On Real Time Clock
ES 2070 TV Setting and changing of initial values 3. Starting on real time clock Step no.: Time start A regeneration can be started depending of the real time clock. There is the possibility for programming three starting times at one day If this step is programmed at No then you will go to step 4.1. -
Page 26: Time Controlled Regeneration
ES 2070 TV Setting and changing of initial values 4. Time controlled regeneration Step no: Interim startY/N Regeneration can be initiated at fixed time intervals. This operating mode is selected if a water meter is not desired either because the water usage is regular and predictable or for operational reasons. -
Page 27: Minimum Time Between Regeneration's
ES 2070 TV Setting and changing of initial values 5. Minimum time between regeneration’s. Step no: Min.reg.time Based on the capacity of the installation, the incoming water hardness and flow rate, the minimum time between two regeneration cycles can be calculated. -
Page 28: Water Meter
OS 2050/51 Setting and changing of initial values Water meter, Flow-pulse 6. Water meter Step no: Watermeter Using a contact head/reed water meter, the volume of treated water produced is measured and, when the pre-programmed quantity of water has been supplied, regeneration is initiated. The LED display usually shows the capacity remaining i.e. -
Page 29: Incoming Water Supply Hardness
ES 2070 TV Setting and changing of initial values 7. Incoming water supply hardness. Any of the following units of measurement of water hardness can be used when operating the controller: °D = German water hardness mg/l = parts per million CaCO °F = French water hardness... -
Page 30: Exchange Capacity
ES 2070 TV Setting and changing of initial values 8. Exchange capacity. Step no: Capacity 1800 The unit of exchange capacity is dependant on the unit chosen in step 7. It gives the amount of softened water in m as indicated in the chosen unit of hardness. -
Page 31: Pre Regeneration Signalling
ES 2070 TV Setting and changing of initial values 9. Pre regeneration signalling Step no: Pre contact It is sometimes necessary to give a warning or to signal to another unit before the duty water softener is exhausted. Step no:... -
Page 32: Electrical Control
ES 2070 TV Setting and changing of initial values 10. Electrical control. Remote control valves and stagers available in the market may be controlled in various ways, there are important differences: 1. Alternating switch 3. Remote control 2. Pulse switching 4. -
Page 33: Number Of Valve Switching Pulses
ES 2070 TV Setting and changing of initial values Remote Control. With the remote control facility, the central control valve only requires a starting pulse on the connections 5-7 (resp.14-16,23-25) to perform the complete regeneration cycle. The times for the different regeneration steps are, generally speaking, catered for by the switching arrangements of the central control valve. -
Page 34: Pulse Timing
ES 2070 TV Setting and changing of initial values 12. Pulse timing Step no: 12.1 Pulse per.1 If the pulse control in remote control mode is selected, the pulse time for each period must also be entered. Values in the range of 1 to 999 seconds can be programmed. -
Page 35: Programmable Outputs
ES 2070 TV Setting and changing of initial values 14.Programmable outputs There are six programmable potential free outputs for the following output functions : AD1 = Additional program 1 RE = Regeneration output AD2 = Additional program 2 = Alarm... -
Page 36: Additional Program 1
ES 2070 TV Setting and changing of initial values 15. Additional program 1 Step no: 15.1 Start phase: It is possible to use the additional program before the start of the actual regeneration, that means before the regeneration valve is initiated. -
Page 37: Additional Program 2
ES 2070 TV Setting and changing of initial values Step no: 15.3 Switch SV If the additional program is active before the actual regeneration (“pre regeneration” and “flushing before service” are not programmed) then a decision has to be made :... -
Page 38: Flushing
ES 2070 TV Setting and changing of initial values 18. Flush Step no: 18.1 Flush time Calculate the flush time (range 1 to 999 seconds) Step no: 18.2 Interv. 500l This is the setting for the amount of treated water to be supplied between flushes. -
Page 39: Warning Output
ES 2070 TV Setting and changing of initial values 21. Warning Step no: 21.1 PF- DI- DY- WA- You can determine on which event the output function MF has to be activated. PF = power failure = minimum regeneration distance (not programmable if step 5.1 at No) DY = prohibited regeneration (not programmable if step 3.1 at No) -
Page 40: Start" Input
ES 2070 TV Setting and changing of initial values 23. "Start" input Regeneration delay 1 Step no: 23.1 Reg. Delay 1 600s This time setting (0-999 seconds) determines the number of seconds the "Start" input is blocked after a new regeneration or a filter changeover, for instance to wait for a new analysis by a water hardness meter. -
Page 41: Electrical Connection Details
ES 2070 TV Connection terminals... -
Page 42: Installation And Commissioning
ES 2070 TV Installation and commissioning Installation and commissioning General Installation and commissioning of the control system may only be carried out by trained specialists who are familiar with these operating instructions and the applicable regulations on safe working practices and accident prevention. -
Page 43: Technical Specifications
ES 2070 TV Technical specifications Technical specifications. Electrical supply: 24 V ± 10% 50-60 Hz fuse 8A mT 115 V ± 10% 50-60 Hz fuse 8A mT 230 V ± 10% 50-60 Hz fuse 8A mT 115/24V ± 10% 50-60 Hz fuse 8A mT 230/24V ±... -
Page 44: Declaration Of Conformity
Emission standard : EN 61000-6-4, EN 55022 Immunity standard : EN 61000-6-1, EN 61000-6-2 Low voltage directive : 2006/95/EG Report Report number : EWS EMC / ES2070_02 This declaration was issued by : Date : 11-03-2020 Name : V. Naeber Signature... - Page 45 EWS). All the costs which exceed the obligations of EWS under this Warranty, such as, but not limited to, travel and accommodation costs and costs for assembly and dismantling are for the account and risk of the customer.
- Page 46 Except where such limitations and exclusions are specifically prohibited by applicable law EWS shall not be liable for: Damage to other property caused by defects in the EWS product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss or: Any damages, whether incidental, [consequential or otherwise] special, indirect or consequential damages, injury to persons or property, or any other loss.
