- Page 1 ES 2050 ES 2051 Electronic Controllers for water softening units Instruction Manual Software version 4.01...
-
Page 2: Table Of Contents
CONTENTS System Description ..........................1 Wall mounted ES 2050, Panel mounted ES 2051 ................. 2 Status and Regenerationmessages ....................... 3 LED-display ............................3 LED - control lamps ........................... 3 LCD - display ............................. 3 Service status ..........................3 Regeneration status ........................4 Changing and indication of programme values .................. - Page 3 Special functions........................... 16 Duty changeover without regeneration ................... 16 Regeneration of the standby unit ....................16 Regeneration stop ..........................16 Fast program facility ........................17 Flush ON/OFF ..........................17 Regeneration without counter Reset ....................17 Setting and changing of initial values ....................18 1.
-
Page 4: System Description
ES 2050/51 System Description System Description The ES 2050 (wall mounted) and ES 2051 (panel mounted) controllers are designed for the monitoring and control of simplex (single exchange column) and duplex (twin exchange columns) water softener installations. Whilst a simplex installation can not provide softened water to service when the exchange column is in regeneration, a duplex installation is capable of providing treated water from one column whilst the other is being regenerated. -
Page 5: Wall Mounted Es 2050 Panel Mounted Es 2051

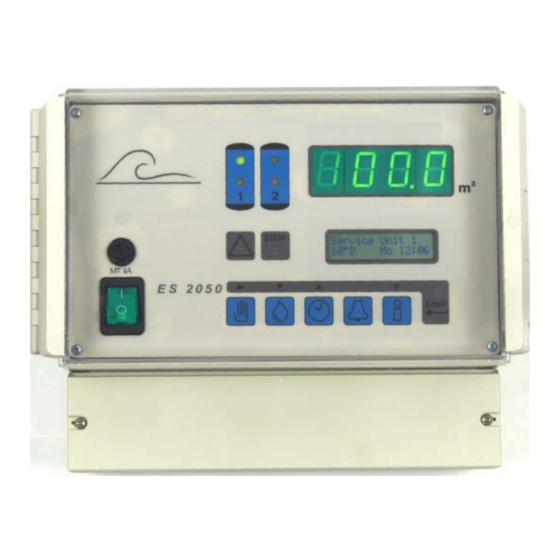

ES 2050/51 Wall mounted ES 2050 Panel mounted ES 2051 Wall mounted ES 2050 1 Service unit 1 Position cursor 15 Numerical input 2 Regeneration unit1 Supply water hardness 16 Programming 3 Alarms 10 Next program 17 service unit 2... -
Page 6: Status And Regenerationmessages
ES 2050/51 Status and regeneration messages Status and Regeneration messages LED - display m³ Whilst a unit is in service the LED - display indicates the remaining volume of water which can be softened before the next regeneration will be required. -
Page 7: Regeneration Status
ES 2050/51 Status and regeneration messages However some operating regimes will produce alternative messages :- Either: Service unit 1 Reg18:00 17:00 When operating with the control set to prohibit regeneration between certain times (section 3 of the programming instructions), if regeneration is required it will be postponed and the initiation signal stored until the end of the prohibited period, the second line of the display will show the time at which the unit will commence regeneration and the current time. -
Page 8: Changing And Indication Of Programme Values
ES 2050/51 Changing and indication of program values Changing and indication of programme values. The most important programme values can be recalled and, changed if required, by pressing a key. Hardness of the water supply. Press the "Hardness" key, indicated by the symbol , to display the supply water hardness. -
Page 9: Current Time
ES 2050/51 Changing and indication of program values Current Time. Press the "Time" key indicated by the symbol , to display the current time. Current Time Mo 16:48 Should it be necessary to change the programmed value; the arrow key "8" may be used to move the flashing cursor to the digit to be changed, and the Number key "#"... -
Page 10: Additional Program
ES 2050/51 Changing and indication of program values IntRg 72 if the control has been set to initiate regeneration after a programmed time interval (section 4 of the programming instructions), this part of the display shows programmed time interval in hours. -
Page 11: Inputs
ES 2050/51 Changing and indication of program values Inputs. Input WM0 RC0 WA0 RS0 Indicates the current status of each input, the inputs are :- WM = water meter RC = regeneration chemicals WA = wait RS = regeneration start Inputs WM, WA, and RS are shown as active when the external contacts are closed, RC is active when the external contact is open. -
Page 12: Alarms / Warnings
ES 2050/51 Alarms / warnings Alarms / warnings. When the equipment is operating, various messages may appear in the display, this facility can be used to drive relay outputs or to give alarms or warnings. The relay positions are indicated by red control lamps bearing symbols for "Attention"... -
Page 13: Electrical Supply Failure
ES 2050/51 Alarms / warnings Electrical supply failure. Message Supply failure If there is a failure of the power supply no status information will be lost. The control panel "remembers" the condition it was in when the supply is interrupted. -
Page 14: Await Regeneration
ES 2050/51 Alarms / warnings Await regeneration. Message Wait This message appears during the regeneration cycle only if there is a "Wait" contact, for example a water pressure switch intended to prevent regeneration when there is insufficient water pressure, connected. -
Page 15: Minimum Inter Regeneration Time Limit
ES 2050/51 Alarms / warnings Minimum inter regeneration time limit. Minimum regene- ration period This message will only appear if a minimum interval between regeneration’s has been programmed (section 5 of the programming instructions). Possible causes when the plant is controlled by a water meter: Wrongly programmed capacity. -
Page 16: Manual Regeneration Initiation
ES 2050/51 Manual regeneration initiation Manual regeneration initiation. A regeneration may be manually initiated at any time. Press the "REGENERATION INITIATION" key , after 2 seconds regeneration of the on line unit is initiated. indicated by the symbol With duplex installations operating in standby mode the stand by unit is brought into service. -
Page 17: Remote Control
ES 2050/51 Remote control Remote control. The following functions may be remotely controlled by switch contacts connected to the terminal strip of the controller :- "water meter" Signal input. "Contact head"/"reed" water meters give a pulse each time a fixed volume of water has registered e.g. of every 100 litres. -
Page 18: Start" Signal Input
ES 2050/51 Remote control , is pressed, the "WAIT" signal will When "REGENERATION INITIATION" indicated by the symbol be suspended for the duration of the regeneration cycle. When using the fast program key facility, (see special functions page 16) it is possible to step forward to the next regeneration step. -
Page 19: Special Functions
ES 2050/51 Special functions Special functions. These functions should only be used by a trained specialist, ill considered use of these functions will cause operating problems. Duty changeover without regeneration. Press the "UNLOCK" key and the "INFORMATION" key simultaneously. On a duplex plant duty changeover takes place after 2 seconds delay. -
Page 20: Fast Program Facility
ES 2050/51 Special functions Fast program facility. Press the "REGENERATION INITIATION" key and the "INFORMATION" key simultaneously, after 2 seconds delay the internal timer switches from minutes to seconds for the remainder of the current program step, at the end of the current step the timer returns to normal, the next regeneration step proceeds normally. -
Page 21: Setting And Changing Of Initial Values
ES 2050/51 Setting and changing of initial values Setting and changing of initial values. During the commissioning of a water softener the basic parameters for the installation must be programmed into the controller. These values can be modified later but they will not be corrupted or lost by an electrical supply failure. -
Page 22: Duty Changeover
ES 2050/51 Setting and changing of initial values Duty changeover, Pre service regeneration 1. Duty changeover. Step nr: Single unit A simplex installation (consists of only) one unit. Connections for number 2 unit are unused. Step nr: 2-tank alter.Y/N A duplex installation usually works in standby mode (one unit gives treated water, the other one is in regeneration or in standby). -
Page 23: Prohibited Regeneration Period
ES 2050/51 Setting and changing of initial values Prohibited regeneration period 3. Prohibited regeneration period. Step nr: Time Delayed Y/N A regeneration may be started at any time of the day but, for operational reasons, there may be times when regeneration would be undesirable e.g. -
Page 24: Start On Real Time Clock
ES 2050/51 Setting and changing of initial values Starting on real time clock 3. Starting on real time clock 3.1 / 3.5 Step no.: Time start A regeneration can be started depending of the real time clock. There is the possibility for programming two starting times at one day... -
Page 25: Time Controlled Regeneration
ES 2050/51 Setting and changing of initial values Time controlled regeneration 4. Time controlled regeneration Step nr: Interim startY/N Regeneration can be initiated at fixed time intervals. This operating mode is selected if a water meter is not desired either because the water usage is regular and predictable or for operational reasons. -
Page 26: Minimum Time Between Regeneration's
ES 2050/51 Setting and changing of initial values Minimum time between regenerations 5. Minimum time between regeneration’s. Step nr: Min.reg.time Based on the capacity of the installation, the incoming water hardness and flow rate, the minimum time between two regeneration cycles can be calculated. -
Page 27: Water Meter
ES 2050/51 Setting and changing of initial values Water meter, flow pulse 6. Water meter Using a contact head/reed water Step nr: meter, the volume of treated water produced is measured and, when the Watermeter pre-programmed quantity of water has been supplied, regeneration is initiated. -
Page 28: Incoming Water Supply Hardness
ES 2050/51 Setting and changing of initial values Incoming water suply hardness 8. Incoming water supply hardness. Any of the following units of measurement of water hardness can be used when operating the controller: °D = German water hardness mg/l = parts per million CaCO °F = French water hardness... -
Page 29: Exchange Capacity
ES 2050/51 Setting and changing of initial values Exchange capacity 9. Exchange capacity. Step nr: Capacity 1800 The unit of exchange capacity is dependant on the unit chosen in step 8. It gives the amount of softened water in m as indicated in the chosen unit of hardness. -
Page 30: Pre Regeneration Signalling
ES 2050/51 Setting and changing of initial values Pre regeneration signalling 10. Pre regeneration signalling Step nr: 10.1 Pre contact It is sometimes necessary to give a warning or to signal to another unit before the duty water softener is exhausted. -
Page 31: Number Of Valve Switching Pulses
ES 2050/51 Setting and changing of initial values Number of valve switching pulses, Electrical control 11. Number of valve switching pulses Step nr: 11.0 Stage Remote control valves and pilot stagers are available with up to 9 steps. In this section of programming the number of control switch steps must be entered. - Page 32 ES 2050/51 Setting and changing of initial values Electrical control Example 4 stage valve Example 5 stage valve IMPORTANT With using 5 step switching, the 5th step is activated with a voltage on connections 5-8. Pulse switching. Step nr: 12.2...
-
Page 33: Pulse Timing
ES 2050/51 Setting and changing of initial values Electrical control, Pulse timing Remote Control. With the remote control facility, the central control valve only requires a starting pulse on the connections 5-7 to perform the complete regeneration cycle. The times for the different regeneration steps are, generally speaking, catered for by... -
Page 34: Regeneration Times
ES 2050/51 Setting and changing of initial values Regeneration times 14. Regeneration times. The duration of each stage of regeneration must be programmed. The number of stages was selected in programming section 11. No times need to be programmed for the "SERVICE" condition. -
Page 35: Additional Programme
ES 2050/51 Setting and changing of initial values Regeneration-additional programme, Flushing, Hight pressure pump 15.Additional programme (Regeneration-additional programme, Flushing, High pressure pump). Step nr: 15.1 Outp.AD:AD|FL|HP The output "AD" (Additional Programme) can be used for the following functions: Either:- AD = An additional programme during regeneration. This allows control of a valve or pump before, during or after a regeneration. - Page 36 ES 2050/51 Setting and changing of initial values Regeneration-additional programme AD = Additional program during regeneration Step nr: 15.2 Start phase: It is possible to use the additional programme before the start of the actual regeneration, that means before the regeneration valve is initiated.
- Page 37 ES 2050/51 Setting and changing of initial values Regeneration-additional programme, Flushing Step nr: 15.3 Time "ON" The duration of the additional program (Relay on / Relay off) can be programmed for between 1 and 999 minutes. Step nr: 15.4 S.V.chng ovr Y/N If the additional program is active before the actual regeneration (“pre...
-
Page 38: Alarm And Warning Relay Outputs
ES 2050/51 Setting and changing of initial values Alarm and warning relay outputs 16. Alarm and warning relay outputs. During service and regeneration various signals are available which can be used to trigger either the alarm or warning relays. A comprehensive description of these signals is given earlier under the heading Alarms/warnings. -
Page 39: Refill Chemical Tank
ES 2050/51 Setting and changing of initial values Alarm and warning relay outputs Input “Wait” Refill chemical tank. Step nr: 16.8 Reg.tank low Y/N It can be determined whether the operating valve of single filter Step nr: 16.9 systems is to be closed or open in the event of a fault. -
Page 40: Start" Input
ES 2050/51 Setting and changing of initial values Alarm and warning relay outputs Input “Wait” 18. "Start" input Regeneration delay 1 This time setting (0-999 seconds) Step nr: 18.1 determines number seconds the "Start" input is Reg. Delay 1 600s... -
Page 41: Typical Installation Diagram
ES 2050/51 Tipical installation diagram Remote monitoring control Typical installation diagram. Remote monitoring control. In order to permit remote monitoring of the water softening unit, a number of volt free relay contacts are available. Additional contacts can be obtained by wiring in of external relays. -
Page 42: Typical Electrical Wiring Diagrams
ES 2050/51 Tipical Electrical wiring diagrams Typical Electrical wiring diagrams. Remote control valves or pilot stagers which do not automatically return to the service position. Two or four steps. Changeover switch control of positioning. The live output is switched between terminals 6(13) and 7(14) Remote control valves or pilot stagers which automatically return to the service condition. - Page 43 ES 2050/51 Tipical Electrical wiring diagrams Local motor isolators may be required connected to the relay output. l1 and C to be bridged. Splitting of the additional program output with connections for two additional isolating valves AD1 and AD2. With the help of two extra relays it is possible to connect the output of the additional program to two unit dependant isolation valves if required.
-
Page 44: Electrical Connection Details
ES 2050/51 Electrical connection details ES 2050 and ES 2051... -
Page 45: Installation Recommendations And Commissioning
ES 2050/51 Installation recommendations and commissioning Installation recommendations and commissioning Mount the control at eye level in a convenient place for the user. Do not mount under pipe work if there is risk of condensation. Apply protection and screening as necessary. -
Page 46: Technical Specifications
Ambient temperature: 0 - 50 C Weight: approximately 2.8 kg Dimensions Type ES 2050 (wall mounted): W x H x D = 263 x 216 x 142 Dimensions Type ES 2051 (panel mounted): DIN 43 700 front 192 x 144... -
Page 47: Declaration Of Conformity
: EN 61000-6-2:2005 Electrical Safety : EN 60204 Low voltage directive : 2006/95/EG Report Report number : EWS / EMC / ES2050 This declaration was issued by : Date : 12 - 10 - 2015 Name : V. Naeber Signature... - Page 48 Shipping charges proceed from returning goods by the customer. (Shipping charges for returning goods to the customer are for the account of EWS). All the costs which exceed the obligations of EWS under this Warranty, such as, but not limited to, travel and accommodation costs and costs for assembly and dismantling are for the account and risk of the customer.
- Page 49 EWS shall not be liable for: Damage to other property caused by defects in the EWS product, damages based upon inconvenience, loss of use of the product, loss of time,...
