Summary of Contents for ESX VISION NAVICEIVER VNC711 FI-DUCATO

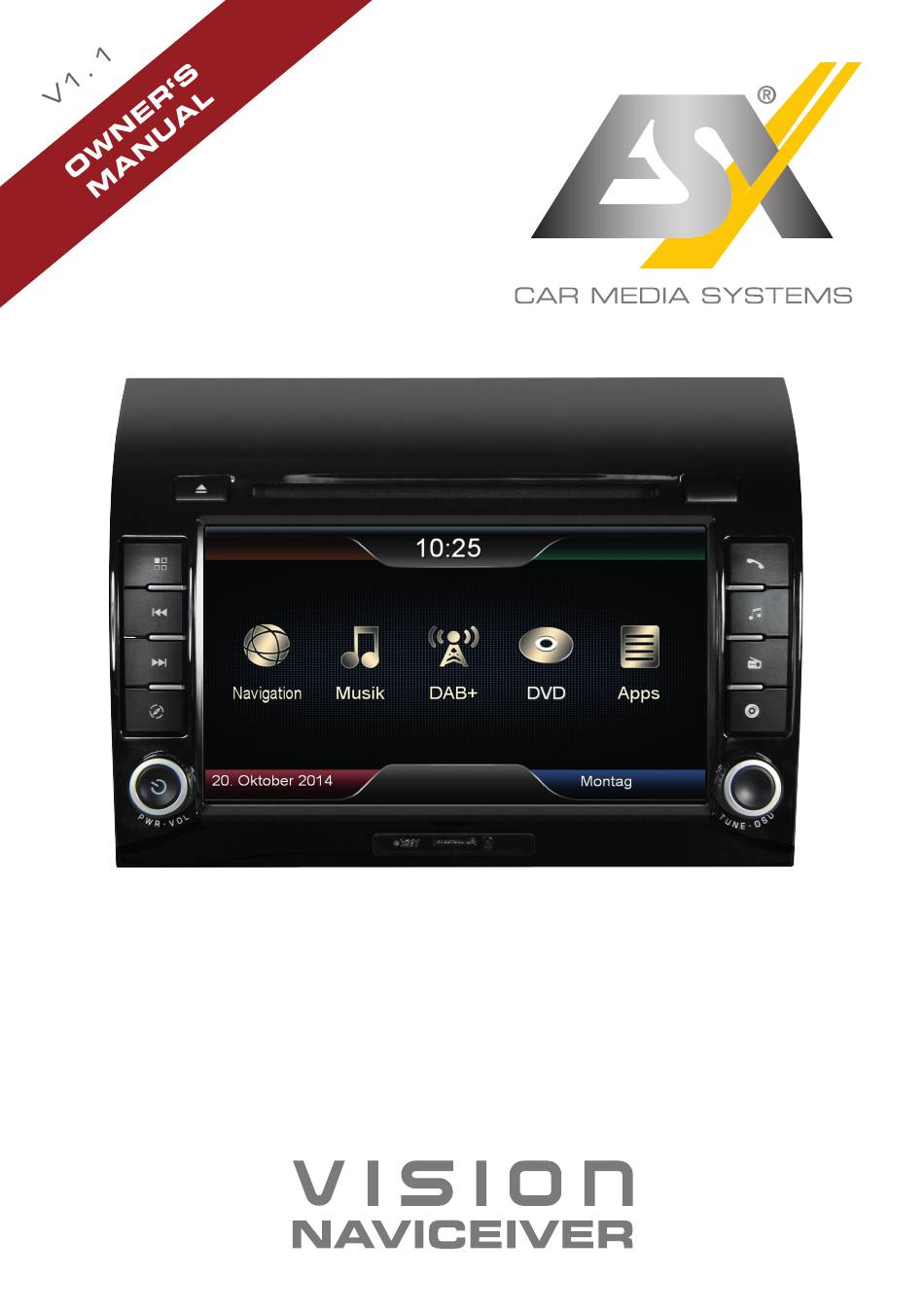

  • Page 1 VNC711 FI-DUCATO VNC711 FI-DUCATO-DAB...
  • Page 2 INTRODUCTION Always follow the instructions in this manual before using the device. Please keep this ma- nual easily accessible in the vehicle for future reference. Features • iGo Primo, 3D Navisoftware with TMC on 8GB SD card, 46 countries including Turkey with Points of Interests display and search function, 3D building views, TTS voice output, warnings, over 25 system and prompt languages .

  • Page 3: Table Of Contents

    INDEX Safety Information ...........................4 Basic functions ............................6 Operating elements ..................................6 Main menu ....................................8 Navigation ....................................9 Audio Player .....................................10 Radio AM/FM ....................................12 DAB+ Radio ....................................15 DVD (DVD/CD-Player) ................................18 Apps (Applications) ...................................20 – Bluetooth™ ..................................21 – LinkPod (optional) ................................24 – Video ....................................24 –...

  • Page 4: Safety Information

    SAFETY INFORMATION • In general, the assembly and installation of the device must be performed by a trained and technically skilled specialists, as the installation and connection of the device requires complex knowledge. • This device is only suitable for the operation in a vehicle with an on-board voltage of 12 volts, negative ground.
  • Page 5 SAFETY INFORMATION • The device supports only DVD/CD standard disk size of diameter with 12 cm. Do not attempt to insert disks with a different size or any other object into the disk slot. Be sure to load only one disk at the same time.

  • Page 6: Basic Functions

    BASIC FUNCTIONS OPERATING ELEMENTS VNC711-FI-DUCATO-DAB 10. Open the navigation system Eject the inserted CD/DVD 11. Open the DVD/CD player Slot for CD/DVD disks (Ø 12 cm) 12. Power on / off / stand by (short tap) IR receiver Power on if ignition is turned off (AAC) Open the main menu Volume controller (rotate) Open the Bluetooth™...
  • Page 7 BASIC FUNCTIONS OPERATING ELEMENTS VNC711-FI-DUCATO 10. Open the navigation system Eject the inserted CD/DVD 11. Open the DVD/CD player Slot for CD/DVD disks (Ø 12 cm) 12. Power on / off / stand by (short tap) IR receiver Power on if ignition is turned off (AAC) Open the main menu Volume controller (rotate) Open the Bluetooth™...

  • Page 8: Main Menu

    BASIC FUNCTIONS MAIN MENU After power on, the device displays the main menu. By pressing the „MENU“ button on the device, you can also get into the main menu. Depending on the selected design theme (Skin), the current date and time will be displayed here. Depending on the selected design theme (Skin), the current audio player or radio station information will be displayed here.

  • Page 9: Navigation

    BASIC FUNCTIONS NAVIGATION Open the navigation application by tapping „Navigator“ in the main menu or by pressing the „ “ button on the device. Please refer to the separate manual for the navigation software. The device provides the ability to use any navigation software (Windows CE 6.0 compatible). Patch the naviga- tion software path (on microSD card) with the device as follows: Tap on „Apps“.

  • Page 10: Audio Player

    BASIC FUNCTIONS AUDIO-PLAYER Open the audio player by tapping „Music“ in the main menu or by pressing the „ “ button on the device. The audio player supports audio formats like MP3, WMA and WAV. Refer to page 14 for CD Audio playback.
  • Page 11 BASIC FUNCTIONS Playback mode and playlist Tap on the gear icon and then on: „Scan“ for a short playback of each song in the playlist. „Random“ for a randomized playback within all titles. „Repeat“ to replay the current title. „Save playlist“ to save the current playlist on „Local“. „Clear list“...

  • Page 12: Radio Am/Fm

    BASIC FUNCTIONS RADIO AM/FM Open the radio application by tapping „Radio“ in the main menu or by pressing the „ “ button on the device. Displays the current frequency band and the RDS (AF, TA, PTY) features. current station frequency, tap here for directly 10.
  • Page 13 BASIC FUNCTIONS Settings and station presets Tap on an empty or already occupied preset field and hold it for 1-2 seconds and the currently running station is stored there. Einstellungen und Senderspeicher Tap on the „gear icon“ to open the settings and then: „Rename Station“...
  • Page 14 BASIC FUNCTIONS RDS functions This device supports RDS (Radio Data System) in the frequency range 87.5 - 107.9 MHz FM. The fol- lowing RDS functions are only available if they are supported by the selected radio station. AF (Alternative Frequency) The AF function enables the automatic switching of the recei- ving frequency when leaving the reception range of a trans- mitter.

  • Page 15: Dab+ Radio

    DAB+ function is not guaranteed. The DAB+ function is only integrated in the VNC711-DUCATO-DAB device. A retrofitting DAB+ function is possible, please contact the ESX Customer Service (refer to page 43). Tap on „DAB+“.
  • Page 16 BASIC FUNCTIONS Direct frequency input: This function is only used to verify the local reception situation or to test an individual frequency block. Type in the desired frequency into the white box (only numbers and dot) and confirm the entry by tapping „Scan“. NOTE: After such a confined search only the channels in the selected frequency will be displayed in the channel list and in the favorites list!*...
  • Page 17 BASIC FUNCTIONS Under „Channel Info“ you will find detailed To select your favorites, you can tap now the information about the current station. channel fields in the favorite list. Use the red arrows to switch to the previous or next fa- vorite list.

  • Page 18: Dvd (Dvd/Cd-Player)

    BASIC FUNCTIONS (DVD/CD-Player) The DVD player supports the following formats: DVD, DVD-R/RW, DVD+R/RW, VCD, CD, CD-R/RW, MP3. Open the DVD application by tapping „DVD“ in the main menu or by pressing the „ “ button on the device. Tap during DVD playback on any spot on the display to open the DVD menu. When you playback a CD or MP3-CD, the user interface is different.
  • Page 19 BASIC FUNCTIONS Tap here to open the System Settings of the Tap here to open the title menu. DVD player, where general settings, audio Tap here for the information of the currently settings, video settings and language settings inserted media. Tap again to hide the display. can be specified.

  • Page 20: Apps (Applications)

    BASIC FUNCTIONS APPS Open the application menu by tapping on „Apps“ in the main menu. The device offers a variety of applications that can be used as described below. Some of these func- tions require the appropriate accessories. Tap here to open the LinkPod Menu, when an Tap here to go back to the Main Menu iPod/iPhone is connected with the device.

  • Page 21: Bluetooth

    BASIC FUNCTIONS BLUETOOTH™ Open the Bluetooth™ application by tapping „Bluetooth™“ in the main menu (if layouted) or by pressing the „ “ button on the device. GERÄTE VERBINDEN At first pair the devices, if necessary refer to the manual of your mobile phone.
  • Page 22 BASIC FUNCTIONS CONTACTS AND CALL HISTORY Once your mobile phone has been connected via Bluetooth to the device, the synchronization of your contacts and call history starts automatically. Tap on „Contacts“. Tap on a name to start a phone call. Tap on the white search field to search for Tap on „History“.
  • Page 23 BASIC FUNCTIONS Tap on „Dialled“ to display the already tran- To synchronize your contacs and call history sacted phone calls. tap on „Sync. Now“. TASTATUR Tap on „Keypad“ to enter phone numbers manually. Then enter the desired number and then tap the green phone icon to start dialing.

  • Page 24: Linkpod (Optional)

    BASIC FUNCTIONS LinkPod (optional) Make sure that the iPod™ is properly connected to the device via the supplied USB cable. This cable allows also the connec- tion of an iPhone™ to use its built-in audio playback mode. The battery is charged via the USB port when the device is switched on.

  • Page 25: Tv (Optional)

    BASIC FUNCTIONS (optional) The device offers the possibility to connect and operate a se- parate TV tuner (DVBT) for the reception of digital TV signals. Optionally, it is also possible to connect and operate an exter- nal digital radio receiver (DAB, DAB+). Depending on the model the touchscreen function is enabled.

  • Page 26: Internet (Optional)

    BASIC FUNCTIONS Tap on „Option“ to perform file operations, such as deleting or copying files. With the copy function, it is possible to move files to another location or to another disk. Once you have open an image file, you can start a slideshow of all the pictures stored in the directory.

  • Page 27: Audio Settings

    BASIC FUNCTIONS Audio You can open the audio settings in the main menu by tapping on „Apps“ and „Audio“ or by pressing the right rotary control (except while DVD/TV playback) on the device. Sound adjustment Acoustic center Tap on one of the control bars to change the Tap on one of the seating positions or on the sound adjustment.
  • Page 28 BASIC FUNCTIONS Advance Setting Tap on „Advance“ to open the advanced audio settings. On the left under „Channel Pre-Volume“ you can set the indi- vidual volume for each application. Just tap on the arrow icons to change the value upward or downward. Scroll down the left field to display all applications.

  • Page 29: Rear Media (Optional)

    BASIC FUNCTIONS Scroll down on the right to get to the crossover settings for the subwoofer and a center speaker. This is only useful if a subwoofer or center speaker is used. Subwoofer (optional) Under „Frequency“ you can set the cut-off value and only the frequencies below this value will be played via the subwoo- fer.
  • Page 30 BASIC FUNCTIONS Option You can open the option menu by tapping on „Option“ in the „Apps“ menu. Language settings Tap on „Skin“. Select the desired language. Tap on „Apply“. User interface Tap on „Skin“. Tap on the menu „Skins“ and select the desired design theme (skin).
  • Page 31 BASIC FUNCTIONS Date/Time Tap on „Date/Time“. Select the desired time zone. Set the current date. Set the current time. Tap on the checkbox right to set on daylight Tap on „Apply“. saving time. Tap on the checkbox left to set the time for- mat to 12-hours (AM / PM).
  • Page 32 BASIC FUNCTIONS Display Tap on „Display“. Set the desired brightness level for the dis- play. The checkbox „CCD Camera“, enables the optional rear view camera function. As soon as reverse gear is engaged, the transmission of the video camera is automatically displayed on the screen.

  • Page 33: Custom Settings

    CUSTOM SETTINGS Menu assignment You have the possibility to arrange the main menu or apps menu to your liking. To change the position of a control panel, press and hold for 5 seconds the regarding panel in the main or apps menu until the dashed lines are visible.

  • Page 34: Wallpaper

    CUSTOM SETTINGS Wallpaper You have the possibility to customize the background image to your liking. First, copy the desired wallpaper file to the microSD card, the USB stick or on the local hard drive. Tap on „Apps“. Tap on „Options“. Tap at „Wallpaper“...

  • Page 35: Start Logo

    CUSTOM SETTINGS Bootlogo You have the possibility to customize the bootlogo (startup logo) to your liking. First, copy the desired file to the microSD card, the USB stick or on the local hard drive. Open the desired file in the file manager by Tap on „Options“...

  • Page 36: Additional Functions

    ADVANCED OPERATIONS INFRARED REMOTE The included remote control allows you to control some basic functions on the device. Point directly with the front of the remote control to the screen of the device.The distance should not be more than 3 meters. If you use the remote control for the first time, you have to remove the safety foil in the battery compartment on the back.

  • Page 37: Multifunction Steering Wheel

    ADVANCED OPERATIONS MULTI-FUNCTION STEERING WHEEL The device supports a control via the standard multifunction steering wheel.The control buttons are corresponding to the basic function of the device. The operation may vary slightly from car model to car model. First go to the app menu, then to the menu „Option“ and select „Wheel“.

  • Page 38: Troubleshooting

    TROUBLESHOOTING If the following troubleshooting tips do not solve the problem and the malfunction persists, please contact an authorized repair or installation service. Do not open the device or attempt to repair it by yourself. This may cause serious damages to the electronic components of the device and in your vehicle or may void the war- ranty of the device.
  • Page 39 TROUBLESHOOTING Remedy Problems Causes CD/DVD playback The DVD menu can not be The disc does not support menus Insert another disc. opened. or is plagiarism. The picture quality during play- Brightness, contrast and color Check the DVD player settings back is insufficient. saturation are set too low.
  • Page 40 TROUBLESHOOTING Remedy Problems Causes Navigation The navigation application will The software is not compatible Check the compatibility of soft- not start. with the device. ware with Windows CE 6, or get yourself a compatible version. The software was not installed Check the settings under on the device properly.
  • Page 41 TROUBLESHOOTING Remedy Problems Causes Bluetooth/Phone No connection or pairing of the Bluetooth function of the phone Enable Bluetooth function in the devices. is not enabled. phone settings. Bluetooth enabled but the phone Enable „visible“ in the phone is not visible. settings.

  • Page 42: General Notes

    GENERAL INFORMATION Care and Maintenance This device is equipped with high precision and sensitive technique and should always be treated with caution. Please note the following tips to avoid endangering the warranty and extend the life of the appliance. • Children under 12 should not operate the device. Keep the device and all accessories away from small children.
  • Page 43 GENERAL INFORMATION Legal Notice • ESX or Audio Design GmbH are in no way affiliated with the manufacturer of the vehicle or any of its subsidiaries or affiliated companies connected to, or is acting on its behalf or with its authorization.
  • Page 44 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de ©2017 All Rights Reserved...
