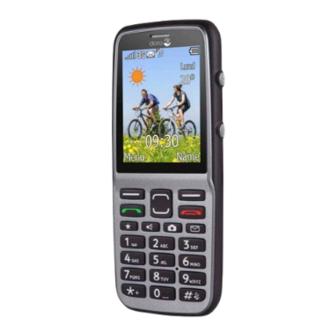

Doro PhoneEasy 530X Quick Start Manual

Doro PhoneEasy 530X
®
Quick Start Guide
English
1
2
3 18
17
4
16
15
5
14
6
13
7
12
8
9
11
10
19 20 21 22 23
www.doro.com
1. Earpiece 13. Camera shortcut
2. Charging socket 14. Message shortcut
3. Headset socket 15. End call /
Power on/off
4. Left selection
button 16. Arrow buttons
5. Call button 17. Right selection
button
6. Top 10
18. Volume control
7. Voice mail
19. Camera lens
8. Torch button
20. Loudspeaker
9. * International
prefix/Symbols 21. Camera flash/Torch
10. Lanyard hold

22. Assistance button

11. # Input method/ 23. Second microphone
Silent
12. Microphone
Note! All illustrations are for illustrative
purposes only and may not accurately depict
the actual device. The items supplied with your
phone might vary depending on the software
and accessories available in your region or
offered by your service provider. You can
obtain additional accessories from your local
Doro dealer. The supplied accessories provide
the best performance with your phone.
Full user manual
For the full user manual, useful links and
more information please visit
www.doro.co.uk/support/ or contact our
Helpline.
Congratulations on your purchase
Doro PhoneEasy® 530X is great for outdoor
use and an active lifestyle thanks to its solid
and splash proof design (IP54). It's easy to
use and brings you loud, clear sound as well
as access to weather info and e-mail.

1. GET STARTED

SIM card, memory card and battery
1. Remove the battery cover
1
Be careful not to damage your
fingernails when you
remove the battery
cover. Do not bend or
twist the battery cover
excessively as it may be
damaged.
2. Insert the SIM card
2
(required)
Remove the battery if it is
already installed. Locate
the SIM card holder and
3
gently slide the card in
the holder.
See the label right next
to the holder for guidance on how to insert
the card. This device accepts micro SIM or
3FF SIM card.
3. Insert the SD card (optional)
Locate the SD card holder and gently slide
the card in the holder. The device works with
or without a SD card installed. Compatible
card type: microSD, microSDHC.
4. Replace the battery cover
4
Insert the battery by
sliding it into the battery
compartment with
the contacts facing
downwards to the right.
Replace the battery
cover.
Charge the phone
CAUTION
Only use batteries, charger and accessories
that have been approved for use with
this particular model. Connecting other
accessories may be dangerous and may
invalidate the phone's type approval and
guarantee.
When the battery is running low,
displayed and a warning signal is heard.
B
A
• Connect the mains adapter to a wall
socket and to the charging socket y
(A) or place the device in the cradle (B).
Alternatively connect the cable to the
charging socket y on the phone and to
a USB port on a computer.

2. GET TO KNOW YOUR PHONE

Turn the phone on and off
1. Press and hold the red button
the phone to turn it on/off. Confirm with
Yes to power off.
2. If the SIM card is valid but protected with a
PIN code (Personal Identification Number),
PIN is displayed. Enter the PIN code and
press OK. Delete with Clear.
Note! If PIN and PUK codes were not
provided with your SIM card, please contact
your service provider.
Tip: It is recommended to remove the
protective plastic film from the display to
enhance the visibility.
Attempts: # shows the number of PIN
attempts left. When no more attempts
remain, PIN blocked is displayed. The SIM
card must now be unlocked with the PUK
code (Personal Unblocking Key).
1. Enter the PUK code and confirm with OK.
2. Enter a new PIN code and confirm with OK.
3. Re-enter the new PIN code and confirm
with OK.
Start-up wizard
When starting the telephone for the first time,
you can use the start-up wizard to set some
basic settings.
Tip: You can run the start-up wizard later if
you want.
Step-by-step instructions
The arrow (â) indicates next action in step-
by-step instructions. To confirm an action,
press OK. To select an item, scroll or highlight
the item using / and then press OK.
Enter text
• Press a numerical key repeatedly until
the desired character is shown. Wait a
few seconds before entering the next
character.
• Press for a list of special characters.
*
Select the desired character with
and press OK to enter it.
• Use / to move the cursor within the
text.
• Press to cycle upper case, lower case
#
and numerals.
• Press and hold to change writing
#
language.
Predictive text
In some languages you can use the Smart
ABC (eZiType ) input method which uses a
™
dictionary to suggest words.
1. Press Menu â Settings â Messages â
Predictive text.
2. Select On to enable, or Off to disable.
3. Press OK to confirm.
Keypad lock
You can lock the keypad to prevent the keys
being accidentally pressed.
• Press and hold to lock and to unlock
*
the keypad.
Keylock settings
1. Press Menu â Settings â Security â
Keypad lock:
• Auto keylock select the time delay for
automatic keypad locking.
• Unlock mode select Single key to
unlock the keypad with alterna-
*
tively with Dual key to lock and to
unlock with right selection button
(Name/Unlock) and
2. Press OK to confirm.
Change language, time and date
The default language is determined by the
SIM card. See Phone settings in the complete
manual on how to change language, time and
date.
is

3. CALLS

Make a call
1. Enter the phone number including the
area code. Delete with Clear.
2. Press to dial. Press Abort to cancel
the call.
3. Press to end the call.
Note! For international calls, always use +
before the country code for best operation.
Press twice for the international prefix +.
*
Call from the phonebook
1. Press Name to open the phonebook.
2. Use / to scroll through the
phonebook, or quick search by pressing
the key corresponding to the first letter of
the name.
3. Press Options â Call, alternatively, press
to dial the selected entry, or press
Back to return to standby.
Receive a call
1. Press to answer, or press Silent to
switch off the ring signal and then Reject
to reject the call (busy signal).
Alternately, press
directly.
on
2. Press to end the call.
Volume control
Use the side buttons +/– or
adjust the sound volume during a call. The
volume level is indicated on the display.
Silent
Silent is a fixed profile with keypad tone,
message tone and ring tone disabled, while
vibration, tasks and alarm are unchanged.
• Press and hold to activate and to
#
deactivate silent.
Call options
During a call the selection buttons (
access to additional functions.
Speed dial
Use and – to speed dial an entry from
0 2 9
standby.
• Press and hold the corresponding button
to dial.
Add speed dial numbers
1. Press Menu â Settings â Phonebook â
Speed dial.
2. Select â Add and select an entry from
0
the phonebook.
3. Press OK to confirm.
4. Repeat to add speed dial entries for
buttons – .
2 9
SOS calls
As long as the phone is switched on, it is
always possible to place an SOS call by
entering the main local emergency number
for your present location followed by
Call log
Received, missed, and dialled calls are saved in
a combined call log. 20 calls of each type can be
stored in the log. For multiple calls related to the
/
same number, only the most recent call is saved.
1. Press .
2. Use / to scroll through the call log.
= Received call
= Dialled call
= Missed call
3. Press to dial, or Options.

4. PHONEBOOK

The Phonebook can store 500 entries with 3
phone numbers in each entry.
Add contact
1. Press Menu â Phonebook â
-New contact- â Add.
2. Enter a Name for the contact, see
Enter text. Delete with Clear.
3. Use / to select
Home or Office, and enter the
phone number(s) including the area code.
4. When done, press Save.
ICE (In Case of Emergency)
In the event of a trauma, it is critical to
have this information as early as possible
to increase the chances of survival. Add ICE
contact to improve your own safety. First
responders can access additional information
. such as medication and next of kin from your
*
phone in case of an emergency. All fields are
optional, but the more information provided
the better.
Press Menu â Phonebook â ICE.
5. Use /
6. Press Edit to add or edit information in
each entry. Delete with Clear.
7. Press Save when done.
Settings
• Press Menu â ICE.
5. ASSISTANCE BUTTON
The assistance button allows easy access to
contact your predefined help numbers should
you need help. Make sure that the assistance
function is activated before use. See the
full manual on how to activate, how to enter
recipients in the numbers list, and how to edit
the text message.
Make an assistance call
1. When help is needed, press and hold the
assistance button for 3 seconds, or press
it twice within 1 second.
The assistance call begins after a delay of
5 seconds. In this time you can prevent a
possible false alarm by pressing
2. An assistance text message (SMS) is sent
to all recipients.The first recipient in the
list is dialled. If the call is not answered
within 25 seconds, the next number is
dialled. Dialling is repeated 3 times or
until the call is answered, or until
to reject the call
pressed.
CAUTION
When an assistance call is activated the
phone is pre-set to handsfree mode. Do
/ to
not hold the device near your ear when
the handsfree mode is in use, because the
volume may be extremely loud.
Settings
• Press Menu â Settings â Assistance.

6. MESSAGES

Create and send text messages
1. Press shortcut button
) give or press Menu â Messages â Create new
â SMS.
2. Write your message, see Enter text, then
press To.
3. Select a recipient from Phonebook.
Alternatively, select Enter number to add
recipient manually and press Done.
4. Select Add to add more recipients.
You can modify the recipients by selecting
one and press Options â Edit/Delete/
Delete all.
5. When done, press Send.
Create and send picture messages
Both you and the recipient must have sub-
scriptions that support picture message. The
settings for picture message are supplied by
your service provider and can be sent to you
automatically via text message.
1. Press shortcut button
or press Menu â Messages â Create new
â MMS.
2. Write your message, see Enter text.
.
3. Press Options â Add picture:
• My pictures to select a file.
• Take picture to use the camera to take a
picture.
You can also Add sound, Add video, and
Preview MMS using the Options menu.
4. Press Options â Add subject and enter
your subject, then press Done.
5. Press Options â To and select recipient
from Phonebook.
Alternatively, select Enter number to add
recipient manually and press Done.
6. Press Add to add more recipients.
7. Press Send to send.
Note! To keep best picture quality, send only
one picture per message.
Settings
• Press Menu â Settings â Messages.

7. CAMERA (TAKE PHOTOS)

You can take photos, record videos and view
your photos and videos.
Mobile, 1. Press shortcut button
Alternatively press Menu â Camera.
2. Press to take the photo.
3. Press Options or press Back to take a new
photo (if you do not make any selection
the picture is saved).
Settings
• Press Menu â Settings â Camera.
to scroll the list of entries.
.
is
,
,
.
