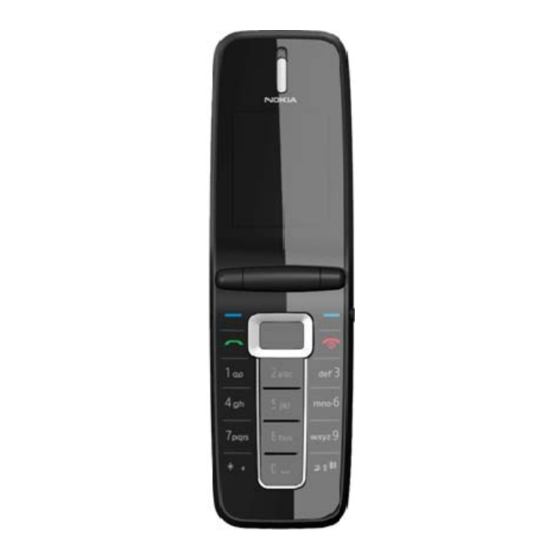

- Page 1 Nokia RH-109 User Guide...
- Page 2 © 2008 Nokia. All rights reserved. Nokia, Nokia Connecting People, and Navi are trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.
- Page 3 Nokia’s licensors. The availability of particular products and applications and services for these products may vary by region. Please check with your Nokia dealer for details, and availability of language options. Export controls This device may contain commodities, technology, or software subject to export laws and regulations from the US and other countries.
-
Page 4: Table Of Contents
Write text ........................ 16 Messaging ....................... 17 Contacts........................18 Voice recorder ......................18 Connectivity......................19 4. Enhancements..............20 5. Battery information ............21 Charging and discharging................... 21 Nokia battery authentication guidelines............24 Care and maintenance............27 Additional safety information ..........29... -
Page 5: Safety
SAFETY Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY phone Do not switch the device on when wireless is prohibited or when it may cause interference or danger. - Page 6 ENHANCEMENTS AND BATTERIES Use only approved enhancements and batteries. Do not connect incompatible products. WATER-RESISTANCE Your device is not water-resistant. Keep it dry.
- Page 7 ■ About your device The wireless device described in this guide is approved for use on the CDMA 800, 1900, 1700, and 2100 MHz networks. Contact your service provider for more information about networks. When using the features in this device, obey all laws and respect local customs, privacy and legitimate rights of others, including copyrights.
- Page 8 ■ Nokia support on the web Check www.nokia.com/support or your local Nokia web site for the latest guides, additional information, downloads, and services related to your Nokia product...
-
Page 9: Get Started
1. Get started ■ Install and remove battery Note: Always switch the device off and disconnect the charger before removing the battery. 1. Insert your finger into the finger grip (1), and detach the back cover off. 2. Insert the battery into the battery slot (2). Push down on the other end of the battery. -
Page 10: Charge The Battery
■ Charge the battery Warning: Use only batteries, chargers, and enhancements approved by Nokia for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous. For availability of approved enhancements, please check with your dealer. -
Page 11: Switch Your Device On Or Off
■ Switch your device on or off Press and hold the power key for at least three seconds. ■ Normal operating position Your device has an internal antenna. Use the device only in its normal operating position. Note: As with any radio transmitting device, avoid touching the antenna area unnecessarily while the antenna is transmitting or receiving. -
Page 12: Your Device
2. Your device ■ Keys and parts (front) 1. Signal strength 2. Main display 3. Send key 4. Navi™ key; hereafter referred to as scroll Menu Go to Names 5. Microphone 6. Keypad 7. Power/End key 8. Selection key 9. Selection key functions 10.Battery level 11.Earpiece... -
Page 13: Keys And Parts (Side And Back)
■ Keys and parts (Side and Back) 1. Charger port 2. Volume key 3. Mini display 4. Flashlight button 5. Headset port 6. Flashlight... -
Page 14: Main Features
3. Main features Select Menu to access the following features: Messaging — to create, send, open, and manage messages Contacts — to save names and phone numbers in the phone memory — to access phone numbers of missed, received, and dialled calls Settings —... -
Page 15: Make And Answer A Call
■ Make and answer a call To make a call, enter the phone number, including the country code and area code, if necessary, and press the call key. Press the volume key to adjust the volume of the earpiece or headset during the call. To answer a call, press the call key. -
Page 16: Write Text
■ Write text You can enter text using traditional or predictive text input. To use traditional text input, press the key repeatedly until the letter appears. To turn on predictive text input when writing, select Options > Prediction on; to turn it off, select Options >... -
Page 17: Messaging
■ Messaging The message service can only be used when supported by your network or service provider. To send a text message: 1. Select Menu > Messaging > Text messages > Create message. 2. Enter the phone number, or select to retrieve a number from your contacts. -
Page 18: Contacts
4. Select Send to insert the files into the message. 5. Enter the phone number. 6. Enter a subject for the message, and select Send. ■ Contacts You can have up to 400 contacts with multiple numbers and text notes for each contact in your device. To search for a contact, select Menu >... -
Page 19: Connectivity
USB data cable > Ask on connection. To transfer phone data and files between your device and PC using Nokia PC Suite. 1. Connect your PC and your device with a CA-101 USB data cable. 2. Select PC Suite when asked to select the connection mode. -
Page 20: Enhancements
Warning: Use only batteries, chargers, and enhancements approved by Nokia for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous. -
Page 21: Battery Information
When the talk and standby times are noticeably shorter than normal, replace the battery. Use only Nokia approved batteries, and recharge your battery only with Nokia approved chargers designated for this device. Use of an unapproved battery or charger may present a risk of fire, explosion, leakage, or other hazard. - Page 22 Always switch the device off and disconnect the charger before removing the battery. Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime.
- Page 23 performance is particularly limited in temperatures well below freezing. Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste. Do not dismantle, cut, open, crush, bend, deform, puncture, or shred cells or batteries.
-
Page 24: Nokia Battery Authentication Guidelines
If you have any reason to believe that your battery is not an authentic, original Nokia battery, you should refrain from using it, and take it to the nearest authorised Nokia service point or dealer for assistance. - Page 25 What if your battery is not authentic? If you cannot confirm that your Nokia battery with the hologram on the label is an authentic Nokia battery, please do not use the battery. Take it to the nearest authorised Nokia service point or dealer for assistance.
- Page 26 It may also invalidate any approval or warranty applying to the device. To find out more about original Nokia batteries, visit www.nokia.com/battery.
-
Page 27: Care And Maintenance
Care and maintenance Your device is a product of superior design and craftsmanship and should be treated with care. The following suggestions will help you protect your warranty coverage. • Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. - Page 28 • Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. • Do not paint the device. Paint can clog the moving parts and prevent proper operation. • Use only the supplied or an approved replacement antenna. Unauthorised antennas, modifications, or attachments could damage the device and may violate regulations governing radio devices.
-
Page 29: Additional Safety Information
Additional safety information ■ Small children Your device and its enhancements may contain small parts. Keep them out of the reach of small children. ■ Operating environment This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 2.2 centimeters (7/8 inches) away from the body. - Page 30 ■ Medical devices Operation of any radio transmitting equipment, including device wireless s, may interfere with the functionality of inadequately protected medical devices. Consult a physician or the manufacturer of the medical device to determine if they are adequately shielded from external RF energy or if you have any questions.
- Page 31 • Turn the wireless device off immediately if there is any reason to suspect that interference is taking place. • Read and follow the directions from the manufacturer of their implanted medical device. If have any questions about using your wireless device with an implanted medical device, consult your health care provider.
- Page 32 carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or enhancements. For vehicles equipped with an air bag, remember that air bags inflate with great force. Do not place objects, including installed or portable wireless equipment in the area over the air bag or in the air bag deployment area.
- Page 33 often, but not always, clearly marked. They include below deck on boats, chemical transfer or storage facilities and areas where the air contains chemicals or particles such as grain, dust, or metal powders. You should check with the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) to determine if this device can be safely used in their vicinity.
- Page 34 3. Enter the official emergency number for your present location. Emergency numbers vary by location. 4. Press the call key. When making an emergency call, give all the necessary information as accurately as possible. Your wireless device may be the only means of communication at the scene of an accident. Do not end the call until given permission to do so.
- Page 35 SAR values. SAR values may vary depending on national reporting and testing requirements and the network band. Additional SAR information may be provided under product information at www.nokia.com. Your mobile device is also designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA) and Industry Canada.
- Page 36 than others to interference. Please consult your hearing health professional to determine the M-rating of your hearing aid and whether your hearing aid will work with this device. More information on accessibility can be found at www.nokiaaccessibility.com. ■ Technical information Feature Specification Dimensions...
- Page 37 Feature Specification GPS Frequency 1575 MHz ■ Battery information This section provides information about battery charging times with the travel charger (AC-6U), and talk and standby times. The information in this section is subject to change. For more information, contact your service provider. Important: Battery talk and standby times are estimates only and depend on signal strength, network conditions, features used, battery age and condition,...
- Page 38 Operation times are estimates only and depend on signal strength, phone use, network conditions, features used, battery age and condition (including charging habits), temperatures to which the battery is exposed, and many other factors. Function Digital Talk time Up to 3.5 hours Standby time Up to 11 days...
