Summary of Contents for Nokia RH-108

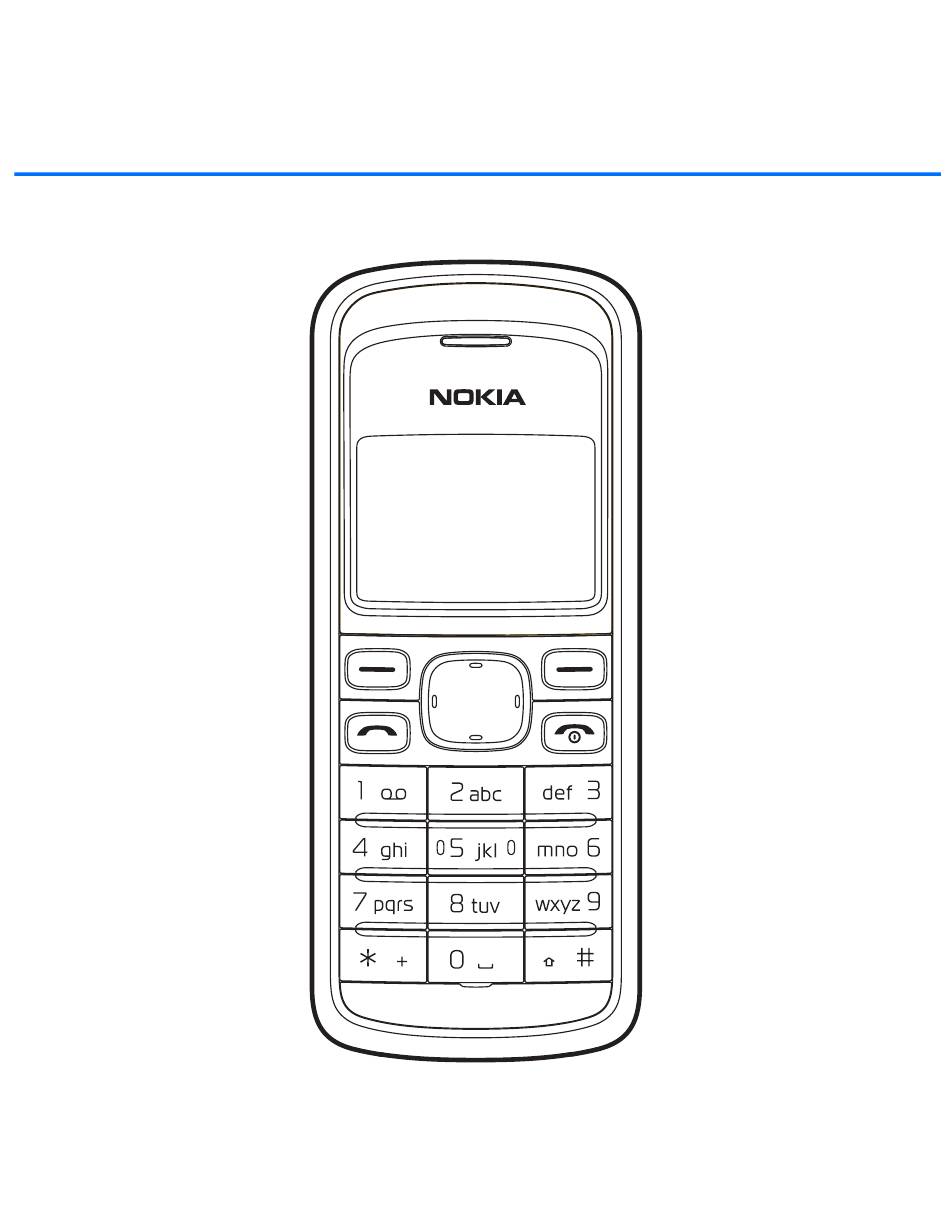

  • Page 1 RH-108 User Guide...
  • Page 2 © 2007 Nokia. All rights reserved. Nokia, Navi and Nokia Connecting People are trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.
  • Page 3 The availability of particular products and applications for these products may vary by region. Please check with your Nokia dealer for details, and availability of language options. Export controls This device may contain commodities, technology, or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.

  • Page 4: Table Of Contents

    Contents ................... 4 For your safety................. 6 General information .............. 11 Access codes......................11 Nokia support on the web .................. 11 1. Get started ................. 12 Install and remove battery ................. 12 Charge the battery....................14 Switch your phone on or off................15 Normal operating position .................
  • Page 5 Settings........................34 Gallery ........................42 Games........................43 Organizer ......................... 43 Downloads....................... 49 6. Enhancements..............50 7. Reference information ............52 Batteries and chargers..................52 Nokia battery authentication ................54 Care and maintenance............58 Additional safety information ..........60 Index ..................70...

  • Page 6: For Your Safety

    For your safety Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY Do not switch the device on when wireless phone use is prohibited or when it may cause interference or danger.
  • Page 7 SWITCH OFF WHEN REFUELING Do not use the device at a refueling point. Do not use near fuel or chemicals. SWITCH OFF NEAR BLASTING Follow any restrictions. Do not use the device where blasting is in progress. USE SENSIBLY Use only in the positions as explained in the product documentation.
  • Page 8 Give your location. Do not end the call until given permission to do so. ■ About your phone The wireless phone (RH-108) described in this guide is approved for use on CDMA 800 and 1900 MHz, and CDMA 2000 1x RTT network. Contact your service provider for more information about networks.
  • Page 9 Copyright protections may prevent some images, music (including ringing tones), and other content from being copied, modified, transferred, or forwarded. Warning: To use any features in this device, other than the alarm clock, the device must be switched on. Do not switch the device on when wireless device use may cause interference or danger.
  • Page 10 order, and icons. Contact your service provider for more information. ■ Shared memory The following features in this device may share memory: Downloaded ring tones and wallpapers. Use of one or more of these features may reduce the memory available for the remaining features sharing memory. Your device may display a message that the memory is full when you try to use a shared memory feature.

  • Page 11: General Information

    ■ Nokia support on the web Check www.nokia.com/support or your local Nokia web site for the latest version of this guide, additional information, downloads, and services related to your...

  • Page 12: Get Started

    1. Get started ■ Install and remove battery Note: Always switch off the power and disconnect the charger and any other device before removing the cover. Avoid touching electronic components while changing the cover. Always store and use the device with the cover attached.
  • Page 13 2. To insert the battery, position the battery so the gold-colored contacts match up with those on the phone, and insert the battery into the battery slot. 3. Push down on the other end of the battery to snap the battery into place.

  • Page 14: Charge The Battery

    ■ Charge the battery Warning: Use only batteries, chargers, and enhancements approved by Nokia for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous. This device is intended for use with a BL-5B battery and AC-3 or AC-4 charger.

  • Page 15: Switch Your Phone On Or Off

    ■ Switch your phone on or off To switch your phone on or off, press and hold the power/end key on the keypad for at least three seconds. Warning: Do not switch on the phone when wireless phone use is prohibited or when it may cause interference or danger.

  • Page 16: Normal Operating Position

    ■ Normal operating position Your device has an internal antenna. Hold the phone as you would any other telephone with the antenna pointed up and over your shoulder. Note: As with any other radio transmitting device, do not touch the antenna unnecessarily when the device is switched on.

  • Page 17: Your Phone

    optimize antenna performance and battery life, avoid contact with the antenna area when operating the device. 2. Your phone ■ Keys and parts 1. Earpiece 2. Right selection key 3. Power/End key 4. Keypad 5. Microphone 6. Charger port 7. Headset port 8.

  • Page 18: Standby Mode And Shortcuts

    ■ Standby mode and shortcuts Depending on your wireless service provider and the model number of your device, some or all of the following selection keys may appear in the standby mode. At the start screen, your phone is idle and standing by for activity.

  • Page 19: Keyguard

    ■ Keyguard The keyguard locks the keypad to prevent keys from being pressed and calls from being made accidentally. To lock the keypad, select Menu, and press * within 2 seconds. To unlock the keypad, select Menu, and press * within 2 seconds.

  • Page 20: Call Functions

    3. Call functions ■ Make and answer a call To make a call, enter the phone number, including the country code and area code if necessary and press the call key to call the number. Scroll right to increase or left to decrease the volume of the earpiece or headset during the phone call.

  • Page 21: Loudspeaker

    the call key to connect the calls. To end the conference call, select Options > End all calls, or press the end key. ■ Loudspeaker You can use your phone as a loudspeaker during a call. Warning: Do not hold the device near your ear when the loudspeaker is in use because the volume may be extremely loud.

  • Page 22: Write Text

    4. Write text You can enter text using traditional or predictive text input. To change the text input method, and to switch between upper and lower case, press the # key. ■ Traditional text input Press a number key, 1 to 9, repeatedly until the desired character appears.

  • Page 23: Predictive Text Input

    number, press and hold the desired number key. To get a list of special characters, press *. ■ Predictive text input Predictive text input is based on a built-in dictionary when writing in English. To turn it on: Select Menu >...

  • Page 24: Menu Functions

    or select Options > Edit word, to enter the word (using traditional text input), and select Save. To get a list of special characters, press and hold *. 5. Menu functions The phone functions are grouped into menus. Not all menu functions or option items are described here.
  • Page 25 amount of numbers and text entries that you can save may vary, depending on length and the total number of entries in the contacts list. To search for a contact, select Contacts > Search, enter the first character of the contact name, and highlight the contact you wish to view.

  • Page 26: Messages

    ■ Messages The message services can only be used when they are supported by your network or service provider. Message settings To edit your message sending settings, select Menu > Messages > Text messages > Message settings > Sending options and one of the following: Message priority—to select the priority of the message as...

  • Page 27: Voice Messages

    Message font size—you can change the font size for message reading and writing. Select Small font Large font. Message overwriting—when the message memory is full, your phone cannot receive any new messages. You can set your phone to automatically overwrite old messages when new ones arrive.

  • Page 28: Create Message

    must be saved to your phone. For more details about voice messages, contact your service provider. To listen to your voice messages recorded in the voice mail box, select Menu > Messages > Voice messages > Listen to voice messages. To access voice mail using speed dial, press and hold key 1.

  • Page 29: Picture Messages

    phone number; or select Search to retrieve a number from your contacts list. Select Send. 6. To send by e-mail, select Send to e-mail. Enter the recipient’s e-mail address; or select Search to retrieve an e-mail address from your contacts list. Select Send. Note: Your device may indicate that your message was sent to the message center number programmed into your device.
  • Page 30 Copyright protections may prevent some pictures from being copied, modified, transferred, or forwarded. To send a picture message, do the following: 1. Select Menu > Messages > Text messages > Create message. 2. Write a message (or enter nothing if you choose to just send a picture), and select Options.

  • Page 31: Inbox, Sent Items, And Drafts Folders

    Read and reply When you receive a message, a notification message is displayed, and the icon appears. 1. Select Show to read the message or Exit to dismiss the notification. Scroll to view the whole message, if necessary. When unopened messages are in your inbox, shown in the standby display mode as a reminder.

  • Page 32: Delete Messages

    as sending and then select Always save Always prompt to deactivate this feature. You can store draft messages in the Drafts folder to edit and send later. In the message editor screen, select Options >Save message >Drafts. Delete messages If your message memory is full and you have more messages waiting at the network, blinks in the standby mode.

  • Page 33: Call Log

    delete all messages. Select Done, and confirm the deletion by pressing at the confirmation note. • read—choose Inbox, Outbox, Sent items, Drafts, or Archive as the desired folder from which you want to delete all read messages. Select Done, and confirm the deletion by pressing at the confirmation note.

  • Page 34: Profiles

    view, or call the registered phone number; save it to contacts; or delete it from the phone memory. You can also send a text message. You can delete any missed, dialed, or received calls from phone memory. Select Menu > Call log >...

  • Page 35: Settings

    personalized to suit your needs. Available profiles are: Normal, Silent, Meeting, Outdoor, and Pager. To activate or customize a profile or set a timed expiration for a profile, select Menu > Profiles, choose a profile and select Activate, Customize, or Timed. You can also press the end key and select to activate a profile (or Switch off! to switch off the phone).

  • Page 36: Phone Settings

    can be set to on at all times, or only when emergency calls are made. Anykey answer—to answer an incoming call by briefly pressing any key except the end key or right selection. Automatic redial—to set your phone to redial a number after an unsuccessful call attempt.

  • Page 37: Time And Date Settings

    Phone language—to select the language for the display text. Automatic keyguard—to set the keypad to lock automatically after a preset time delay. Touch tones—to set the tone duration when you press the keys on your phone keypad. Welcome note—to write a welcome note that briefly appears whenever you switch your phone on.

  • Page 38: Display Settings

    Date—to hide or show the date, set the date, change the date format and date separator. Auto-update of time & date—to have the time and date updated automatically, select On. To update the time and date only after your confirmation, select Confirm first.

  • Page 39: Tone Settings

    Backl. time-out—to control the backlight time-out of your phone display. Tone settings All tone settings can only apply to the currently selected profile. Select Menu > Settings > Tone settings and from the available options: Incoming call alert—to set the alert type for incoming calls.

  • Page 40: Enhancement Settings

    Message alert tone—to set the tone to sound when you receive a text message. Keypad tones—to select the volume level of the keypad tones. Warning tones—to control warning and confirmation tones. Alert for—to select that the phone gives an audible alert only when a member of a selected caller group is calling.
  • Page 41 Network Network menu allows you to customize the way your phone chooses a network in which to operate while you are within or outside of your primary or home system. Your phone is set to search for the most effective network. If your phone cannot find a preferred network, it selects a network automatically based on the option you choose in Network...

  • Page 42: Network Services

    options actually appear in the phone menu. Check with your service provider for more information. Network services Displays available network services and their settings. For the network service availability, please contact your service provider. Select Menu > Settings > Network services, and one of the following options: Network feature...

  • Page 43: Gallery

    ■ Gallery You can use Gallery to manage your image and audio files. Images Images can be used to personalize your phone. To display a list of available images, select Menu > Gallery > Images > Open. You can scroll through the images, select an image and Options Set as...

  • Page 44: Games

    ■ Games Some menus listed are network services. Contact your service provider for more information. In the standby mode, select Menu > Games > Select game to display and play a game on your phone. To adjust common game settings, select Menu >...
  • Page 45 The alarm will still sound even when the device is switched off. To activate an alarm, select Menu > Organizer > Alarm clock. Enter the time for the alarm in hh:mm format, and select OK. Select if 12-hour clock format is on. Alarm on appears briefly in the display, and appears in...
  • Page 46 date. Any dates that appear in bold font contain calendar notes such as a meeting or reminder. To open the calendar, scroll right or select Menu > Organizer > Calendar. To go to a date, select Options the calendar view and Go to date, enter the date, and select OK.

  • Page 47: Countdown Timer

    Press # for a decimal point if necessary. Press * to cycle through the add (+), subtract (-), multiply (*), and divide (/) characters. Pause briefly to select the displayed character. 3. Enter the second number in your calculation, press Options >...
  • Page 48 Appears in the standby mode when the countdown timer is set. When the time runs out, your phone sounds an alarm, displays a timer note, and flashes its lights. Select Menu > Organizer > Countdown timer > Change time to change the time and Stop timer to stop the timer before the alarm sounds.

  • Page 49: Voice Recorder

    If you press the end key and return to the standby mode, the clock continues to run in the background, Appears in the upper left corner of the screen. To return to the stopwatch screen, select Menu > Organizer > Stopwatch >...

  • Page 50: Downloads

    ■ Downloads The BREW application feature requires network support and may not be available, or appear differently on your phone depending on your network service provider. For further information, please contact your service provider. Mobile shop—to download applications to your mobile phone.

  • Page 51: Enhancements

    Check the model number of any charger before use with this device. This device is intended for use when supplied with power from Nokia AC-3 or AC-4 charger. Warning: Use only batteries, chargers and enhancements approved by Nokia for use with this particular model.
  • Page 52 • Check regularly that enhancements installed in a vehicle are mounted and are operating properly. • Installation of any complex car enhancements must be made by qualified personnel only. Power • Standard 860 mAh Li-Ion Battery (BL-5B) • Compact Charger (AC-3) •...

  • Page 53: Reference Information

    When the talk and standby times are noticeably shorter than normal, replace the battery. Use only Nokia approved batteries, and recharge your battery only with Nokia approved chargers designated for this device. The use of any other types may invalidate any approval or warranty, and may be dangerous.
  • Page 54 Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. If left unused, a fully charged battery will lose its charge over time.

  • Page 55: Nokia Battery Authentication

    ■ Nokia battery authentication Always use original Nokia batteries for your safety. To check that you are getting an original Nokia battery, purchase it from an authorized Nokia dealer, look for the...
  • Page 56 Nokia Original Enhancements logo on the packaging and inspect the hologram label using the following steps: 1. When looking at the hologram on the label, you should see the Nokia connecting hands symbol from one angle and the Nokia Original Enhancements logo when looking from another angle.
  • Page 57 Nokia battery, you should refrain from using it and take it to the nearest authorized Nokia service point or dealer for assistance. Your authorized Nokia service point or dealer will inspect the battery for authenticity.
  • Page 58 It may also invalidate any approval or warranty applying to the device. To find out more about original Nokia batteries, visit www.nokia.com/battery.

  • Page 59: Care And Maintenance

    Care and maintenance Your device is a product of superior design and craftsmanship and should be treated with care. The following suggestions will help you protect your warranty coverage. • Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits.
  • Page 60 • Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. • Do not paint the device. Paint can clog the moving parts and prevent proper operation. • Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the device and may violate regulations governing radio devices.

  • Page 61: Additional Safety Information

    Additional safety information ■ Small children Your device and its enhancements may contain small parts. Keep them out of the reach of small children. ■ Operating environment This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 2.2 centimeters (7/8 inches) away from the body.
  • Page 62 ■ Medical devices Operation of any radio transmitting equipment, including wireless phones, may interfere with the functionality of inadequately protected medical devices. Consult a physician or the manufacturer of the medical device to determine if they are adequately shielded from external RF energy or if you have any questions.
  • Page 63 If you suspect interference, switch off your device, and move the device away. Hearing aids Some digital wireless devices may interfere with some hearing aids. If interference occurs, consult your service provider. ■ Vehicles RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems, and air bag systems.
  • Page 64 air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result. Using your device while flying in aircraft is prohibited. Switch off your device before boarding an aircraft. The use of wireless teledevices in an aircraft may be dangerous to the operation of the aircraft, disrupt the wireless telephone network, and may be illegal.
  • Page 65 using liquefied petroleum gas (such as propane or butane) to determine if this device can be safely used in their vicinity. ■ Emergency calls Important: Wireless phones, including this device, operate using radio signals, wireless networks, landline networks, and user-programmed functions. Because of this, connections in all conditions cannot be guaranteed.
  • Page 66 SAR values. SAR values may vary depending on national reporting and testing requirements and the network band. Additional SAR information may be provided under product information at www.nokia.com. Your mobile device is also designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA) and Industry Canada.
  • Page 67 by searching the equipment authorization system using FCC ID: QMNRH-108. Hearing aid compatibility Your mobile device model complies with FCC rules governing hearing aid compatibility. These rules require an M3 microphone or higher value. The M-value shown on the device box, refers to lower radio frequency (RF) emissions.
  • Page 68 Feature Specification Wireless networks CDMA 2000 1x RTT Volume 73cc PCS Frequency range (Tx) 1851.25~1908.75 MHz PCS Frequency range (Rx) 1931.25~1988.75 MHz Cell Frequency range (Tx) 824.70~848.31 MHz Cell Frequency range (Rx) 869.70~893.31 MHz ■ Battery information This section provides information about battery charging times with the Compact Charger (AC-3), the travel charger (AC-4), and talk and standby times.
  • Page 69 Charging times The following charging times are approximate: Charger options AC-3 AC-4 BL-5B 860 mAh Li-Ion Up to 3.5 hours Up to 3 hours battery Talk and standby times Operation times are estimates only and depend on signal strength, phone use, network conditions, features used, battery age and condition (including charging habits), temperatures to which the battery is exposed, and many other factors.

  • Page 70: Index

    Index access codes 11 default settings 41 activate profile 34 dialed calls 33 alarm 43 enhancements 50 batteries and chargers 52 battery charging 14 game 43 charging times 68 talk times 68 image files 42 calculator 45 calendar 44 calls keyguard ending 20 lock and unlock 19...
  • Page 71 delete 32 picture messages 29 safety 60 voice messages 27 hearing aids 62 missed call 33 pacemaker 61 share memory 10 start screen 18 network 40 stopwatch 47 organize 43 talk and standby times 68 technical information 67 tone files 42 turn phone on and off 15 phone settings 36 picture message 29...
