Salamander Designs Webex Board Pro User Manual page 7

Electric lift wall stand
Table of Contents

Advertisement

Mount stand to wall

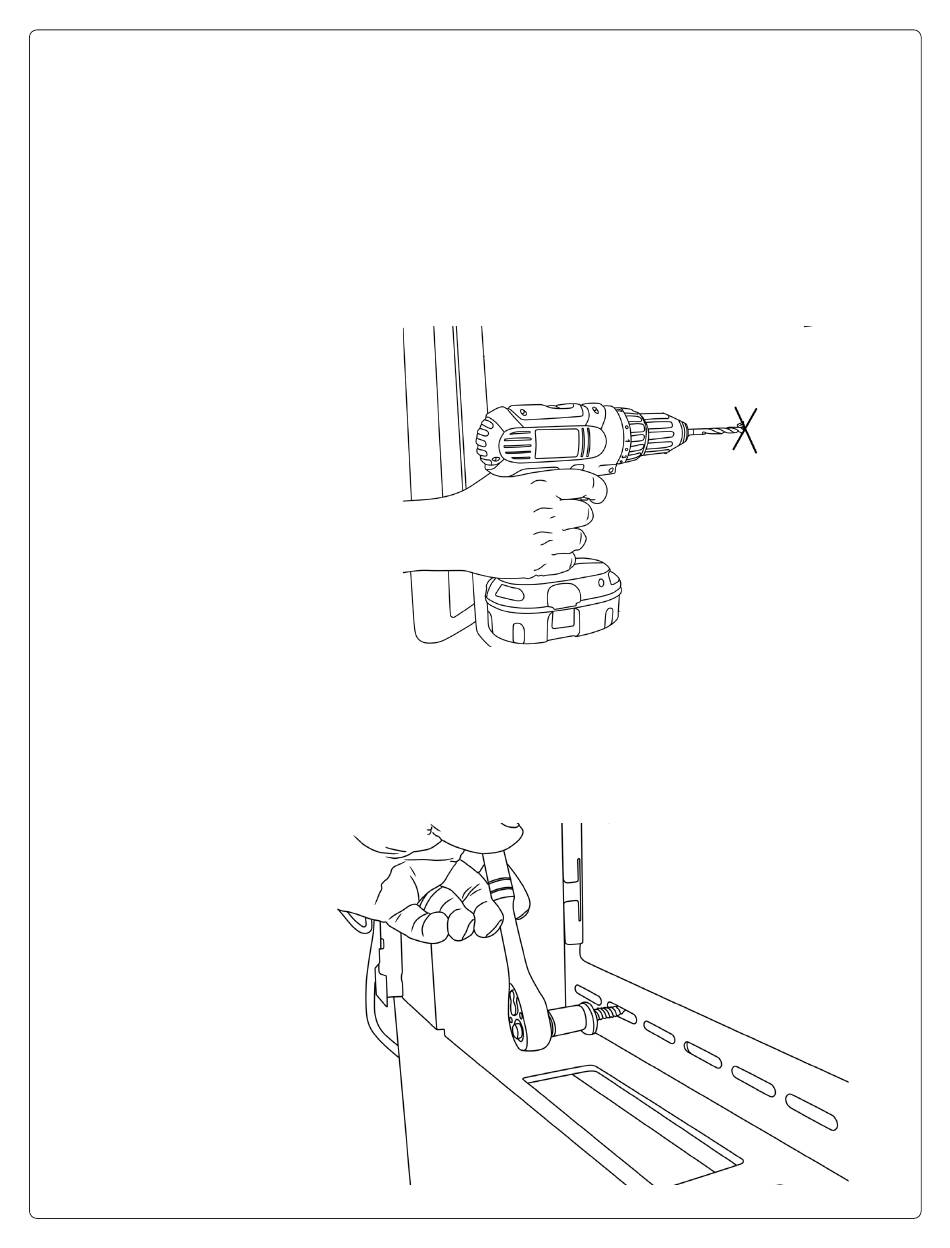

Drill Wall Hole:
Set stand aside and drill holes for 5/16" lag screws (S).
WOOD CONSTRUCTION: Use 3/16" (5mm) bit and drill holes 2.5" (64mm) deep.
MASONRY: Use 3/8" (10mm) bit and drill holes 2.5" (64mm) deep.
Reposition stand and secure unit to wall using the four lag screws (S) and washers
(L) supplied and a 1/2" (or 13mm) driver to tighten. For masonry, install lag
shields (T) prior to bolting in position.
Salamander Designs - Electric Lift Wall Display Stands 55"
www.salamandercommercial.com
501-673 [6.22]
page 7 of 24
