Taking readings for estimating Leaf Area Index is simpler with an external
beam fraction sensor (BFS) attached, such as the BF5 Sunshine Sensor.
Note 1: If no BFS is attached, SunScan initially takes you through an extra
step to measure the Beam Fraction. A typical sequence of readings is
shown in the diagram below.
Note2: The SunData software doesn't automatically detect if a BF5 is
connected, the user has to set this as stated in the diagram on p16.
See also: Measuring Leaf Area Without a Beam Fraction Sensor on
page 33.

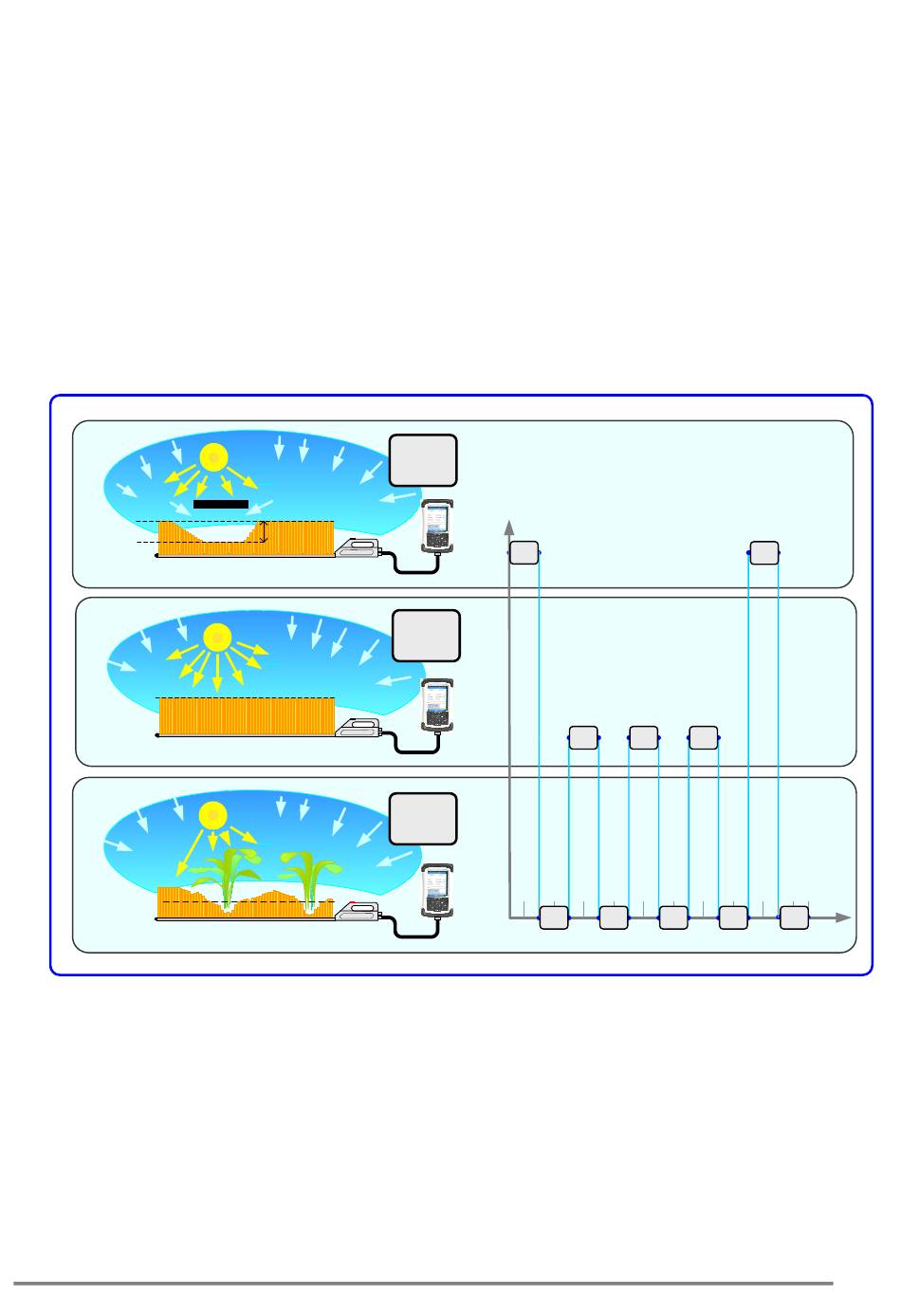

Diagram illustrating the measurement of Leaf Area Index
without a Beam Fraction Sensor
Total
Diffuse
Incident
Transmitted
18  Quick Start
Direct
Diffuse
Direct
Direct
Diffuse
Direct
Diffuse
Measure
Beam
Fraction
Measurement
type
Measure
Beam
Fraction
Incident
Read
Read
Typical sequence of
measurements for LAI
without a BFS
Incident Incident Incident
Read Read Read
