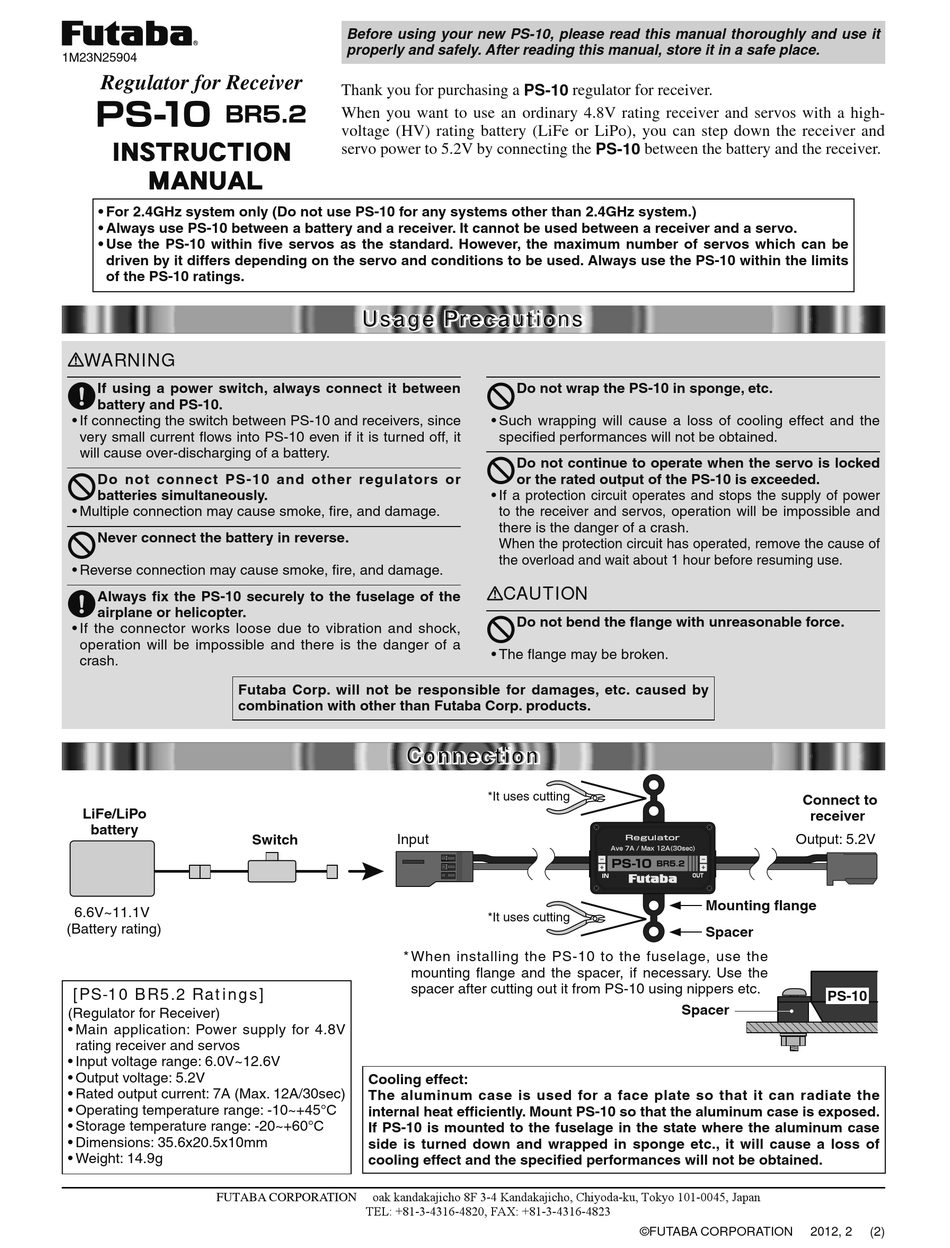

FUTABA PS-10 BR5.2 Instruction Manual

Regulator for Receiver
INSTRUCTION
MANUAL
driven by it differs depending on the servo and conditions to be used. Always use the PS-10 within the limits
of the PS-10 ratings.
WARNING
If using a power switch, always connect it between
battery and PS-10.
Do not connect PS-10 and other regulators or
batteries simultaneously.
Never connect the battery in reverse.
Always fix the PS-10 securely to the fuselage of the
airplane or helicopter.
battery
Switch
[ PS-1 0 B R5 .2 Rat i n g s ]
FUTABA CORPORATION
Before using your new PS-10, please read this manual thoroughly and use it
properly and safely. After reading this manual, store it in a safe place.

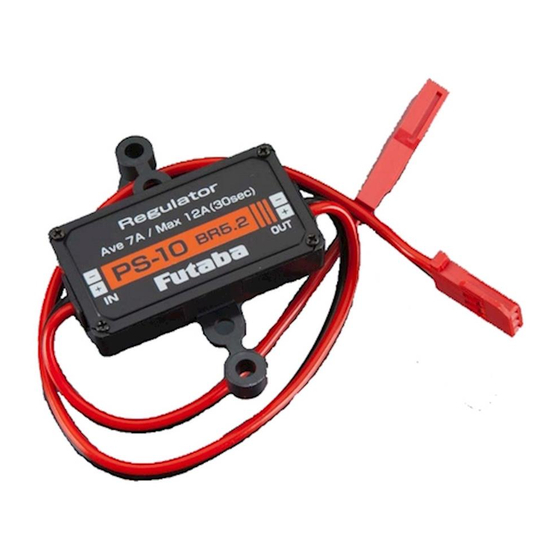

Thank you for purchasing a PS-10 regulator for receiver.
When you want to use an ordinary 4.8V rating receiver and servos with a high-
voltage (HV) rating battery (LiFe or LiPo), you can step down the receiver and
servo power to 5.2V by connecting the PS-10 between the battery and the receiver.
U s a g e Pr e c a u t i o n s
Do not wrap the PS-10 in sponge, etc.
Do not continue to operate when the servo is locked
or the rated output of the PS-10 is exceeded.
CAUTION
Do not bend the flange with unreasonable force.
Co n n e c t i o n
*It uses cutting
*It uses cutting

Cooling effect:

The aluminum case is used for a face plate so that it can radiate the
internal heat efficiently. Mount PS-10 so that the aluminum case is exposed.
If PS-10 is mounted to the fuselage in the state where the aluminum case
side is turned down and wrapped in sponge etc., it will cause a loss of
cooling effect and the specified performances will not be obtained.
oak kandakajicho 8F 3-4 Kandakajicho, Chiyoda-ku, Tokyo 101-0045, Japan
TEL: +81-3-4316-4820, FAX: +81-3-4316-4823
Connect to
receiver
Mounting flange

Spacer

Spacer
©FUTABA CORPORATION 2012, 2
PS-10
(2)
