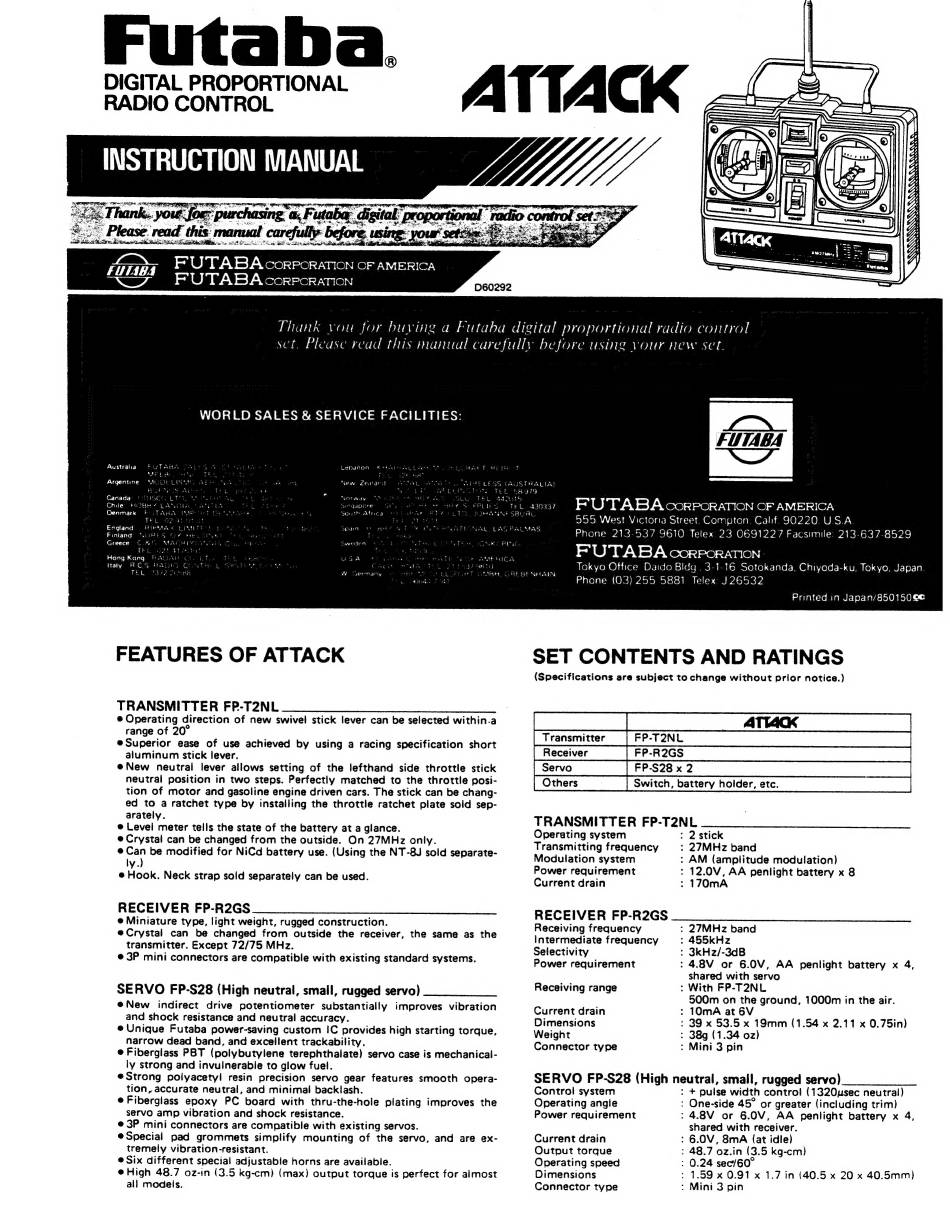

FUTABA ATTACK Instruction Manual

Futaba.
DIGITAL PROPORTIONAL
RADIO CONTROL
INSTRUCTION MANUAL
Sw ME OS! Soy Si ia tS 2 eS we ai a
LN. PUTABAcoRPORATION CF AMERIC
FUTABAcoRPCRATION
ATTACK
WY
D60292
ai ad]
Thank vou for buying a Futaba digital proportional radio control
set. Please read this manual carefully before using vour new set.
WORLD SALES & SERVICE FACILITIES:
Lemagnan Kee At
{ccleaner
New Zegignd O AMIAR ARSS
Pia a We
Canada: (ot pa ENE OG pout ey Norway SASi
Chie HOBK Sites E eer cae Siegupore Sia
Denmark F; Tas :
Te
South Africa vor bbe CRT
Engtand
Finland) NUF
Hong Kang E
Itay. RCS
FES ty
FEATURES OF ATTACK
TRANSMITTER FP-T2NL
e Operating direction of new swivel stick lever can be selected within.a
range of 20°
ə Superior ease of use achieved by using a racing specification short
aluminum stick lever.
e New neutral lever allows setting of the lefthand side throttle stick
neutral position in two steps. Perfectly matched to the throttle posi-
tion of motor and gasoline engine driven cars. The stick can be chang-
ed to a ratchet type by installing the throttle ratchet plate sold sep-
arately.
è Level meter tells the state of the battery at a glance.
e Crystal can be changed from the outside. On 27MHz only.
e Can be modified for NiCd battery use. (Using the NT-8J sold separate-
ly.)
èe Hook. Neck strap sold separately can be used.
RECEIVER FP-R2GS
è Miniature type, light weight, rugged construction.
e Crystal can be changed from outside the receiver, the same as the
transmitter. Except 72/75 MHz.
e 3P mini connectors are compatible with existing standard systems.
SERVO FP-S28 (High neutral, small, rugged servo)
@New indirect drive potentiometer substantially improves vibration
and shock resistance and neutral accuracy.
e Unique Futaba power-saving custom IC provides high starting torque,
narrow dead band, and excellent trackability.
e Fiberglass PBT (polybutylene terephthalate) servo case is mechanical-
ly strong and invulnerable to glow fuel.
@Strong polyacety! resin precision servo gear features smooth opera-
tion, accurate neutral, and minimal backlash.
è Fiberglass epoxy PC board with thru-the-hole plating improves the
servo amp vibration and shock resistance.
e 3P mini connectors are compatible with existing servos.
e Special pad grommets simplify mounting of the servo, and are ex-
tremely vibration-resistant.
e Six different special adjustable horns are available.
@ High 48.7 oz-in (3.5 kg-cm) (max) output torque is perfect for almost
all models.
LN
FUTABA
Rg
n e FUTABA CoRPORATION OF AMERICA
555 West Victoria Street. Compton. Calif. 90220 USA.
Phone 213-537-9610 Telex: 23 0691227 Facsimile: 213-637-8529
FUTABA CORPORATION.
Tokyo Office Daido Bidg , 3-1-16 Sotokanda, Chiyoda-ku, Tokyo, Japan.
Phone (03) 255 5881 Telex: J26532
Printed in Japan/850150 6
SET CONTENTS AND RATINGS
(Specifications are subject to change without prior notice.)
es ēAK"""ġOS
FP-S28 x 2
Switch, battery holder, etc.
TRANSMITTER FP-T2N
Operating system : 2 stick
Transmitting frequency : 27MHz band
Modulation system : AM (amplitude modulation)
Power requirement : 12.0V, AA penlight battery x 8
Current drain : 170mA
RECEIVER FP-R2GS
Receiving frequency : 27MHz band
Intermediate frequency : 455kHz
Selectivity : 3kH2/-3dB
Power requirement : 4.8V or 6.0V, AA penlight battery x 4,
shared with servo
Receiving range : With FP-T2NL
500m on the ground, 1000m in the air.
Current drain : 10mA at 6V
Dimensions : 39 x 53.5 x 19mm (1.54 x 2.11 x 0.75in)
Weight : 38g (1.34 oz)
Connector type : Mini 3 pin
SERVO FP-S28 (High neutral, small, rugged servo)
Control system : + pulse width control (132Q0usec neutral)
Operating angie : One-side 45° or greater (including trim)
Power requirement : 4.8V or 6.0V, AA penlight battery x 4,
shared with receiver.
: 6.0V, 8mA (at idle)
: 48.7 oz.in (3.5 kg-cm)
: 0.24 sec/60°
: 1.59 x 0.91 x 1.7 in (40.5 x 20 x 40.5mm)
: Mini 3 pin
Current drain
Output torque
Operating speed
Dimensions
Connector type
