Table of Contents

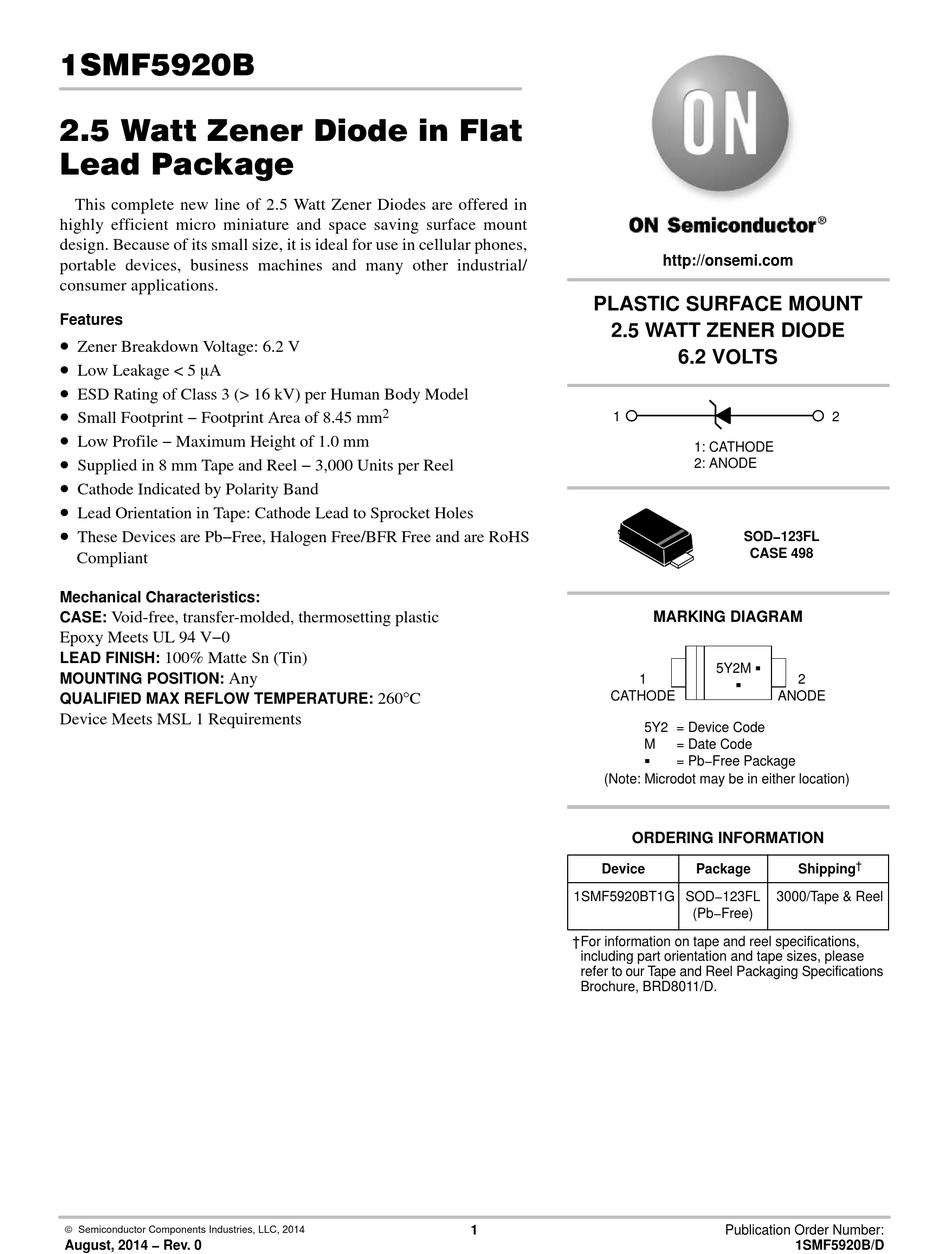

1SMF5920B
2.5 Watt Zener Diode in Flat
Lead Package
This complete new line of 2.5 Watt Zener Diodes are offered in
highly efficient micro miniature and space saving surface mount
design. Because of its small size, it is ideal for use in cellular phones,
portable devices, business machines and many other industrial/
consumer applications.
Features
•
Zener Breakdown Voltage: 6.2 V
•
Low Leakage < 5 mA
•
ESD Rating of Class 3 (> 16 kV) per Human Body Model
•
Small Footprint − Footprint Area of 8.45 mm
•
Low Profile − Maximum Height of 1.0 mm
•
Supplied in 8 mm Tape and Reel − 3,000 Units per Reel
•
Cathode Indicated by Polarity Band
•
Lead Orientation in Tape: Cathode Lead to Sprocket Holes
•
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Mechanical Characteristics:
CASE:
Void-free, transfer-molded, thermosetting plastic
Epoxy Meets UL 94 V−0
100% Matte Sn (Tin)
LEAD FINISH:
Any
MOUNTING POSITION:
QUALIFIED MAX REFLOW TEMPERATURE:
Device Meets MSL 1 Requirements
© Semiconductor Components Industries, LLC, 2014
August, 2014 − Rev. 0
2
260°C
1
http://onsemi.com
PLASTIC SURFACE MOUNT
2.5 WATT ZENER DIODE
6.2 VOLTS
1
1: CATHODE
2: ANODE
SOD−123FL
CASE 498
MARKING DIAGRAM
5Y2M G
1
G
CATHODE
5Y2 = Device Code
M
= Date Code
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device
Package
1SMF5920BT1G SOD−123FL
(Pb−Free)
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
Publication Order Number:
2
2
ANODE
†
Shipping
3000/Tape & Reel
1SMF5920B/D
