AR0132AT6B00XPEAH3-GEVB
AR0132AT Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 3 system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
•
Clock Input
Default – 27 MHz Crystal Oscillator
♦
Optional Demo 3 Controlled MClk
♦
•
Two-wire Serial Interface
Selectable Base Address
♦
•
Parallel Interface
•
HiSPi (High Speed Serial Pixel) Interface
•
ROHS Compliant

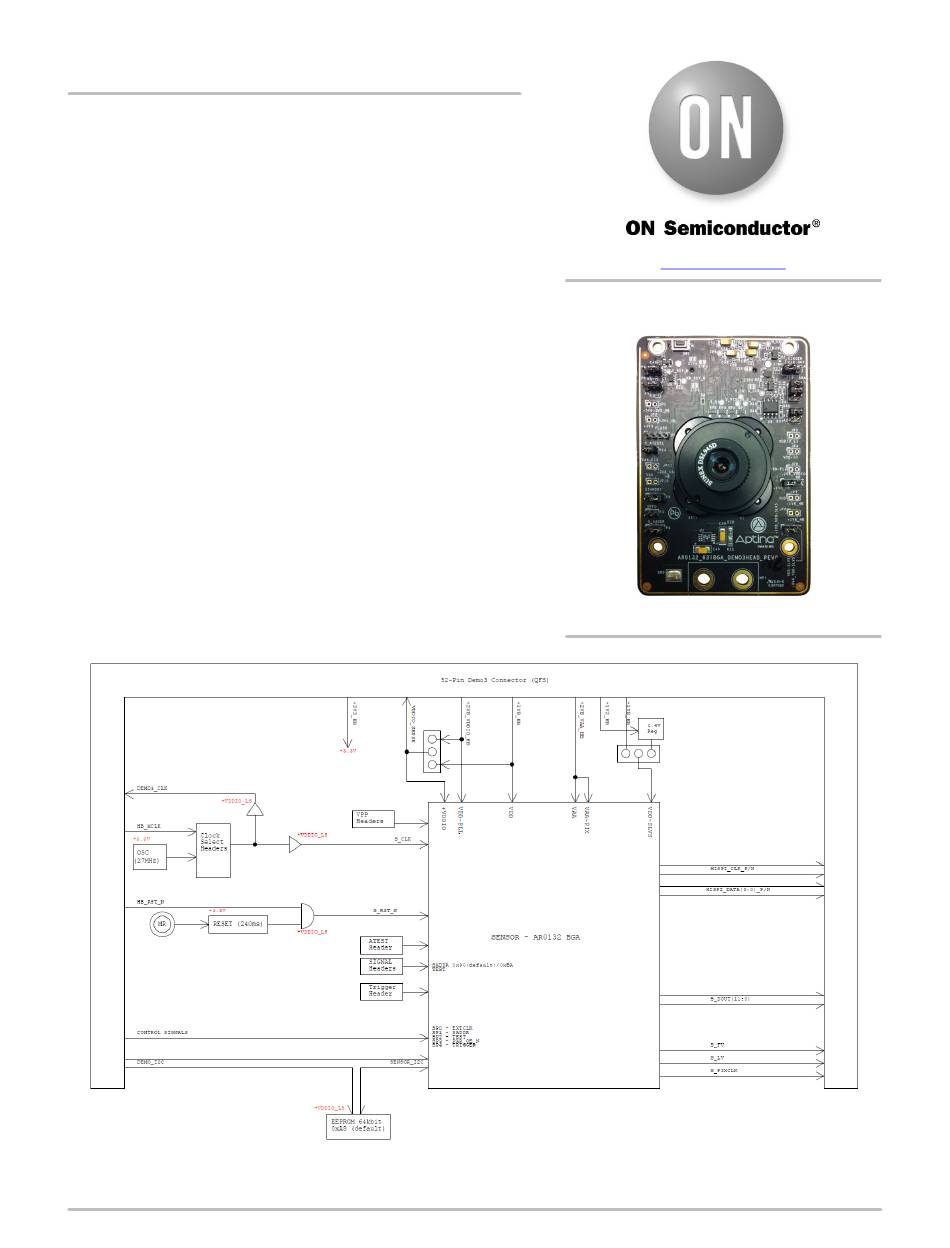

Block Diagram
© Semiconductor Components Industries, LLC, 2016
January, 2016 − Rev. 0
Figure 2. Block Diagram of AR0132AT6B00XPEAH3−GEVB
EVAL BOARD USER'S MANUAL
Figure 1. AR0132AT Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2346/D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ON Semiconductor AR0132AT
Summary of Contents for ON Semiconductor AR0132AT
- Page 1 EVAL BOARD USER’S MANUAL The evaluation boards are designed to demonstrate the features of image sensors products from ON Semiconductor. This headboard is intended to plug directly into the Demo 3 system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
- Page 2 AR0132AT6B00XPEAH3−GEVB Top View RESET Switch SW1 CLK Sel P19 Parallel O/P P6 TEST P5 C Bypass P24 EEPROM ADDR Sel P27 FLASH P7 ATEST P14 I/O Voltage Sel P16 STANDBY P8 C ADDR Sel P4 HiSPi Mode Sel P18 Figure 3. Top View of the Board − Default Jumpers Bottom View Baseboard Connector J1 Figure 4.
- Page 3 AR0132AT6B00XPEAH3−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
- Page 4 When Pushed, 240 ms Reset Signal will be Sent to AR0132 Interfacing to ON Semiconductor Demo 3 Baseboard The ON Semiconductor Demo 3 baseboard has a similar The four mounting holes secure the baseboard and the 52-pin connector which mates with J1 of the headboard.
- Page 5 onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
