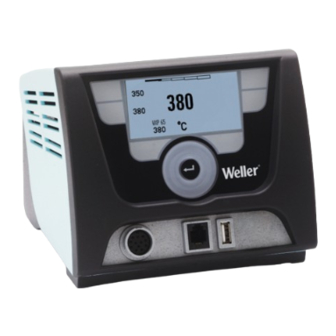

Weller WX 1 Original Instructions Manual

Hide thumbs Also See for WX 1:

Advertisement

Quick Links

Download this manual
WX 1
WX2
WXD 2
WXA 2
GB
Translation of the original instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the WX 1 and is the answer not in the manual?

Questions and answers

azan saeed
February 28, 2025

swaping in iphone boards

User image 67c1cfd9c5281
0

Related Manuals for Weller WX 1

Summary of Contents for Weller WX 1

  • Page 1 WX 1 WXD 2 WXA 2 Translation of the original instructions...
  • Page 2 WX1 WX2 WXD 2 WXA 2 WXD2 > 50 mm...
  • Page 3 230 V / 110-120V...
  • Page 4 RS232 WXA 2 / WXD 2 400-600 kPA 230 V / 110-120V RS232...
  • Page 5 °C °F...
  • Page 6 WXA 2 – 10 - 100% 100% ≈ 20 l/min ( 6 bar ) Typical airflow 6 bar 5 bar 4 bar 3 bar 2 bar...
  • Page 11 EXIT...
  • Page 12 Standby Temperature Standby Time 100 - 450 °C 1 - 999 min 200 - 850 °F OFF time Sensitivity 1-999 min normal high WXHAP Max. hot air duration Offset -40 - 40 °C -72 - 72 °F 1-60 s WXHAP Button lock Perform.
  • Page 13 LCD background brightness Screen saver 10 - 100 % ON / OFF WXD 2 Robot output Vacuum pre-feed 100 - 450 °C 0 - 10 s 200 - 850 °F WXD 2 Vacuum run-on 0 - 10 s...
  • Page 14 If the device is faulty, active electrical conductors may be bare or the PE conductor may not be functional. For safety reasons, children and youths Repairs must always be referred to a Weller-trained • under the age of 16, as well as per- specialist.
  • Page 15 • Specified Conditions Of Use Replace and clean suction nozzles only when hot and • using the suitable tool Supply unit for WELLER WX soldering tools. Use the solde- Only replace hot air nozzles using the suitable tool • ring station / desoldering station / hot air station exclusively for the purpose indicated in the operating instructions of sol- Only clean or replace solder collection tubes when cold •...
  • Page 16 Check before starting soldering whether a main filter is • inserted. Read the operating instructions! Repairs must always be referred to a Weller-trained Before performing work of any kind on the unit, al- specialist. ways disconnect the power plug from the socket. ESD-compatible design and ESD-compatible workstation Use original replacement parts only.
  • Page 17 ENGLISH Technical Data soldering station soldering station desoldering station Hot air station WX 1 WX 2 WXD 2 WXA 2 Dimensions L x W x H 170 x 151 x 130 mm 6,69 x 5,94 x 5,12 inch Weight ca. 3,2 kg ca.
  • Page 18 WXHAP 200 Operating Instructions...
  • Page 19 WXHAP 200 WXHAP 200 Device overview Connector with cable Hot air hose connection Push button Stand Nozzle adaptor Nozzle Always place the soldering tool in the safety rest while not in use.

  • Page 20: Table Of Contents

    7 Disposal ................... 7 About these instructions Thank you for placing your trust in our company by purchasing the Weller WXHAP 200 Hot Air Tool. This product meets or exceeds the requirements established by Weller for superior performance, versatility and quality.
  • Page 21  When using inert gases, make sure the area is well ventilated.  Read and observe the operating instructions of your control unit.  Read and follow the operating instructions for the Weller WXA 2, WXR 3 supply unit. Intended use...

  • Page 22: Scope Of Supply (Operating Instructions)

    R06 Ø 3,0 mm Nozzle adaptor M6 4 Device description The Weller WXHAP 200 Hot Air Tool with integrated finger switch (3) is suitable for soldering and desoldering surface-mounted components. A wide range of nozzles adds to the versatility of the WXHAP 200 tool.

  • Page 23: Commissioning The Device

    The max. thread depth for hot air nozzles is 5 mm (0.2 "). Use of longer threads will cause irreparable damage to the heater core. Use of Non-Weller nozzles may result in damage to the hot air tool and void the warranty.

  • Page 24: Accessories

    WXHAP 200 6 Accessories WXHAP 200 Hot Air Nozzles (see overview Hot Air Nozzles) 7 Disposal Dispose of replaced equipment parts, filters or old devices in accordance with the rules and regulations applicable in your country.
  • Page 25 WXHAP 200 Hot Air Nozzles Hot Air Nozzles for WXHAP 200 Model Type Dimensions A x B Order-No. inch Flat nozzle .059 x .315 1,5 x 8,0 T005 87 277 74 Flat nozzle .059 x .413 1,5 x 10,5 T005 87 277 73 Flat nozzle .059 x .472 1,5 x 12,0...
  • Page 26 WXHAP 200 – Exploded Drawing Learn more about soldering tools and components we have.
