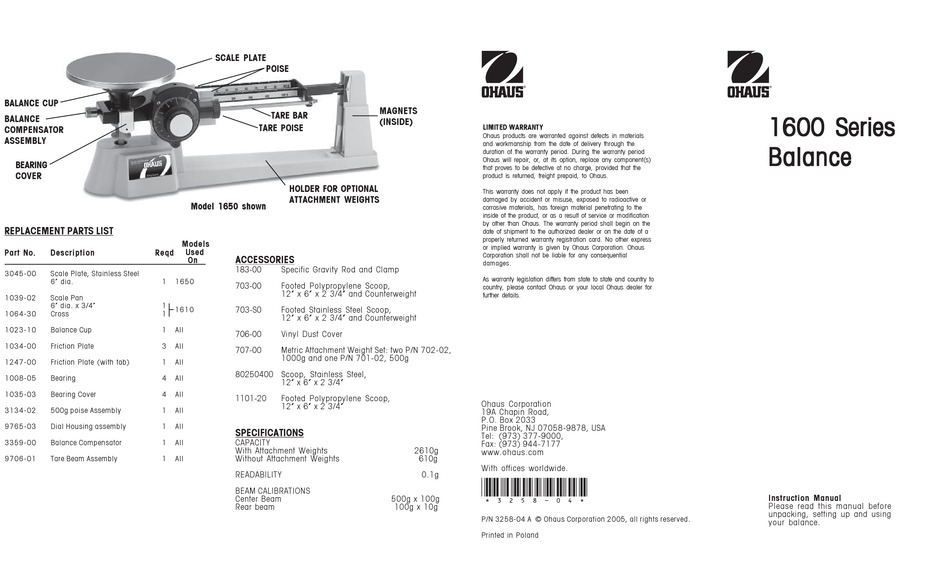

OHAUS 1610 Instruction Manual

BALANCE CUP
BALANCE
COMPENSATOR
ASSEMBLY
BEARING
COVER

REPLACEMENT PARTS LIST

Part No. Description Reqd
3045-00 Scale Plate, Stainless Steel
6" dia. 1 1650
1039-02 Scale Pan
6" dia. x 3/4" 1
1610
1064-30 Cross 1
1023-10 Balance Cup 1 All
1034-00 Friction Plate 3 All
1247-00 Friction Plate (with tab) 1 All
1008-05 Bearing 4 All
1035-03 Bearing Cover 4 All
3134-02 500g poise Assembly 1 All
9765-03 Dial Housing assembly 1 All
3359-00 Balance Compensator 1 All
9706-01 Tare Beam Assembly 1 All
SCALE PLATE
POISE
TARE BAR
TARE POISE
HOLDER FOR OPTIONAL
ATTACHMENT WEIGHTS
Model 1650 shown
Models
Used

ACCESSORIES

On
183-00 Specific Gravity Rod and Clamp
703-00 Footed Polypropylene Scoop,
12" x 6" x 2 3/4" and Counterweight
703-S0 Footed Stainless Steel Scoop,
12" x 6" x 2 3/4" and Counterweight
706-00 Vinyl Dust Cover
707-00 Metric Attachment Weight Set: two P/N 702-02,
1000g and one P/N 701-02, 500g
80250400 Scoop, Stainless Steel,
12" x 6" x 2 3/4"
1101-20 Footed Polypropylene Scoop,
12" x 6" x 2 3/4"

SPECIFICATIONS

CAPACITY
With Attachment Weights
Without Attachment Weights
READABILITY
BEAM CALIBRATIONS
Center Beam
Rear beam
MAGNETS
(INSIDE)

LIMITED WARRANTY

Ohaus products are warranted against defects in materials
and workmanship from the date of delivery through the
duration of the warranty period. During the warranty period
Ohaus will repair, or, at its option, replace any component(s)
that proves to be defective at no charge, provided that the
product is returned, freight prepaid, to Ohaus.
This warranty does not apply if the product has been
damaged by accident or misuse, exposed to radioactive or
corrosive materials, has foreign material penetrating to the
inside of the product, or as a result of service or modification
by other than Ohaus. The warranty period shall begin on the
date of shipment to the authorized dealer or on the date of a
properly returned warranty registration card. No other express
or implied warranty is given by Ohaus Corporation. Ohaus
Corporation shall not be liable for any consequential
damages.
As warranty legislation differs from state to state and country to
country, please contact Ohaus or your local Ohaus dealer for
further details.
Ohaus Corporation
19A Chapin Road,
P.O. Box 2033
Pine Brook, NJ 07058-9878, USA
Tel: (973) 377-9000,
Fax: (973) 944-7177
2610g
www.ohaus.com
610g
With offices worldwide.
0.1g
*3258-04*
500g x 100g
100g x 10g
P/N 3258-04 A © Ohaus Corporation 2005, all rights reserved.
Printed in Poland
