OHAUS 1119-D0 Instruction Manual

HEAVY DUTY
SOLUTION BALANCE
Instruction Manual

INTRODUCTION

This manual contains installation, operation and maintenance instructions for the
Ohaus Heavy Duty Solution Balance, Model 1119D. To ensure proper operation of
the Balance, please read this manual completely.

DESCRIPTION

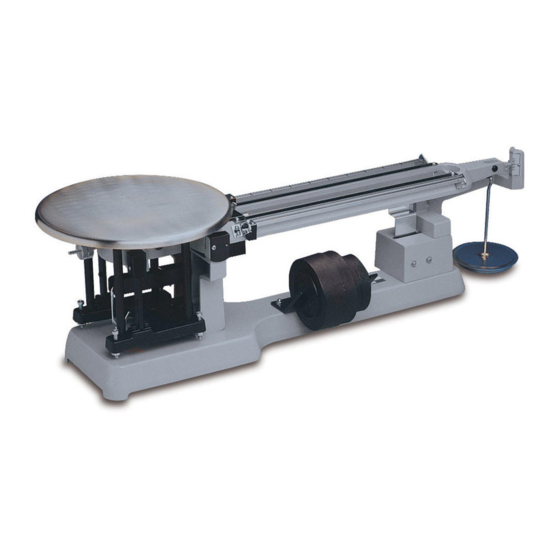

The Model 1119D Heavy Duty Solution Balance is a dual beam mechanical balance
with a maximum capacity of 20 kilograms and a readability of 1 gram. A dual-faced
Indicator Plate allows front and rear weighing. The base and beam are constructed
of cast aluminum and finished with a durable epoxy powder coating which is
resistant to commonly used acids. Many other components including the large
platform are made of stainless steel for corrosion resistance. A large lockable tare
allows for balancing of containers up to 2270 grams (5 Lbs). Fine balancing may be
accomplished using the small spring loaded tare poise. Magnetic damping speeds
up the weighing process. Readings up to 1100 grams may be taken directly off the
two beams and the slotted mass set provided extends the weighing capacity to 20
kilograms.

UNPACKING AND SET-UP

1. Place the opened carton with the Beam Pointer facing toward the right.
2. Remove the corrugated liners from the front and rear of the carton. Remove
the Scale Plate from the rear liner and set it aside. Remove the corrugated
box, that contains the Slotted Masses, from the left end of the carton and set it
aside.
3. Grasp the Balance at both ends and lift it from the carton.
4. Remove the corrugated liner (that protects the Base) and the wooden wedge
from under the Scale Plate support.
5. Place the Balance on a bench or other level surface.
6. Remove the wire from the Mass Hanger Assembly, the Poises, and the left end
of the Beam. Remove the wooden beam end block.
