Summary of Contents for Asus PRIE H610M-K
- Page 1 PRIME H610M-K...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
System memory ..................1-11 Chapter 2: BIOS Information Knowing BIOS ....................2-1 BIOS Setup program ..................2-2 ASUS EZ Flash 3 ................... 2-3 ASUS CrashFree BIOS 3 ................2-4 Appendix Notices ........................A-1 Warranty ........................A-5 ASUS contact information ..................A-7... -
Page 4: Safety Information
Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device. -
Page 5: About This Guide
Refer to the following sources for additional information and for product and software updates. ASUS website The ASUS website (www.asus.com) provides updated information on ASUS hardware and software products. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. -
Page 6: Package Contents
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max ® ® Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. ® Chipset Intel H610 Chipset ®... - Page 7 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard Special Features - Overvoltage Protection...
- Page 8 Form Factor 9.2 inch x 8.0 inch (23.4 cm x 20.3 cm) • Specifications are subject to change without notice. Please refer to the ASUS website for the latest specifications. • For more information on downloading and installing drivers and utilities for your...
-
Page 9: Chapter 1: Product Introduction
Chapter 1: Product Introduction Product Introduction Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity. -

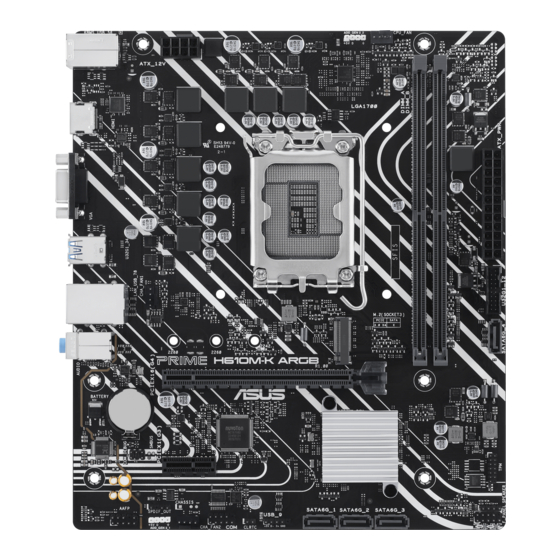

Page 10: Motherboard Layout
Motherboard layout 20.3cm(8.0in) CPU_FAN KBMS_USB_56 ATX_12V DIGI+ HDMI LGA1700 U32G1_34 LAN_USB_78 M.2(SOCKET3) PCIE SATA 3.0 X4 AUDIO 2280 2260 2242 PCIEX16(G4) Ethernet Super Intel ® Audio COM_DEBUG H610 Codec PCIEX1(G3) 128Mb BIOS SPEAKER USB_914 SATA6G_1 SATA6G_2 SATA6G_3 AAFP F_PANEL CLRTC Unplug the power cord before installing or removing the motherboard. - Page 11 3. Expansion slots This motherboard supports one PCIe x16 graphics card and one PCIe x1 network card, SCSI card or other cards that comply with the PCI Express specification. 4. Fan headers FAN PWM The Fan headers allow you to connect fans to cool the system. FAN IN FAN PWR 5.
- Page 12 10. RGB header The RGB header allows you to connect RGB LED strips. The RGB header supports 5050 RGB multi-color LED strips (12V/G/R/B), with a maximum power rating of 3A (12V), and no longer than 3m. Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply.
- Page 13 13. Front Panel Audio header AAFP The Front Panel Audio header is for a chassis-mounted front panel audio I/O module that supports HD Audio. Connect one end of the front panel audio I/O module cable to this header. We recommend that you connect a high-definition front panel audio module to this header to avail of the motherboard’s high-definition audio capability.
- Page 14 • Power Button/Soft-off Button header (PWR_BTN) The 2-pin header allows you to connect the system power button. Press the power button to power up the system, or put the system into sleep or soft-off mode (depending on the operating system settings). •...
- Page 15 1.2.2 Rear panel connectors PS/2 Keyboard/Mouse combo port. This port is for a PS/2 keyboard or mouse. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other VGA-compatible devices. 1Gb Ethernet port. This port allows Gigabit connection to a Local Area Network (LAN) through a network hub.
- Page 16 Microphone port (pink). This port connects a microphone. Refer to the audio configuration table below for the function of the audio ports in 2, 4, 5.1, or 7.1-channel configuration. Audio 2, 4, 5.1 or 7.1-channel configuration Port 2-channel 4-channel 5.1-channel 7.1-channel Light Blue Rear Speaker...
-
Page 17: Central Processing Unit (Cpu)
CPU designed for LGA1155, LGA1156, LGA1151, and LGA1200 sockets on the LGA1700 socket. • ASUS will not cover damages resulting from incorrect CPU installation/removal, incorrect CPU orientation/placement, or other damages resulting from negligence by the user. Installing the CPU... - Page 18 1-10 Chapter 1: Product Introduction...
-
Page 19: System Memory
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Recommended memory configurations DIMM_A... - Page 20 Installing a DIMM To remove a DIMM 1-12 Chapter 1: Product Introduction...
-
Page 21: Chapter 2: Bios Information
BIOS Information Knowing BIOS The new ASUS UEFI BIOS is a Unified Extensible Interface that complies with UEFI architecture, offering a user-friendly interface that goes beyond the traditional keyboard- only BIOS controls to enable a more flexible and convenient mouse input. You can easily navigate the new UEFI BIOS with the same smoothness as your operating system. -
Page 22: Bios Setup Program
BIOS Setup program Use the BIOS Setup to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief onscreen help to guide you in using the BIOS Setup program. Entering BIOS at startup To enter BIOS Setup at startup, press <Delete> or <F2> during the Power-On Self Test (POST). -
Page 23: Asus Ez Flash 3
ASUS EZ Flash 3 The ASUS EZ Flash 3 feature allows you to update the BIOS without using an OS-based utility. Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey <F5>. -
Page 24: Asus Crashfree Bios 3
ASUS CrashFree BIOS 3 The ASUS CrashFree BIOS 3 utility is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using a USB flash drive that contains the BIOS file. -
Page 25: Appendix
Appendix Notices FCC Compliance Information Responsible Party: Asus Computer International Address: 48720 Kato Rd., Fremont, CA 94538, USA Phone / Fax No: (510)739-3777 / (510)608-4555 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 26 France sorting and recycling information À DÉPOSER À DÉPOSER Cet appareil EN MAGASIN EN DÉCHÈTERIE et ses accessoires se recyclent Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil ! Compliance Statement of Innovation, Science and Economic Development Canada (ISED) This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s).
- Page 27 ASUS products sold in Vietnam, on or after September 23, 2011,meet the requirements of the Vietnam Circular 30/2011/TT-BCT. Các sản phẩm ASUS bán tại Việt Nam, vào ngày 23 tháng 9 năm2011 trở về sau, đều phải đáp ứng các yêu cầu của Thông tư 30/2011/TT-BCT của Việt Nam.
- Page 28 Français AsusTek Computer Inc. déclare par la présente que cet appareil est conforme aux critères essentiels et autres clauses pertinentes des directives concernées. La déclaration de conformité de l’UE peut être téléchargée à partir du site Internet suivant : www.asus.com/support.
-
Page 29: Warranty
• ASUS offers a voluntary manufacturer’s Commercial Guarantee. • ASUS dragovoljno nudi komercijalno proizvođačko jamstvo. • ASUS reserves the right to interpret the provisions of the ASUS • ASUS zadržava prava na tumačenje odredbi ASUS komercijalnog Commercial Guarantee. jamstva. •... - Page 30 • ASUS tilbyr som produsent en frivillig kommersiell garanti. • Bảo hành thương mại này của ASUS được cung cấp độc lập và ngoài • ASUS forbeholder seg retten til å tolke bestemmelsene i ASUS sin Bảo đảm pháp lý theo luật định và không có cách nào ảnh hưởng đến kommersielle garanti.
-
Page 31: Asus Contact Information
Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112 ASUS COMPUTER INTERNATIONAL (America) Address: 48720 Kato Rd., Fremont, CA 94538, USA ASUS COMPUTER GmbH (Germany and Austria) Address: Harkortstrasse 21-23, 40880 Ratingen, Germany ASUSTeK (UK) LIMITED Address: 1st Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M 6BL,...
