TRENDnet TW100-BRF114 Install Manual

Requirements

• DSL or Cable modem for broadband Internet access.
• Network cables (standard 10/100BaseT network (UTP)
cables with RJ45 connectors).
• TCP/IP network protocol installed on each PC.

Setup

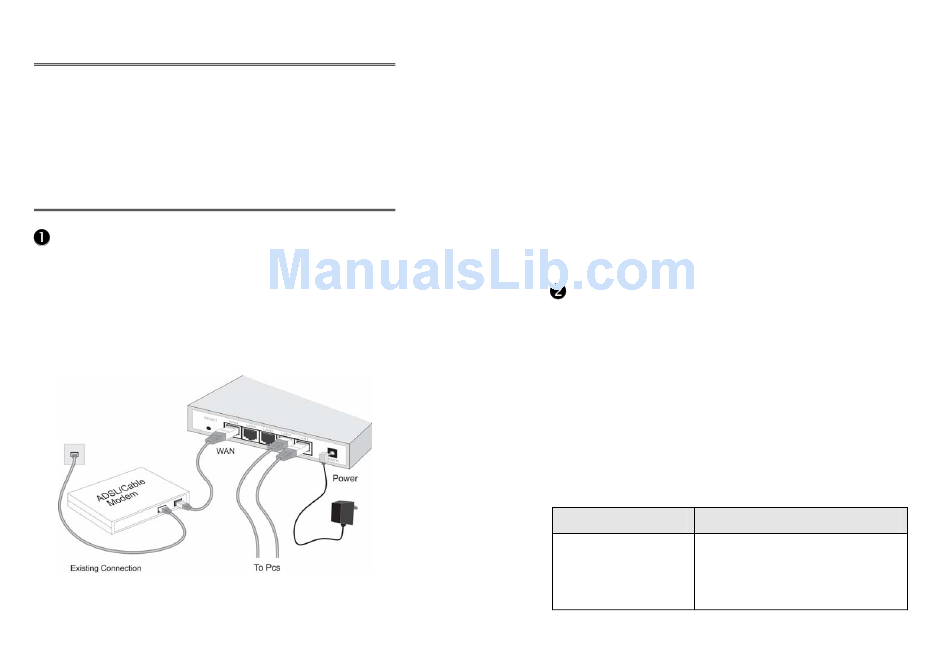

Physical Installation

TW100-BRF114 (Firewall Router)
1. Ensure the Firewall Router and the DSL/Cable modem are
powered OFF before commencing. Leave your
DSL/Cable modem connected to its wall socket (phone
line or cable input).
2. Use standard LAN cable to connect PCs to the
10/100Mbps Switching Hub ports on the Firewall Router.
Page 1
3. Connect your DSL/Cable Modem to the WAN port on
the Firewall Router. Use the cable supplied with your
DSL/Cable modem, or a standard network cable.
4. Connect the supplied Power Adapter and power on.
5. Check the LEDs
• The Power LED should be ON.
• The Status LED should flash, then turn Off. If it stays
on, there is a hardware error.
(Please contact your local dealer if the unit has hard-
ware error)
• The WAN LED should be ON.
• For each active LAN (PC) connection, the LAN
Link/Act LED should be ON.

Configuration

1. Start your PC. If it is already started, restart it.
It will then obtain an IP Address from the Firewall
Router's DHCP Server.
2. Start your WEB browser. In the Address box, enter the
following:
HTTP://192.168.0.1
3. Upon connection, the Setup Wizard will run automatically.
4. Step through the Wizard until finished. Refer to the data
from your ISP, and the table below, to ensure your
choices are correct.
Connection Type Data required.
Dynamic IP Address Usually, none.
But some ISPs may require a
Hostname, Domain Name, or
MAC (physical) address.
Page 2
