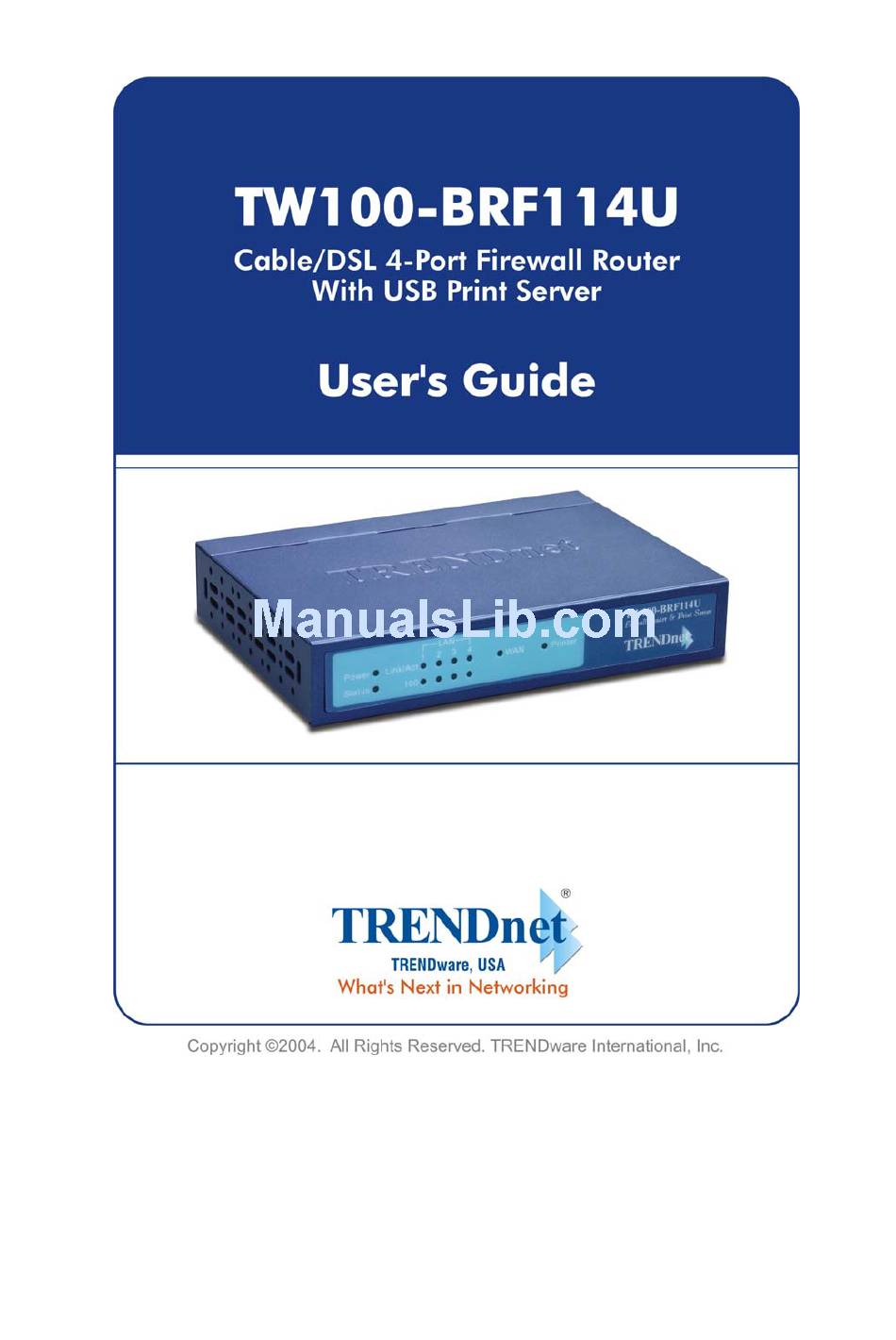

TRENDnet TW100-BRF114U User Manual

TRENDnet TW100-BRF114U User Manual

Cable/dsl 4-port firewall router with usb print server
Hide thumbs Also See for TW100-BRF114U:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TW100-BRF114U and is the answer not in the manual?

Questions and answers

Related Manuals for TRENDnet TW100-BRF114U

Summary of Contents for TRENDnet TW100-BRF114U

  • Page 3: Table Of Contents

    Table of Contents CHAPTER 1 INTRODUCTION ... 1 Broadband Router Features... 1 Package Contents ... 3 Physical Details... 4 CHAPTER 2 INSTALLATION... 6 Requirements... 6 Procedure ... 6 CHAPTER 3 SETUP ... 8 Overview ... 8 Configuration Program ... 9 Setup Wizard ...
  • Page 4 Overview ... 87 General Problems ... 87 Internet Access... 87 Printing... 88 APPENDIX B SPECIFICATIONS... 91 Multi-Function TW100-BRF114U... 91 Regulatory Approvals ... 92 P/N: 9560NF0037 Copyright © 2004. All Rights Reserved. Document Version: 1.6 (July, 2004) All trademarks and trade names are the properties of their respective owners.

  • Page 5: Chapter 1 Introduction

    Chapter 1 Introduction This Chapter provides an overview of the Broadband Router's features and capabilities. Congratulations on the purchase of your new Broadband Router. The TW100-BRF114U is a multi-function device providing the following services: • Shared Broadband Internet Access •...

  • Page 6: Advanced Internet Functions

    • DHCP Server Support. Dynamic Host Configuration Protocol provides a dynamic IP address to PCs and other devices upon request. The TW100-BRF114U can act as a DHCP Server for devices on your local LAN and WLAN. • Multi Segment LAN Support.

  • Page 7: Security Features

    LAN. And, if the Internet connection exists, it can also (optionally) be configured via the Internet. • Network Diagnostics. You can use the TW100-BRF114U to perform a Ping or DNS lookup. • UPnP Support. UPnP (Universal Plug and Play) allows automatic discovery and con- figuration of the Broadband Router.

  • Page 8: Physical Details

    Broadband Router User Guide Physical Details Front-mounted LEDs Power On - Power on. Off - No power. Status (Red) On - Error condition. Off - Normal operation. Blinking - This LED blinks during start up. For each port, there are 2 LEDs •...

  • Page 9: Rear Panel

    3. Keep holding the Reset Button for a few seconds, until the RED LED has flashed TWICE. 4. Release the Reset Button. The TW100-BRF114U is now using the factory default values. Connect the DSL or Cable Modem here. If your modem came with a...

  • Page 10: Chapter 2 Installation

    BRF114U. Both 10BaseT and 100BaseT connections can be used simultaneously. If required, connect any port to a normal port on another Hub, using a standard LAN cable. Any LAN port on the TW100-BRF114U will automatically function as an "Uplink" port when required.

  • Page 11: Check The Leds

    3. Connect WAN Cable Connect the DSL or Cable modem to the WAN port on the TW100-BRF114U. Use the cable supplied with your DSL/Cable modem. If no cable was supplied, use a standard ca- ble. 4. Connect Printer Cable Use a standard USB printer cable to connect your printer to the USB Printer port on the TW100-BRF114U.

  • Page 12: Chapter 3 Setup

    PCs on your local LAN may also require configuration. For details, see Chapter 4 - PC Con- figuration. Other configuration may also be required, depending on which features and functions of the TW100-BRF114U you wish to use. Use the table below to locate detailed instructions for the required functions. To Do this: Configure PCs on your LAN.

  • Page 13: Configuration Program

    Network Places (previously called Network Neighborhood). • Double - click the icon for the TW100-BRF114U (either on the Desktop, or in My Net- work Places) to start the configuration. Refer to the following section Setup Wizard for details of the initial configuration process.
  • Page 14 If you can't connect If the TW100-BRF114U does not respond, check the following: • The TW100-BRF114U is properly installed, LAN connection is OK, and it is powered ON. You can test the connection by using the "Ping" command: • Open the MS-DOS window or command prompt window.

  • Page 15: Setup Wizard

    Setup Wizard The first time you connect to the TW100-BRF114U, the Setup Wizard will run automatically. (The Setup Wizard will also run if the TW100-BRF114U's default setting are restored.) 1. Step through the Wizard until finished. • You need to know the type of Internet connection service used by your ISP. Check the data supplied by your ISP.

  • Page 16: Big Pond (Australia)

    Broadband Router User Guide PPTP, L2TP PPTP and L2TP are mainly used in Europe. You connect to the ISP only when required. The IP address is usually allocated automati- cally, but may be Static (Fixed). Other Modems (e.g. Broadband) Type Details Dynamic Your IP Address is allocated...

  • Page 17: Home Screen

    Home Screen After finishing the Setup Wizard, you will see the Home screen. When you connect in future, you will see this screen when you connect. An example screen is shown below. Navigation & Data Input • Use the menu bar on the left of the screen, and the "Back" button on your Browser, for navigation.

  • Page 18: Lan Screen

    Data - LAN Screen TCP/IP IP address for the TW100-BRF114U, as seen from the local LAN. Use IP Address the default value unless the address is already in use or your LAN is using a different IP address range. In the latter case, enter an unused IP Address from within the range used by your LAN.

  • Page 19: What Dhcp Does

    Server, rather than the TW100-BRF114U's, the following procedure is required. 1. Disable the DHCP Server feature in the Broadband Router. This setting is on the LAN screen. 2. Configure the DHCP Server to provide the TW100-BRF114U's IP Address as the Default Gateway. To Configure your PCs to use DHCP This is the default setting for TCP/IP under Windows 95/98/ME.

  • Page 20: Password Screen

    The password screen allows you to assign a password to the TW100-BRF114U. Figure 7: Password Screen Once you have assigned a password to the TW100-BRF114U (on the Password screen above) you will be prompted for the password when you connect, as shown below. (If no password has been set, this dialog will not appear.)

  • Page 21: Chapter 4 Pc Configuration

    BRF114U. The first step is to check the PC's TCP/IP settings. The TW100-BRF114U uses the TCP/IP network protocol for all functions, so it is essential that the TCP/IP protocol be installed and configured on each PC. TCP/IP Settings - Overview If using the default TW100-BRF114U settings, and the default Windows TCP/IP settings, no changes need to be made.

  • Page 22: Checking Tcp/Ip Settings - Windows 9X/Me

    Using DHCP To use DHCP, select the radio button Obtain an IP Address automatically. This is the default Windows setting. Using this is recommended. By default, the TW100-BRF114U will act as a DHCP Server. Restart your PC to ensure it obtains an IP Address from the TW100-BRF114U.
  • Page 23 • On the Gateway tab, enter the TW100-BRF114U's IP address in the New Gateway field and click Add, as shown below. Your LAN administrator can advise you of the IP Address they assigned to the TW100-BRF114U. Figure 11: Gateway Tab (Win 95/98) •...
  • Page 24 Broadband Router User Guide Checking TCP/IP Settings - Windows NT4.0 1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as shown below. Figure 13: Windows NT4.0 - TCP/IP 2. Click the Properties button to see a screen like the one below.

  • Page 25: Obtain An Ip Address From A Dhcp Server

    If your PC is already configured, check with your network administrator before making the following changes. 1. The Default Gateway must be set to the IP address of the TW100-BRF114U. To set this: • Click the Advanced button on the screen above.
  • Page 26 Broadband Router User Guide Figure 15 - Windows NT4.0 - Add Gateway 2. The DNS should be set to the address provided by your ISP, as follows: • Click the DNS tab. • On the DNS screen, shown below, click the Add button (under DNS Service Search Order), and enter the DNS provided by your ISP.
  • Page 27 PC Configuration Figure 16: Windows NT4.0 - DNS...

  • Page 28: Checking Tcp/Ip Settings - Windows 2000

    Broadband Router User Guide Checking TCP/IP Settings - Windows 2000: 1. Select Control Panel - Network and Dial-up Connection. 2. Right - click the Local Area Connection icon and select Properties. You should see a screen like the following: Figure 17: Network Configuration (Win 2000) 3.
  • Page 29 If your PC is already configured, check with your network administrator before making the following changes. • Enter the TW100-BRF114U 's IP address in the Default gateway field and click OK. (Your LAN administrator can advise you of the IP Address they assigned to the TW100- BRF114U.) •...

  • Page 30: Checking Tcp/Ip Settings - Windows Xp

    Broadband Router User Guide Checking TCP/IP Settings - Windows XP 1. Select Control Panel - Network Connection. 2. Right click the Local Area Connection and choose Properties. You should see a screen like the following: Figure 19: Network Configuration (Windows XP) 3.
  • Page 31 If your PC is already configured, check with your network administrator before making the following changes. • In the Default gateway field, enter the TW100-BRF114U 's IP address and click OK. Your LAN administrator can advise you of the IP Address they assigned to the TW100- BRF114U.

  • Page 32: For Windows 9X/Me/2000

    9. Click Finish to close the New Connection Wizard. Setup is now completed. Accessing AOL To access AOL (America On Line) through the TW100-BRF114U, the AOL for Windows software must be configured to use TCP/IP network access, rather than a dial-up connection. The configuration process is as follows: •...

  • Page 33: Printer Setup For Windows

    Printer Setup for Windows The TW100-BRF114U provides printing support for 2 methods for printing from Windows: • Print Port Driver. After installing the Print Port Driver, Windows users can print di- rectly to the TW100-BRF114U Print jobs are spooled (queued) on each PC.

  • Page 34: Port Options

    Print jobs can be managed like any Windows printer. Open the Printers folder (Start - Settings - Printers) and double-click any printer to see the current print jobs. • If the printer attached to the TW100-BRF114U is changed, just run this program again, and select the correct printer. •...
  • Page 35 The User Name will be printed on the banner page. Retry Interval Sets how often Windows will poll the TW100-BRF114U to estab- lish a connection when the printer is busy. Increase this value if you get too many warning messages.

  • Page 36: Lpd/Lpr Printing

    To use LPD printing, Microsoft TCP/IP Printing must be installed and enabled. This can be checked using Start-Settings-Control Panel-Network - Services. To install LPD printing using the TW100-BRF114U, follow this procedure: 1. Go to Start-Settings-Printer and invoke the Add Printer wizard.

  • Page 37: Adding The Printer

    PC Configuration Windows 2000/2003 Server Configuration The LPD/LPR Port is not enabled by default. To enable it, use this procedure: 1. In Control Panel, select Add/Remove Programs, then Windows Components. 2. Select Other Network File and Print Services, then click the Details button. Figure 23: Adding LPD/LPR Port (Win 2000) 3.

  • Page 38: Client Pc Setup For Lpd/Lpr Printing

    Figure 24: Windows 2000: Select Port 4. In the Dialog requesting Name or Address of server providing lpd, enter the IP address of the TW100-BRF114U. 5. For Name of printer or print queue on that server, enter L1 6. Click OK, and then Next, and continue the Wizard.
  • Page 39 Figure 25: Network Path - Windows 98/ME Figure 26: Network Path - Windows XP 4. Browse the network, and locate the Server and Printer (or Print Queue) which your Net- work Administrator advised you to use. 5. Click OK, then Next. 6.

  • Page 40: Macintosh Clients

    • Ensure your DNS settings are correct. Linux Clients To access the Internet via the TW100-BRF114U, it is only necessary to set the TW100- BRF114U as the "Gateway". Ensure you are logged in as "root" before attempting any changes. Fixed IP Address By default, most Unix installations use a fixed IP Address.

  • Page 41: Other Unix Systems

    • Ensure your DNS (Name Server) settings are correct. Printing Setup To use LPD printing to the TW100-BRF114U's printer, install an LPD printer using the standard procedure for your system. • Use the TW100-BRF114U's IP Address as the location of the remote host •...

  • Page 42: Chapter 5 Operation And Status

    This Chapter details the operation of the Broadband Router and use of the status screens. Operation Once both the TW100-BRF114U and the PCs are configured, operation is automatic. However, there are some situations where additional Internet configuration may be required: •...

  • Page 43: Data - Status Screen

    For additional information about the PCs on your LAN, and the IP addresses allocated to them, use the PC Database option on the Advanced menu. System This displays the current name of the TW100-BRF114U. Device Name Firmware Version The current version of the firmware installed in the TW100- BRF114U.

  • Page 44: Connection Status - Pppoe

    Broadband Router User Guide Connection Status - PPPoE If using PPPoE (PPP over Ethernet), a screen like the following example will be displayed when the "Connection Details" button is clicked. Figure 28: PPPoE Status Screen Data - PPPoE Screen Connection Physical Address The hardware address of this device, as seen by remote devices on the Internet.

  • Page 45: Connection Log Messages

    • The "Clear Log" button will restart the Log, while the Re- fresh button will update the messages shown on screen. Buttons Connect If not connected, establish a connection to your ISP. If connected to your ISP, hang up the connection. Disconnect Clear Log Delete all data currently in the Log.

  • Page 46: Connection Status - Pptp

    Broadband Router User Guide Connection Status - PPTP If using PPTP (Peer-to-Peer Tunneling Protocol), a screen like the following example will be displayed when the "Connection Details" button is clicked. Figure 29: PPTP Status Screen Data - PPTP Screen Connection Physical Address The hardware address of this device, as seen by remote devices on the Internet.

  • Page 47: Connection Status - Telstra Big Pond

    Disconnect If connected to your ISP, hang up the connection. Delete all data currently in the Log. This will make it easier to read Clear Log new messages. Update the data on screen. Refresh Connection Status - Telstra Big Pond An example screen is shown below.

  • Page 48: Connection Details - Singtel Ras

    Broadband Router User Guide nect buttons unless the setting "Connect automatically, as re- quired" is disabled. Connection Log • The Connection Log shows status messages relating to the Connection Log existing connection. • The Clear Log button will restart the Log, while the Refresh button will update the messages shown on screen.

  • Page 49: Connection Details - Fixed/Dynamic Ip Address

    IP Address from the ISP's DHCP Server. • If an IP Address has been allocated to the TW100-BRF114U (by the ISP's DHCP Server), this button will say "Release". Clicking the "Release" button will break the connection and release the IP Address.
  • Page 50 IP Address from the ISP's DHCP Server. • If an IP Address has been allocated to the TW100-BRF114U (by the ISP's DHCP Server), this button will say "Release". Clicking the "Release" button will break the connection and release the IP Address.

  • Page 51: Chapter 6 Advanced Features

    Chapter 6 Advanced Features This Chapter explains when and how to use the TW100-BRF114U 's "Ad- vanced" Features. Overview The following advanced features are provided. • Access Control • Dynamic DNS • Advanced Internet • Communication Applications • Special Applications •...

  • Page 52: Access Control Screen

    Broadband Router User Guide Access Control Screen To view this screen, select the Access Control link on the Advanced menu. Figure 33: Access Control Screen Data - Access Control Screen Group Select the desired Group. The screen will update to display the Group settings for the selected Group.
  • Page 53 Internet Access Select the desired options for the current group: Restrictions • None - Nothing is blocked. Use this to create the least restric- tive group. • Block all Internet access - All traffic via the WAN port is blocked. Use this to create the most restrictive group. •...

  • Page 54: Group Members Screen

    Broadband Router User Guide Group Members Screen This screen is displayed when the Members button on the Access Control screen is clicked. Figure 34: Group Members Use this screen to add or remove members (PCs) from the current group. • The "Del >>"...

  • Page 55: Default Schedule Screen

    Default Schedule Screen This screen is displayed when the Define Schedule button on the Access Control screen is clicked. • This schedule can be (optionally) applied to any Access Control Group. • Blocking will be performed during the scheduled time (between the "Start" and "Finish" times.) •...

  • Page 56: Services Screen

    Broadband Router User Guide Services Screen This screen is displayed when the Edit Service List button on the Access Control screen is clicked. Figure 36: Access Control - Services Data - Services Screen Available Services Available Services This lists all the available services. Use this to delete any Service you have added.

  • Page 57: Access Control Log

    Cancel Clear the " Add New Service " area, ready for entering data for a new Service. Access Control Log To check the operation of the Access Control feature, an Access Control Log is provided. Click the View Log button on the Access Control screen to view this log. This log shows attempted Internet accesses which have been blocked by the Access Control function.

  • Page 58: Dynamic Dns

    3. Enter your DDNS data on the Broadband Router's DDNS screen. 4. The TW100-BRF114U will then automatically ensure that your current IP Address is recorded at the DDNS server. If the DDNS Service provides software to perform this "IP address update"; you should disable the "Update"...
  • Page 59 • Details of your DDNS account (Name, password, Domain name) must then be entered and saved on this screen. • This device will then automatically ensure that your current IP Address is recorded by the DDNS Service Provider. (You do NOT need to use the "Client"...

  • Page 60: Advanced Internet Screen

    An example screen is shown below. Figure 38: Internet Screen Communication Applications Most applications are supported transparently by the TW100-BRF114U. But sometimes it is not clear which PC should receive an incoming connection. This problem could arise with the Communication Applications listed on this screen.

  • Page 61: Special Applications Screen

    If you use Internet applications which use non-standard connections or port numbers, you may find that they do not function correctly because they are blocked by the TW100-BRF114U's firewall. In this case, you can define the application as a "Special Application".

  • Page 62: Using A Special Application

    Broadband Router User Guide Data - Special Applications Screen Use this to Enable or Disable this Special Application as required. Checkbox Name Enter a descriptive name to identify this Special Application. • Type - Select the protocol (TCP or UDP) used when you receive data Incoming from the special application or service.

  • Page 63: Url Filter Screen

    The "DMZ PC" is effectively outside the Firewall, mak- ing it more vulnerable to attacks. For this reason, you should only enable the DMZ feature when required. URL Filter The URL Filter allows you to block access to undesirable Web site •...

  • Page 64: Virtual Servers

    Broadband Router User Guide Buttons Use these buttons to delete the selected entry or all entries, as required. Delete/Delete All Multiple entries can be selected by holding down the CTRL key while selecting.(On the Macintosh, hold the SHIFT key while selecting.) Use this to add the current Filter String to the site list.

  • Page 65: Virtual Servers Screen

    Virtual Servers Screen The Virtual Servers screen is reached by the Virtual Servers link on the Advanced screen. An example screen is shown below. Figure 42: Virtual Servers Screen This screen lists a number of pre-defined Servers, and allows you to define your own Servers. Details of the selected Server are shown in the "Properties"...

  • Page 66: Defining Your Own Virtual Servers

    Broadband Router User Guide External Port No. The port number used by Internet users when connecting to the Server. This is normally the same as the Internal Port Number. If it is different, this device will perform a "mapping" or "translation" function, allowing the server to use one port address, while clients use a different port address.

  • Page 67: Connecting To The Virtual Servers

    From the Internet, ALL Virtual Servers have the IP Address allocated by your ISP. Connecting to the Virtual Servers Once configured, anyone on the Internet can connect to your Virtual Servers. They must use the Internet IP Address (the IP Address allocated to you by your ISP). e.g.

  • Page 68: Wan Port Configuration

    Broadband Router User Guide WAN Port Configuration The WAN Port option is on the Advanced menu. Figure 43: WAN Port Screen Data – WAN Port Screen Identification Normally, there is no need to change the default name, but if your Hostname ISP requests that you use a particular Hostname, enter it here.
  • Page 69 Specified IP Also called Static IP Address. Select this if your ISP has allocated Address you a fixed IP Address. If this option is selected, the following data must be entered. • IP Address The IP Address allocated by the ISP. •...
  • Page 70 Inserts the MAC address from your PC into the MAC address field. Copy from PC You must click "Save" to actually change the address used. Save Save your changes to the TW100-BRF114U. Cancel Reverse any changes made since the last "Save".

  • Page 71: Chapter 7 Advanced Administration

    The available settings and features are: Config File Backup or restore the configuration file for the TW100-BRF114U. This file contains all the configuration data. Logs View or clear all logs, set E-Mailing of log files.

  • Page 72: Config File

    You can restore a previously-downloaded configuration file to the TW100-BRF114U, by uploading it to the TW100-BRF114U. This screen also allows you to set the TW100-BRF114U back to its factory default configura- tion. Any existing settings will be deleted. An example Config File screen is shown below.

  • Page 73: Logs

    Since only a limited amount of log data can be stored in the TW100-BRF114U, log data can also be E-mailed to your PC. Data - Logs Screen...
  • Page 74 Broadband Router User Guide Timezone Select the correct Timezone for your location. This is required for the date/time shown on the logs to be correct. E-Mail Reports If enabled, an E-mail will be sent immediately if a DoS (Denial of Send E-mail alert Service) attack is detected.

  • Page 75: Network Diagnostics

    Network Diagnostics This screen allows you to perform a "Ping" or a DNS lookup. These activities can be useful in solving network problems. An example Network Diagnostics screen is shown below. Figure 46: Network Diagnostics Screen Data - Network Diagnostics Screen Ping Ping this Enter the IP address you wish to ping.

  • Page 76: Options

    Broadband Router User Guide Options This screen allows advanced users to enter or change a number of settings. For normal opera- tion, there is no need to use this screen or change any settings. An example Options screen is shown below. Figure 47: Options Screen Data - Options Screen Backup DNS...
  • Page 77 • If checked, then UPnP users can disable Internet access via this Allow Internet device. access to be • If Disabled, UPnP users can NOT disable Internet access via this disabled device. But currently, this restriction only applies to users running Windows XP, who access the Properties via UPnP.

  • Page 78: Pc Database

    By default, non-Server versions of Windows act as "DHCP Clients"; this setting is called "Obtain an IP Address automatically". • The TW100-BRF114U uses the "Hardware Address" to identify each PC, not the name or IP address. The "Hardware Address" can only change if you change the PC's network card or adapter.

  • Page 79: Data - Pc Database Screen

    Data - PC Database Screen Known PCs This lists all current entries. Data displayed is name (IP Address) type. The "type" indicates whether the PC is connected to the LAN. If adding a new PC to the list, enter its name here. It is best if this Name matches the PC's "hostname".

  • Page 80: Pc Database (Admin)

    • Automatic - The PC is set to be a DHCP client (Windows: "Ob- tain an IP address automatically"). The TW100-BRF114U will allocate an IP address to this PC when requested to do so. The IP address could change, but normally won't.
  • Page 81 MAC Address Select the appropriate option • Automatic discovery - Select this to have the TW100-BRF114U contact the PC and find its MAC address. This is only possible if the PC is connected to the LAN and powered On. •...

  • Page 82: Remote Admin

    Broadband Router User Guide Remote Admin If enabled, this feature allows you to manage the TW100-BRF114U via the Internet. Figure 50: Remote Administration Screen Data - Remote Administration Screen Remote Administration Enable to allow management via the Internet. If Disabled, this device...

  • Page 83: Routing

    If you don't have other Routers or Gateways on your LAN, you can ignore the "Routing" page completely. • If the TW100-BRF114U is only acting as a Gateway for the local LAN segment, ignore the "Routing" page even if your LAN has other Routers. •...

  • Page 84: Data - Routing Screen

    Data - Routing Screen Enable RIP Check this to enable the RIP (Routing Information Protocol) feature of the Broadband Router. The TW100-BRF114U supports RIP 1 only. Static Routing Static Routing This list shows all entries in the Routing Table. Table Entries •...

  • Page 85: Configuring Other Routers On Your Lan

    It is essential that all IP packets for devices not on the local LAN be passed to the TW100- BRF114U, so that they can be forwarded to the external LAN, WAN, or Internet. To achieve this, the local LAN must be configured to use the TW100-BRF114U as the Default Route or Default Gateway.

  • Page 86: Other Routers On The Local Lan

    Broadband Router User Guide Other Routers on the Local LAN Other routers on the local LAN must use the TW100-BRF114U's Local Router as the Default Route. The entries will be the same as the TW100-BRF114U's local router, with the exception of the Gateway IP Address.
  • Page 87 Gateway IP Address For Router B's Default Route Destination IP Address Network Mask Gateway IP Address Advanced Administration 192.168.0.1 (Broadband Router's IP Address) 0.0.0.0 0.0.0.0 192.168.1.80 (Broadband Router's local router)

  • Page 88: Security

    Broadband Router User Guide Security This screen allows you to set Firewall and other security-related options. Figure 53: Security Screen Data - Security Screen Firewall If enabled, DoS (Denial of Service) attacks will be detected and Enable DoS blocked. The default is enabled. It is strongly recommended that this Firewall setting be left enabled.
  • Page 89 Respond to and by network monitoring and diagnostic programs. ICMP • If checked, the TW100-BRF114U will repond to ICMP packets received from the Internet. • If not checked, ICMP packets from the Internet will be ignored. Disabling this option provides a slight increase in security.

  • Page 90: Upgrade Firmware

    Broadband Router User Guide Upgrade Firmware The firmware (software) in the TW100-BRF114U can be upgraded using your Web Browser. You must first download the upgrade file, then select Upgrade on the Administration menu. You will see a screen like the following.

  • Page 91: Appendix A Troubleshooting

    This chapter covers some common problems that may be encountered while using the TW100- BRF114U and some possible solutions to them. If you follow the suggested steps and the TW100-BRF114U still does not function properly, contact your dealer for further advice. General Problems Problem 1: Can't connect to the TW100-BRF114U to configure it.

  • Page 92: Printing

    Broadband Router User Guide Solution 2: The TW100-BRF114U processes the data passing through it, so it is not transparent. Use the Special Applications feature to allow the use of Internet applications which do not function correctly. If this does solve the problem you can use the DMZ function. This should work with almost every application, but: •...
  • Page 93 4. The printer wizard will display a message stating that “The Network Printer is off-line”. This is OK. Continue the Add Printer Wizard until finished. 5. When finished, go to Control Panel-Printers. The printer icon will be grayed out indicating the printer is not ready. 6.
  • Page 94 Broadband Router User Guide 8. Click OK to see the Print Port Configuration screen, as shown below. 9. Click the Browse Device button, select the desired TW100-BRF114U, and click OK. 10. Click OK to return to the Printers folders, and right-click on the Printer.

  • Page 95: Appendix B Specifications

    Appendix B Specifications Multi-Function TW100-BRF114U Model Broadband Router TW100-BRF114U Dimensions 140mm(W) * 99mm(D) * 27mm(H) Operating Temperature 0° C to 40° C Storage Temperature -10° C to 70° C Network Protocol: TCP/IP Network Interface: 5 Ethernet: 4 * 10/100BaseT (RJ45) LAN connection...

  • Page 96: Regulatory Approvals

    Broadband Router User Guide Regulatory Approvals CE Standards This product complies with the 99/5/EEC directives, including the following safety and EMC standards: • EN301489-1/-17 • EN60950 CE Marking Warning This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

  • Page 97: Limited Warranty

    TW100-BRF114U – 5 Years Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDware shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.

  • Page 98: Technical Support

    You can find the most recent driver/firmware/software and user documentations on the TRENDware website. TRENDware provides FREE technical support for all customers for the duration of the warranty period on this product. TRENDware Technical Support E-mail: support@trendware.com Tel: +1-310-891-1100 Fax: +1-310-8911111 www.TRENDnet.com...
  • Page 99 Appendix B - Specifications...
