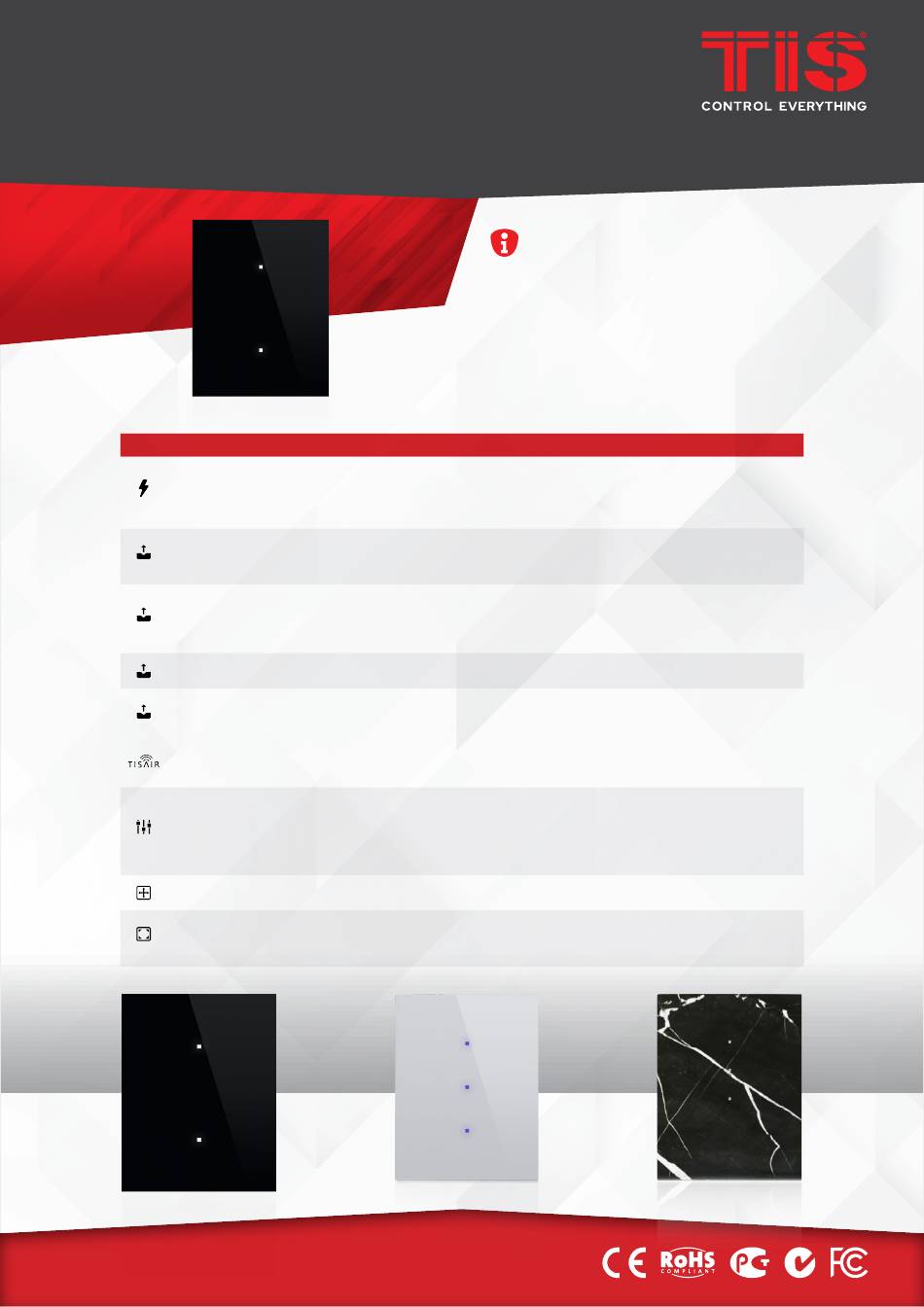

INSTALLATION MANUAL
TIS VENERA SERIES
2/3 Gang Touch Switch
Model: VEN-3S-3R-HC, VEN-2S-2R-HC
Power Supply
Output
Output switching current
Output service life
Output switching times
TIS AIR
Operation
Dimensions
Housing

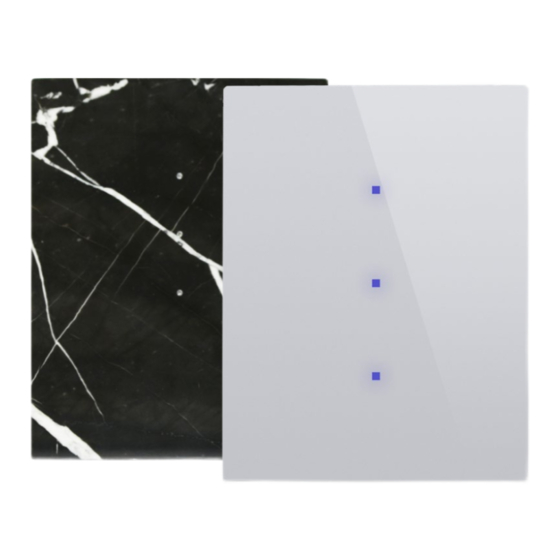

This product is a wall switch with touch buttons
designed for lights and scene control. It offers
customizable backlit color and covers for an easy
combination with interior schemes.
P R O D U C T S P E C I F I C AT I O N S
Input voltage
Output power
Protection
Current consumption
Number of channels
Nominal voltage
Nominal current per channel
Max switching current
Output service life
Output switching times
Mechanical endurance
Operating time
Releasing time
Max. operating frequency
WIFI signal
Protocol standard
touch buttons
Infrared receiver
Backlight
TIS AIR
Upgrading
Length × Width × Height
Materials
Internal parts color
IP rating
PRODUCT INFORMATION
110-230 VAC 50/60 Hz
3W / 12V
Internal protection fuse
10-30 mA / 12 V DC
2 / 3 (refer to model number)
110 / 230 V AC 50/60 Hz
8 A / 230 VAC
10A/230 VAC resistive
6A/230 VAC florescent
8A/230 VAC
277VAC / 30VDC
> 10,000,000 OPS
8mS (at nomi. Volt)
5 mS (at nomi. Volt)
25 cycle/min
2.4 GHz
802.11 b/g/n
4 touch Capacitive buttons for control ...
Control it by TIS remote control
RGB backlight indicators
TIS protocol messages and commands
By WIFI Connection
85mm × 42mm × 109mm
Fireproof PC/ Glass in front
Black or White
IP 50
