TIS MPH101A Quick Manual

Mobile Printing Hub TiS

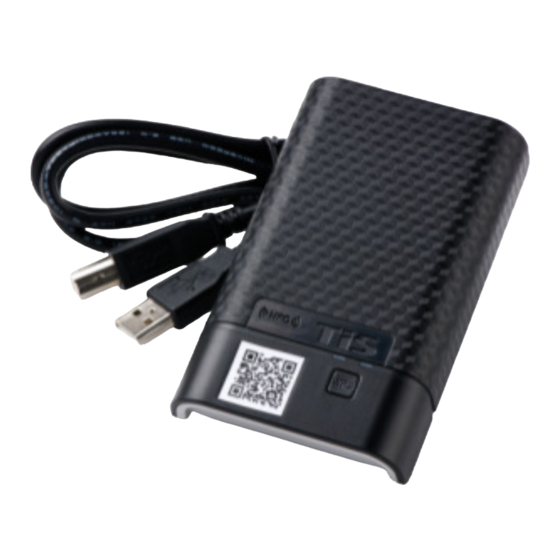

What's in the Box
Mobile Printing Hub (A)
USB Cable (B)。
(Connect between Mobile Print Hub with
Printer)
Mobile Printing Hub overview :
Micro USB port
USB port
(power input)
(connect to printer)
Before connect Mobile Printing Hub,
ensure printer power is on.
Step 1 (provide power to Mobile Printing
Hub)
Connect micro USB cable (user prepare) to
Mobile Printing Hub ( )
Connect other end of USB cable to USB
adaptor or power bank ( )
Step 2 (connect Mobile Printing Hub to printer)
Connect USB cable to Mobile Printing Hub ( )
Connect USB cable to Printer ( )
When both LEDs lit ( ), Mobile Printing Hub is
ready to use.
Model: MPH101A
Quick Guide
Note :
USB adaptor is not included in this
product. Please use your own micro
USB cable and USB adaptor or power
bank to supply power to Mobile
Printing Hub.
QR code
User prepare USB cable and
power adaptor
Video of setup and Android operation:
https://www.youtube.com/watch?v=Jw7UgQOCnK0
NFC tag
Status indictor
