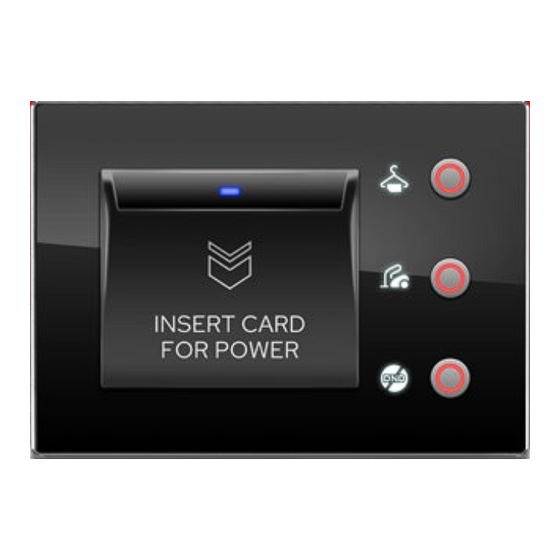

INSTALLATION MANUAL
TIS IO CARD SWITCH
Hotel Panel with Card Holder
MODEL: IO-CARD-3SRV
Input
Output
TIS
Bus``
Protection
Operation
Functions
Dimensions
Housing
BARCODE (UPC-A)
6
58921
80014
0

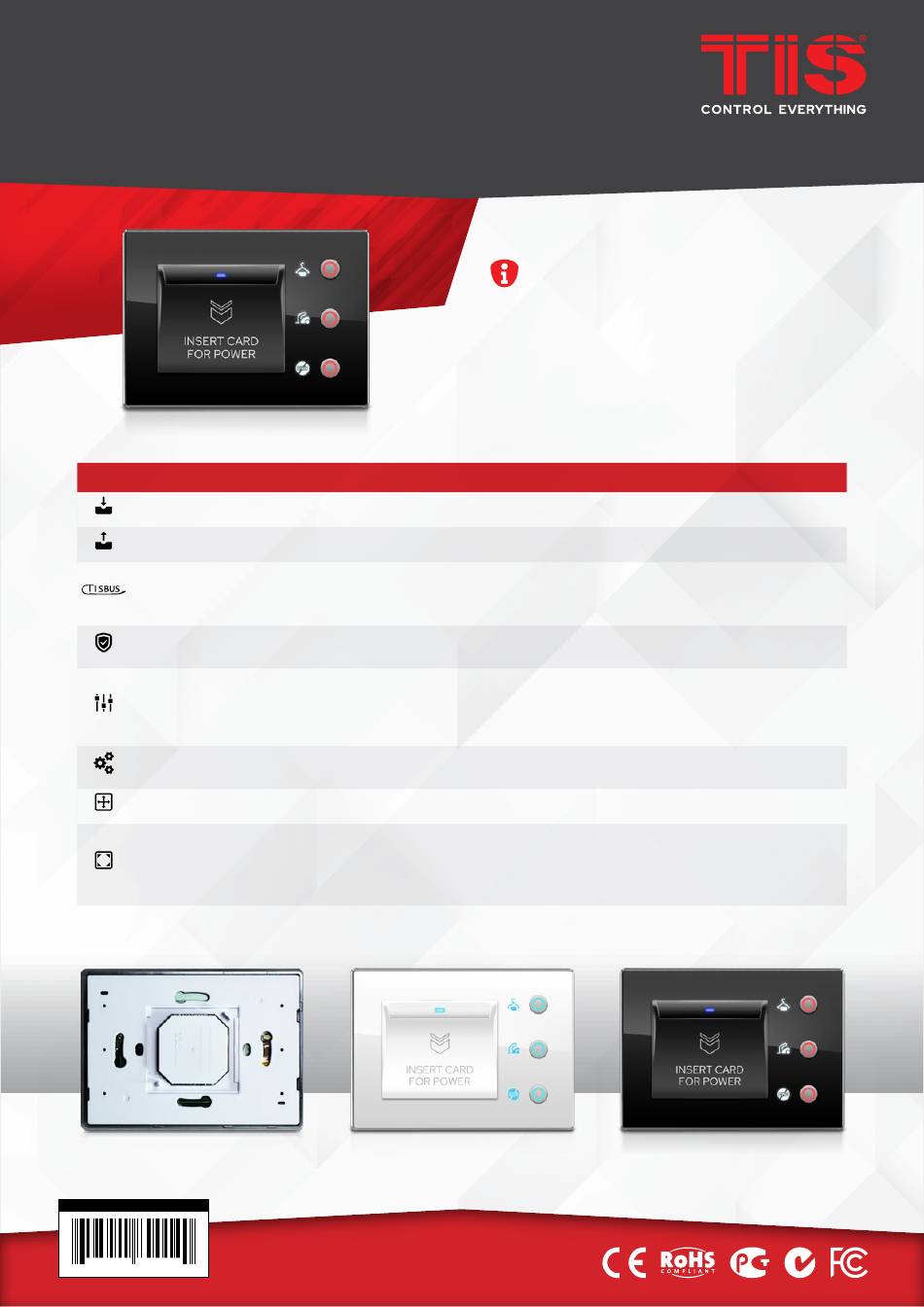

P R O D U C T S P E C I F I C AT I O N S
RF card reader
Relay
Number of devices on 1 line
Bus voltage
Current consumption
Push buttons
Card switch
TIS bus
Upgrading
CARD switch
3 Push buttons
Width × Length × Height
Materials
Casing color
Internal parts color
IP rating
PRODUCT INFORMATION
This product features a wall-mount panel with
RF readability and push buttons for room service
request designed for maximum conveniene and
efficiency in hospitality facilities.
Temic RF Type
1x relay 1A/220V
Max. 64
12-32 V DC
<25 mA / 24 V DC
Reverse polarity protection
ESD protection
×
3
push button with orange / white LEDs
RF card reader
TIS Protocol messages and commands
By Rs485 upgrading kit
To turn off lights if no occupancy or if card removed
For DND, MUR ad Laundry request
129mm × 94mm × 20mm(including card holder)
Fireproof PC / acrylic in front
Silver plating frame. Glass Black or White
Black & White
IP 50
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TIS IO-CARD-3SRV
Summary of Contents for TIS IO-CARD-3SRV
- Page 1 Push buttons push button with orange / white LEDs Card switch RF card reader Operation TIS bus TIS Protocol messages and commands Upgrading By Rs485 upgrading kit CARD switch To turn off lights if no occupancy or if card removed Functions...
-
Page 2: Safety Instructions
SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m... - Page 3 SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m...
- Page 4 TIS IO CARD SWITCH MODEL: IO-CARD-3SRV INSTALLATION STEPS Turn off the main electrical source before installation. WARNING! HIGH VOLTAGE Connect the Cat5e TIS BUS wire to the To the TIS BUS Network Cat5e Panel Addition. Connect the other connection if needed GND(white-orange)&(white-brown)
- Page 5 SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m...
- Page 6 SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m...
-
Page 7: Led Indicator
SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m... -
Page 8: Troubleshooting
INSTALLATION MANUAL TIS IO CARD SWITCH MODEL: IO-CARD-3SRV TROUBLESHOOTING The panel buttons’ LEDs do not Reason: The TIS 24V power supply is not turn ON, and the device is not connected to the TIS-BUS. powered. The wall panels fail to...
