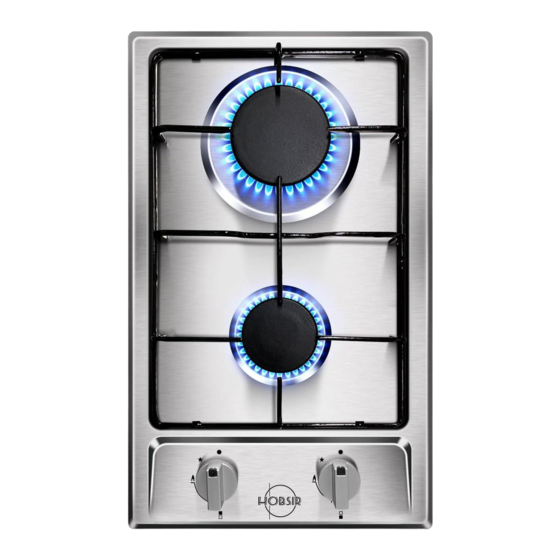

- Page 1 BUILT-IN GAS HOB INSTALLATION AND USER INSTRUCTIONS KNG-PF320SGB-1 KNG-PF320SX-1 KNG-PS640STGB-1 KNG-PF950STGB-2 Note: Do not use the hob until you have read the instruction manual...
- Page 2 Semi-rapid Rapid burner burner burner 1.75kW 1.75kW 3.0kw Auxiliary Semi-rapid Triple ring burner burner burner 1.0kW 1.75kw 3.3kW KNG-PS640STGB-1 KNG-PF320SGB-1 Triple ring burner 3.3kW Semi-rapid Rapid Rapid burner burner burner 1.75kW 3.0kw 3.0kw Semi-rapid Semi-rapid Auxiliary burner burner burner 1.75kW 1.75kw...
-
Page 3: Stainless Steel
CLEANING VITREOUS E N A M E L Hotplate, burner caps, pan supports. Cloth wrung out in hot soapy water. Stubborn stains. Can be removed with a cream paste approved by the Vitreous Enamel Development Council, liquid cleaner or by rubbing with fine steel wool soap pads. NOTE: The pan supports can also be cleaned in the dishwasher. -
Page 4: Provision For Ventilation
GAS SAFETY (INSTALLATION & USE) REGULATIONS 1. It is the law that all gas appliances are installed by competent persons in accordance with current edition of the above regulations. It is in your interest and that of safety to ensure compliance with the law. -
Page 5: Unpacking The Appliance
UNPACKING THE APPLIANCE Remove all packaging before use and check to make sure that the appliance is in perfect condition. If you have any doubts do not use the appliance and call your supplier. Some parts on the appliance are protected by a plastic film. This protective film must be removed before the appliance is used. -
Page 6: Gas Connection
INSERTING AND FIXING THE HOB Before inserting the hob into the work surface, place the adhesive seal (a) around the underside edge of the hob. It is important to fix this gasket evenly, without gaps or overlapping to prevent liquids from seeping underneath the hob. 1. -
Page 7: Gas Adjustment
GAS ADJUSTMENT... -
Page 8: Electrical Connection
ELECTRICAL CONNECTION This appliance must be connected by a competent person, using fixed wiring via a double pole switched fused spur outlet with a fuse rating of 3amps, and with a contact separation of at least 3mm in all poles. We recommend that the appliance is connected by a qualified electrician who will comply with I.E.E regulations. -
Page 9: Troubleshooting
Auxiliary Triple Flame Rapid Semi rapid Burners 1.0kw 3.0kw 3.3kw 1.75kw Φ pans in inch 9.4-10.2 7.9-8.7 6.3-7.1 4-5.5 TROUBLE SHOOTING Servicing of the hotplates must only be done by an authorized service representative (see back of this booklet) and the hotplate must not be modified. -
Page 10: Correct Disposal Of This Product
All burners cannot be ignited Check to make sure that: ●If the ignition pin & wires are workable, check whether the injector was blocked, then use the needle to clean it if blocked. ●If the ignition pin &wires do not work, it is probably that its interior has fallen off or the pulse has no discharge. - Page 11 About ErP A) Measurement and calculation methods ● The gas hob was CE approval according to the Gas Appliance Directives 2009/142/EC. ● The energy efficiency of this gas hob was tested and measured according to EN 30-2-1-1998+A1-2003+A2-2005. ● The semi-rapid burner and rapid burner were tested separately; the auxiliary burner is not required for test because its nominal heat input is less than 1.16kW.
