Induction Hob
Instruction Manual / Installation Manual
MODEL:
CCI BR 6003
CCI BR 6004
CCI BR 3019 DM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCI BR 6004 and is the answer not in the manual?

Questions and answers

Summary of Contents for CORBERO CCI BR 6004

  • Page 1 Induction Hob Instruction Manual / Installation Manual MODEL: CCI BR 6003 CCI BR 6004 CCI BR 3019 DM...
  • Page 2: Safety Warnings

    Safety Warnings PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory.
  • Page 3 as it could reduce your installation costs. • In order to avoid a hazard, this appliance must be installed according to these instructions for installation. • This appliance is to be properly installed and earthed only by a suitably qualified person. •...
  • Page 4: Health Hazard

    • Switch the cooktop off at the wall before cleaning or maintenance. • Failure to follow this advice may result in electrical shock or death. Health Hazard • This appliance complies with electromagnetic safety standards. Hot Surface Hazard • During use, accessible parts of this appliance will become hot enough to cause burns.
  • Page 5 Important safety instructions • Never leave the appliance unattended when in use. Boil over causes smoking and greasy spillovers that may ignite. • Never use your appliance as a work or storage surface. • Never leave any objects or utensils on the appliance.
  • Page 6 by a qualified technician. • Do not use a steam cleaner to clean your cooktop. • Do not place or drop heavy objects on your cooktop. • Do not stand on your cooktop. • Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.
  • Page 7 reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. • Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Page 8: Product Overview

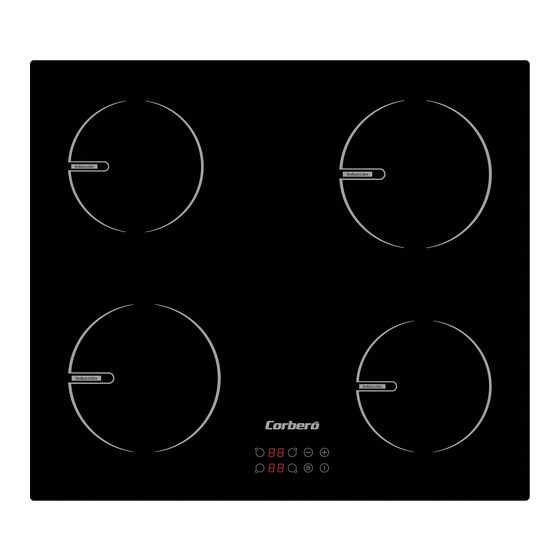

    Manual in order to fully understand how to install correctly and operate it. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. Product Overview Top View CCIBR6003 CCIBR6004 1. max. 1800 W zone 1.
  • Page 9: Control Panel

    Control Panel CCIBR6003 CCIBR6004 1. ON/OFF control CCIBR3019DM 2. Keylock control 3. Minus / Plus button 4. Timer control 5. Heating zone selection controls 6. Boost control A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology.
  • Page 10: Before Using Your New Induction Hob

    Before using your New Induction Hob • Read this guide, taking special note of the ‘Safety Warnings’ section. • Remove any protective film that may still be on your Induction hob. Using the Touch Controls • The controls respond to touch, so you don’t need to apply any pressure. •...
  • Page 11: Using Your Induction Hob

    Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected.
  • Page 12 3. Touching the heating zone selection control, and a indicator next to the key will flash 4. Select a heat setting by touching the “-“ or “+” control. • If you don’t choose a heat setting within 1 minute, the Induction hob will automatically switch off.
  • Page 13: Using The Boost Function

    3. Turn the whole cooktop off by touching the ON/OFF control. 4. Beware of hot surfaces “H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.
  • Page 14: Locking The Controls

    Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the keylock control.
  • Page 15: Using The Timer As A Minute Minder

    Using the Timer You can use the timer in two different ways: • You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. • You can set it to turn one or more cooking zones off after the set time is up. •...
  • Page 16: Setting The Timer To Turn One Or More Cooking Zones Off

    6. When the time is set, it will begin to count down immediately. The display will show the remaining time. 7. Buzzer will bips for 30 seconds and the timer indicator shows “- - “when the setting time finished. Setting the timer to turn one or more cooking zones If the timer is set on one zone: 1.
  • Page 17 5. set the time by touching the ”-“ or ”+” control (e.g.9), now the timer you set is 95 minutes. 6. When the time is set, it will begin to count down immediately. The display will show the remaining time NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.
  • Page 18: Cooking Guidelines

    Cancelled the timer 1. Touching the heating zone selection control that you want to cancel the timer 2. Touching the timer control, the indicator flash 3. Touch the “-” control to set the timer to ”00”, the timer is cancelled Cooking Guidelines Take care when frying as the oil and fat heat up very quickly, particularly if you’re using Power Boost.
  • Page 19: Heat Settings

    3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan. 4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it.
  • Page 20: Care And Cleaning

    Care and Cleaning What? How? Important! Everyday soiling on 1. Switch the power to the • When the power to the cooktop is glass (fingerprints, cooktop off. switched off, there will be no ‘hot marks, stains left by 2. Apply a cooktop cleaner surface’...
  • Page 21: Hints And Tips

    Hints and Tips Problem Possible causes What to do The induction hob No power. Make sure the induction hob is cannot be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area.
  • Page 22: Failure Display And Inspection

    The induction hob or a Technical fault. Please note down the error cooking zone has letters and numbers, switch turned itself off the power to the induction hob unexpectedly, a tone off at the wall, and contact a sounds and an error qualified technician.
  • Page 23: Technical Specification

    Technical Specification Cooking Hob CCIBR6003 CCIBR6004 CCIBR3019DM Cooking Zones 3 Zones 4 Zones 2 Zones Supply Voltage 220-240V~ 220-240V~ 220-240V~ Installed Electric 6200W 6000W 3600W Power Product Size 590×520×58 590×520×58 290×520×58 D×W×H(mm) Building-in 560×490 560×490 270×490 Dimensions A×B (mm) Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.
  • Page 24 Model L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) CCIBR6003 50 mini CCIBR6004 50 mini CCIBR3019DM 50 mini Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the Induction cooker hob is in good work state.
  • Page 25: Before Locating The Fixing Brackets

    Before you install the hob, make sure that • The work surface is square and level, and no structural members interfere with space requirements • The work surface is made of a heat-resistant material • If the hob is installed above an oven, the oven has a built-in cooling fan •...
  • Page 26 Cautions CCIBR6003 CCIBR6004 CCIBR3019 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
  • Page 27: Connecting The Hob To The Mains Power Supply

    2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics 3. The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
  • Page 28 circuit-breaker must be installed with a minimum opening of 3mm between contacts. • The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations. • The cable must not be bent or compressed. •...
